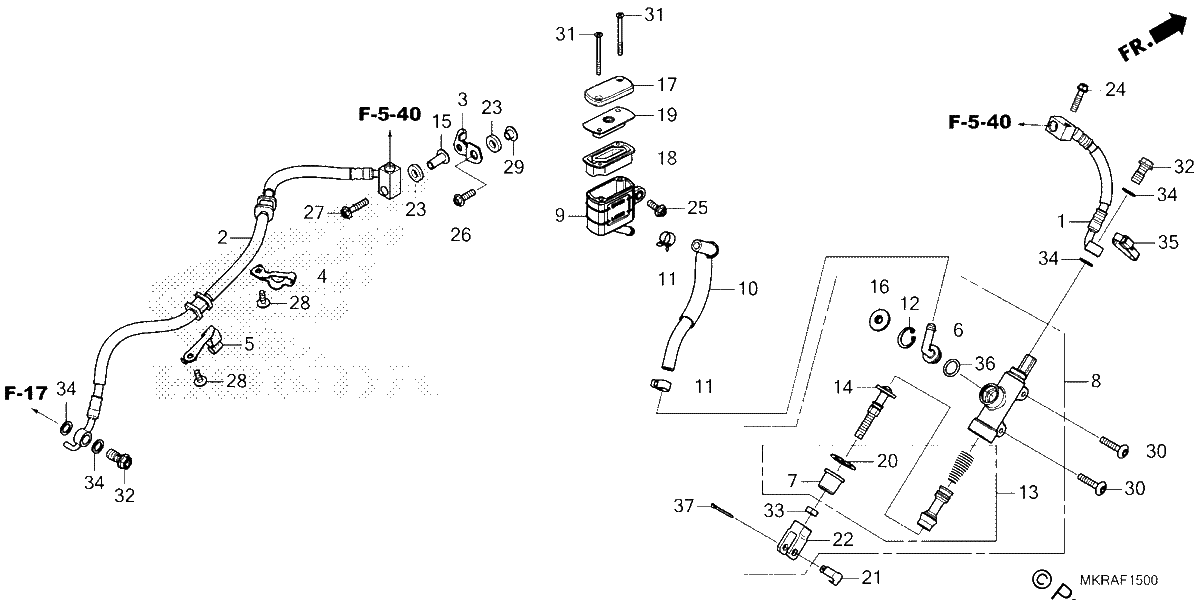

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
HOSE A, Rear BRAKE
$34.44¢17 221
#002
HOSE B, RR. BRAKE
$63.12¢31 562
#003
STAY, Rear BRAKE HOSE
$6.88¢3 439
#004
CLAMP A, Rear BRAKE HOSE
$8.90¢4 451
#005
CLAMP B, Rear BRAKE HOSE
$8.90¢4 451
#006
CONNECTOR, MASTER CYLINDER
$10.72¢5 359
#007
BOOT
$10.80¢5 399
#008
MASTER CYLINDER SUB-Assembly., Rear.
$179.72¢89 861
#009
CUP, OIL
$26.54¢13 271
#010
HOSE, Rear MASTER CYLINDER
$12.18¢6 089
#011
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#012
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
#013
PISTON SET, Rear MASTER CYLINDER
$74.57¢37 283
#014
ROD, PUSH
$22.32¢11 161
#015
COLLAR, FR. BRAKE HOSE
$8.91¢4 456
#016
COVER, DUST
$4.63¢2 317
#017
CAP, MASTER CYLINDER
$19.52¢9 758
#018
DIAPHRAGM
$8.13¢4 065
#019
PLATE, DIAPHRAGM
$6.39¢3 197
#020
CIRCLIP
$2.30¢1 150
#021
PIN, BRAKE ROD
$15.71¢7 855
#022
JOINT, BRAKE ROD
$15.55¢7 774
#023
RUBBER, SEAT HINGE
$3.16¢1 581
#024
BOLT, FLANGE (6X25)
$2.68¢1 340
#025
BOLT, FLANGE (6X18)
$2.64¢1 322
#026
BOLT, FLANGE (6X20)
$2.75¢1 374
#027
BOLT, FLANGE (6X28)
$2.59¢1 294
#028
SCREW, PAN (5X15)
$3.21¢1 604
#029
COLLAR, COWL SETTING (LOWER)
$4.91¢2 455
#030
SCREW, PAN (6X30)
$1.09¢546
#031
SCREW, FLAT (4X50)
$2.60¢1 299
#032
BOLT, OIL (10X20)
$6.60¢3 301
#033
NUT, HEX. (8MM)
$3.89¢1 943
#034
WASHER, OIL BOLT
$4.46¢2 231
#035
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
#036
O-RING (14.8X2.4)
$3.04¢1 518
#037
PIN, SPLIT (2.0X15)
$1.23¢615
