RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

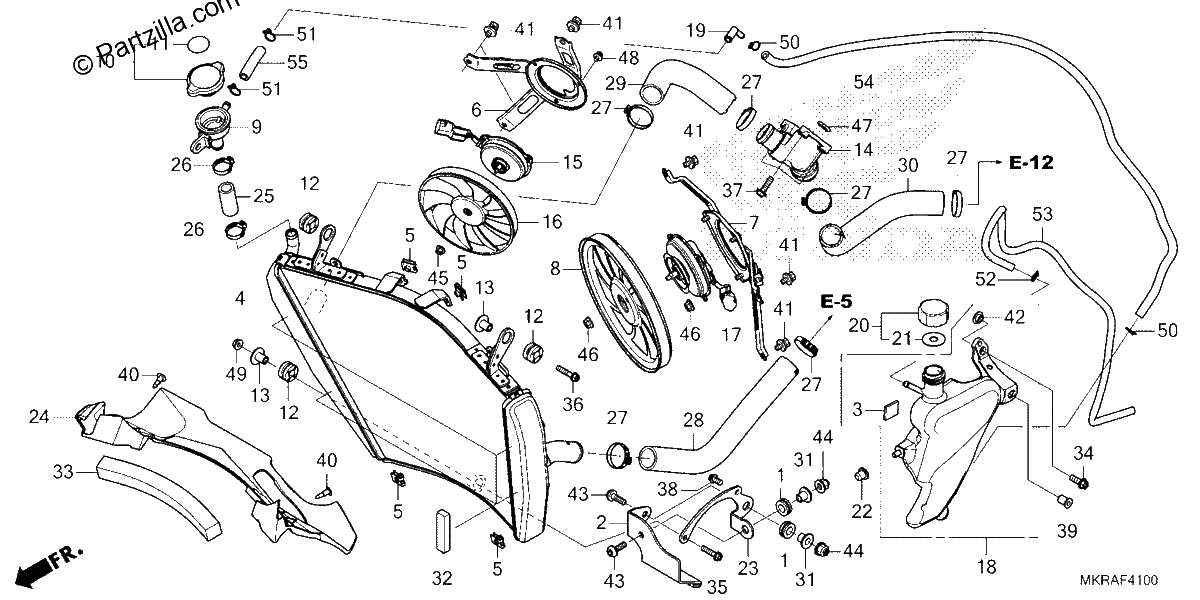

Diagrama de RADIATOR

Repuestos

#001
15612-MKR-DH0
RUBBER, HEAT GUARD MOUNTING
$5.34¢2 668
1
#002
15653-MKR-D80
GUARD, OIL COOLER PIPE HEAT
$40.72¢20 361
1
#003
17525-GBC-300
RUBBER, FUEL TANK
$2.32¢1 162
1
#004
19010-MKR-D11
RADIATOR
$1187.42¢593 710
1
#005
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#006
19015-MKR-D11
SHROUD, R.
$43.79¢21 896
1
#007
19016-MKR-D11
SHROUD, L.
$60.78¢30 389
1
#008
19020-MFA-D01
FAN, COOLING
$48.22¢24 110
1
#009
19035-KVZ-631
FILLER, NECK
$32.96¢16 479
1
#010
19037-GEE-710
CAP, RADIATOR
$32.35¢16 175
1
#011
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#012
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$3.69¢1 846
1
#013
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$5.73¢2 864
1
#014
19070-MKR-D10
JOINT, WATER BYPASS
$72.94¢36 472
1
#015
19080-MKR-D61
MOTOR Assembly., FAN
$221.19¢110 595
1
#016
19090-MKR-D11
FAN, COOLING
$43.47¢21 735
1
#017
19090-MKR-D61
MOTOR Assembly., FAN
$300.64¢150 322
1
#018
19101-MKR-DH0
TANK, RADIATOR RESERVE
$36.77¢18 383
1
#019
19103-ML7-000
JOINT, TUBE
$6.95¢3 473
1
#020
19105-MG8-000
CAP ASSY., RESERVE TANK
$13.54¢6 768
1
#021
19107-MG8-000
GASKET, RESERVE TANK
$5.46¢2 731
1
#022
19113-MB1-870
RUBBER, RADIATOR MOUNTING
$3.86¢1 932
1
#023
19113-MKR-DH0
STAY, RADIATOR (LOWER)
$9.56¢4 778
1
#024
19120-MKR-D10
COVER, RADIATOR (UPPER)
$28.60¢14 300
1
#025
19504-MKR-D10
HOSE, FILLER NECK
$6.58¢3 289
1
#026
19511-MKF-D41
CLAMP, HOSE (D19)
$11.33¢5 664
1
#027
19514-MKF-D41
CLAMP, HOSE (D29.8)
$11.03¢5 514
1
#028
19551-MKR-D10
HOSE, THERMOSTAT
$29.28¢14 640
1
#029
19561-MKR-D10
HOSE, RADIATOR
$27.68¢13 840
1
#030
19571-MKR-D10
HOSE, WATER PUMP
$38.48¢19 240
1
#031
33614-MEC-650
COLLAR C, RR. TURN SIGNAL
$3.04¢1 518
1
#032
64213-MEJ-J00
MAT, Front CENTER COWL
$1.46¢730
1
#033
83155-HP6-A00
SEAL, FUEL TANK
$8.08¢4 042
1
#034
90020-GHB-640
BOLT, FLANGE (6X16)
$2.68¢1 340
1
#035
90020-GHB-680
BOLT, FLANGE (6X25)
$2.68¢1 340
1
#036
90020-GHB-690
BOLT, FLANGE (6X28)
$2.75¢1 374
1
#037
90027-GHB-670
BOLT, FLANGE (6X22)
$2.66¢1 328
1
#038
90030-GHB-640
BOLT, FLANGE (6X16)
$2.75¢1 374
1
#039
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#040
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#041
90120-GHB-601
BOLT-WASHER (6X12)
$2.28¢1 138
1
#042
90127-KF0-770
COLLAR (6X4)
$3.82¢1 909
1
#043
90132-MFJ-D00
BOLT, SPECIAL (6X18) (SUS)
$2.74¢1 368
1
#044
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
1
#045
90315-MFL-003
NUT, FLANGE (3MM)
$2.75¢1 374
1
#046
90315-MK3-003
NUT, SERRATE (5MM)
$2.75¢1 374
1
#047
91303-MKR-D11
O-RING (19X2)
$2.39¢1 196
1
#048
93893-04008-07
SCREW-WASHER (4X8)
$0.86¢431
1
#049
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#050
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#051
95002-02120
CLIP, TUBE (B12)
$2.20¢1 098
1
#052
95002-50000
CLIP, TUBE (C9)
$1.41¢707
1
#053
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X300)
$22.44¢11 218
1
#054
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#055
95005-75001-20M
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X500)
$24.14¢12 069
1
