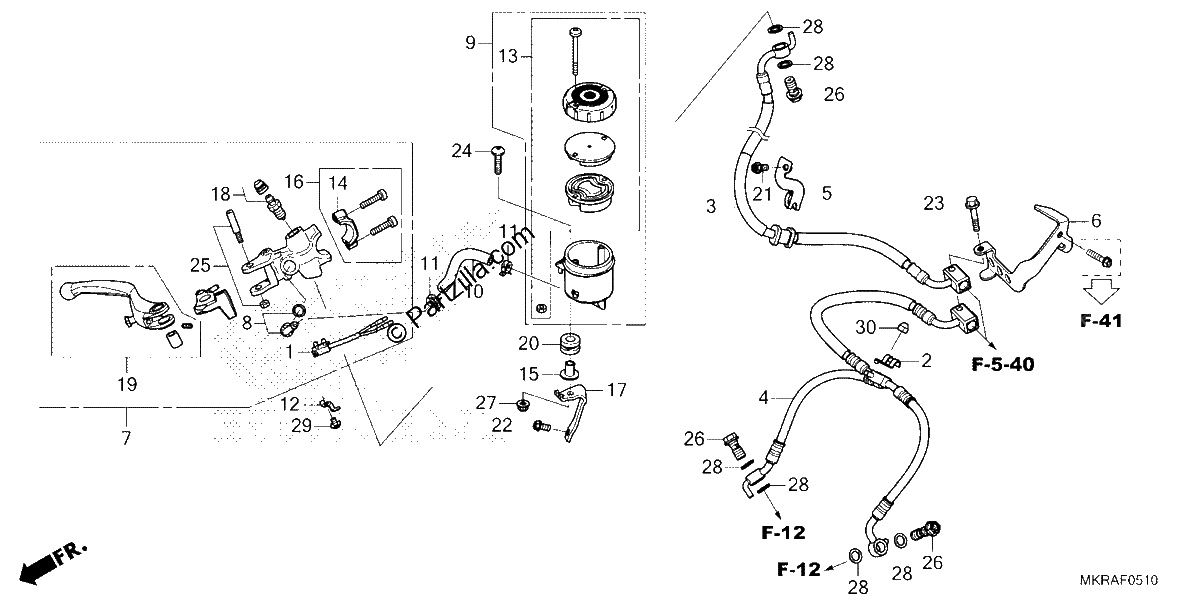

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH ASSY., FR. STOP
$31.79¢15 893
#002
CLAMP, SENSOR WIRE
$4.57¢2 283
#003
HOSE A, Front BRAKE
$58.01¢29 003
#004
HOSE D, Front BRAKE
$100.99¢50 496
#005
CLAMP A, Front BRAKE HOSE
$8.46¢4 232
#006
STAY A, FR. BRAKE HOSE
$22.59¢11 293
#007
MASTER CYLINDER Assembly., Front. (BREMBO)
$673.98¢336 990
#008
CONNECTOR ASSY.
$53.08¢26 542
#009
CUP Assembly., Front BRAKE MASTER CYLINDER OIL
$73.92¢36 961
#010
HOSE, Front BRAKE MASTER CYLINDER
$13.31¢6 653
#011
CLAMP, MASTER CYLINDER HOSE
$4.34¢2 168
#012
HOLDER, FR. STOP SWITCH
$2.74¢1 368
#013
CAP ASSY., OIL CUP
$71.39¢35 696
#014
HOLDER, FR. MASTER CYLINDER
$36.35¢18 176
#015
COLLAR (6.3X13)
$5.01¢2 507
#016
CLAMP SET, FR. BRAKE
$39.57¢19 786
#017
STAY, Front MASTER CYLINDER
$11.27¢5 635
#018
SCREW ASSY., BLEEDER
$8.73¢4 364
#019
LEVER SET, FR. BRAKE
$158.31¢79 155
#020
RUBBER, TAILLIGHT MOUNTING
$5.73¢2 864
#021
BOLT, FLANGE (6X12)
$2.64¢1 322
#022
BOLT, FLANGE (6X14)
$2.64¢1 322
#023
BOLT, FLANGE (6X28)
$2.64¢1 322
#024
SCREW, PAN (6X28)
$3.60¢1 800
#025
BOLT SET, HANDLE LEVER
$12.06¢6 032
#026
BOLT, OIL (10X20)
$6.60¢3 301
#027
NUT, U (6MM)
$7.72¢3 858
#028
WASHER, OIL BOLT
$4.46¢2 231
#029
SCREW-WASHER (4X6)
$1.36¢678
#030
NUT, CAP (6MM)
$1.83¢914
