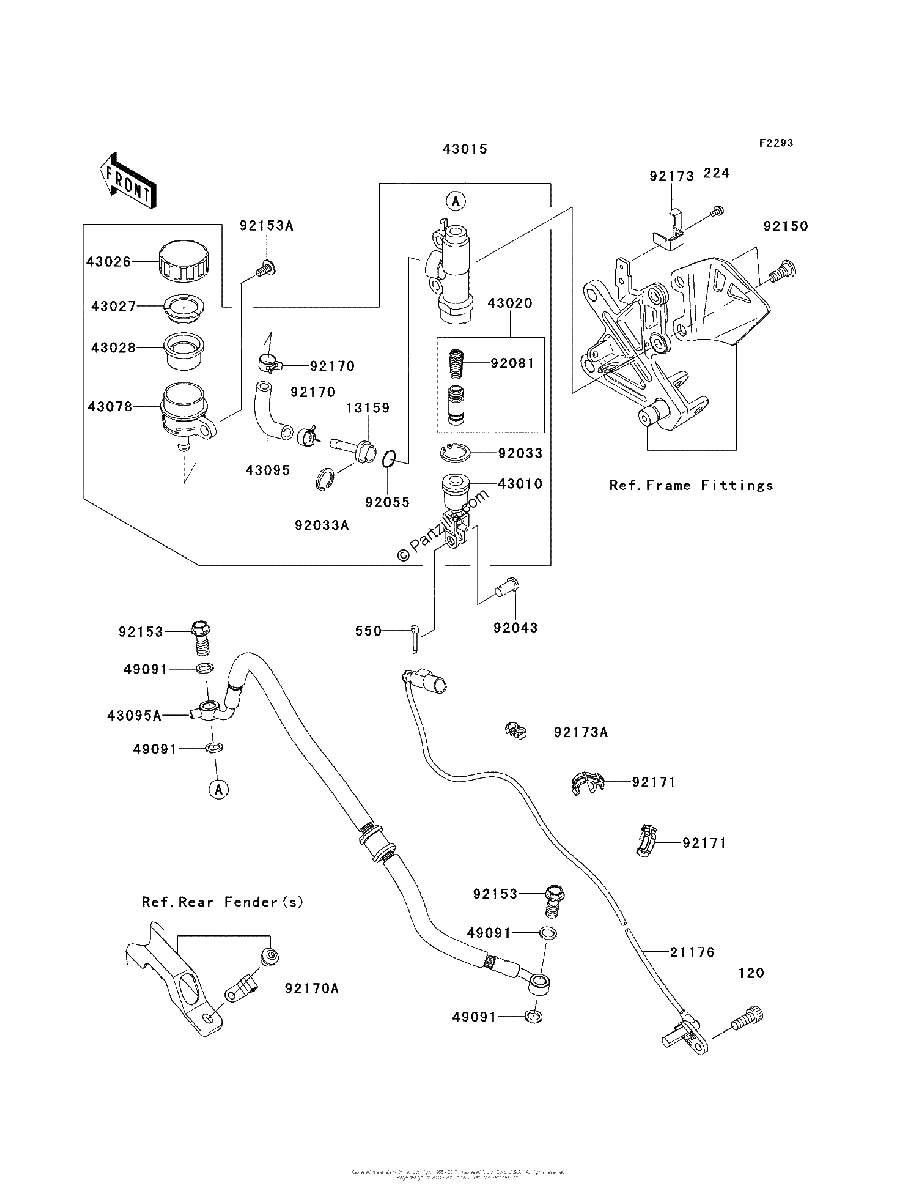

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#120
BOLT-SOCKET,8X20
$4.41¢2 206
#224
SCREW-PAN-WP-CROS,4X8
$0.89¢444
#550
PIN COTTER,2.0X15
$1.17¢587
#13159
CONNECTOR
$10.36¢5 181
#21176
SENSOR,RR WHEEL
$150.16¢75 081
#43010
ROD Assembly BRAKE
$35.21¢17 606
#43015
CYLINDER Assembly MASTER,Rear
$297.11¢148 556
#43020
PISTON-COMP-BRAKE
$74.31¢37 156
#43026
CAP-BRAKE
$45.41¢22 706
#43027
PLATE DIAPHRAGM
$5.81¢2 906
#43028
DIAPHRAGM
$20.89¢10 444
#43078
RESERVOIR
$36.49¢18 244
#43095A
HOSE-BRAKE,RR,512MM
$82.33¢41 163
#43095
HOSE BRAKE,RESERVOIR
$41.75¢20 875
#49091
WASHER-SEAL,10.1X14.5X1.5
$2.04¢1 019
#92033A
RING-SNAP,20.5MM
$4.92¢2 463
#92033
RING SNAP,20.9X24.6X1.2
$7.74¢3 869
#92043
PIN,8X17
$3.89¢1 944
#92055
RING-O,14.8X2.4
No Disponible
#92081
SPRING,MASTER CYLINDER
$13.69¢6 844
#92150
BOLT,SOCKET,8X25
$4.96¢2 481
#92153A
BOLT,SOCKET,6X12
$1.35¢675
#92153
BOLT,OIL,L=23
$5.41¢2 706
#92170A
CLAMP
$5.24¢2 619
#92170
CLAMP,HOSE
$4.96¢2 481
#92171
CLAMP,BRAKE HOSE
$4.84¢2 419
#92173
CLAMP
$4.96¢2 481
#92173A
CLAMP,PIPE
$2.88¢1 438
