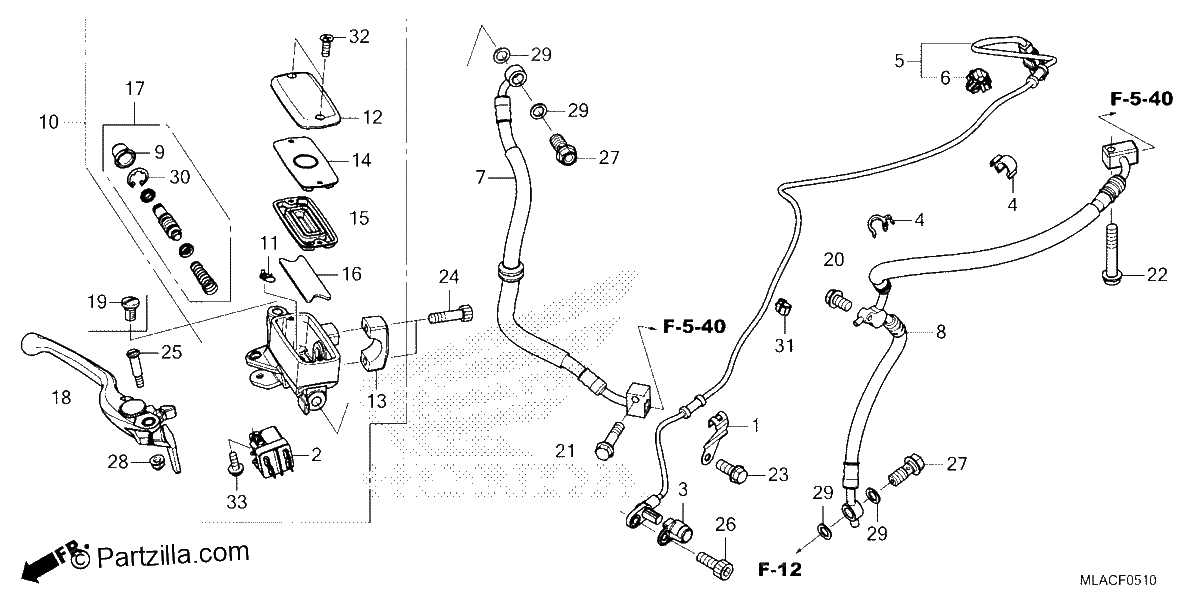

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
STAY, Front SPEED SENSOR WIRE
$4.43¢2 214
#002
SWITCH ASSY., FR. STOP & CRUISE
$68.91¢34 454
#003
GUARD, ABS SENSOR
$12.47¢6 233
#004
CLAMP, ABS WIRE (D12)
$3.22¢1 610
#005
SENSOR, Front WHEEL SPEED
$70.70¢35 351
#006
CLIP, CONNECTOR (DARK BLUE)
$3.45¢1 725
#007
HOSE A, Front BRAKE
$45.66¢22 828
#008
HOSE D, Front BRAKE
$100.16¢50 082
#009
BOOT
$13.10¢6 549
#010
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$290.54¢145 268
#011
PROTECTOR
$4.78¢2 392
#012
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#013
HOLDER, MASTER CYLINDER (NISSIN)
$22.13¢11 063
#014
PLATE, DIAPHRAGM
$11.37¢5 687
#015
DIAPHRAGM
$16.26¢8 131
#016
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.01¢2 507
#017
MASTER CYLINDER SET
$42.69¢21 344
#018
LEVER Assembly., Right HANDLE
$53.42¢26 709
#019
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
#019
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
#020
BOLT, FLANGE (6X18)
$2.56¢1 282
#021
BOLT, FLANGE (6X25)
$2.75¢1 374
#022
BOLT, FLANGE (6X32)
$2.94¢1 472
#023
BOLT, FLANGE (6X12)
$2.77¢1 386
#024
BOLT, SOCKET (6X22)
$1.17¢586
#025
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#026
BOLT, FLANGE SOCKET (6X16)
$3.13¢1 564
#027
BOLT, OIL (10X22)
$8.18¢4 088
#028
NUT, CAP (6MM)
$2.54¢1 271
#029
WASHER, OIL BOLT
$4.46¢2 231
#030
CIRCLIP
$2.85¢1 426
#031
CLIP, CABLE (10MM)
$2.62¢1 311
#032
SCREW, FLAT (4X12)
$1.07¢535
#032
SCREW, FLAT (4X12)
$1.07¢535
#033
SCREW-WASHER (4X12)
$1.59¢793
#033
SCREW-WASHER (4X12)
$1.59¢793
