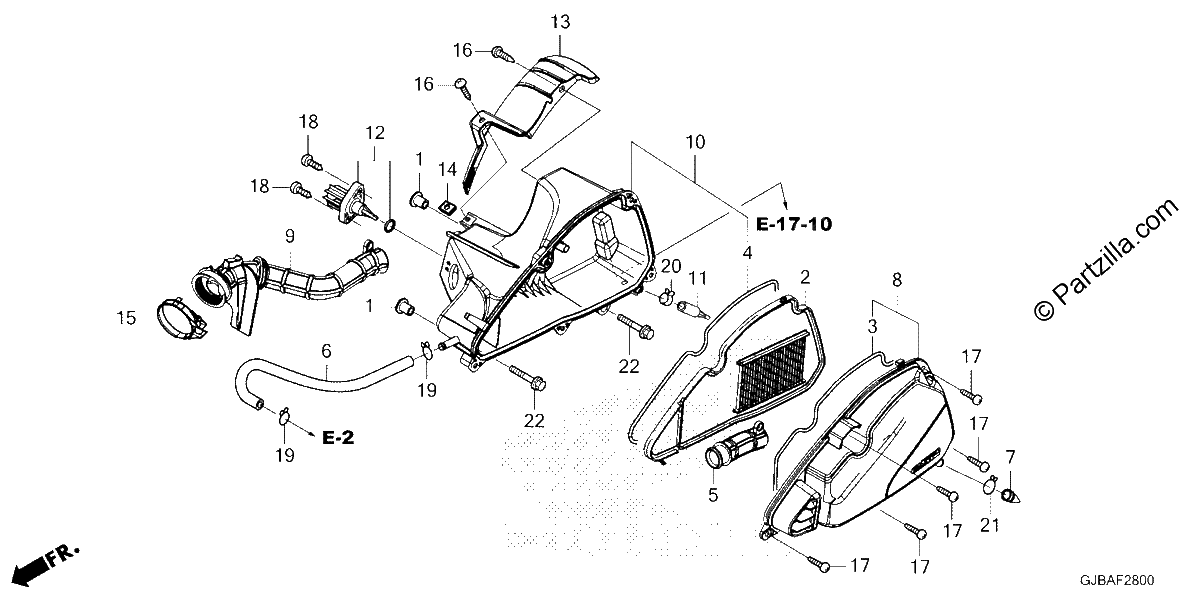

AIR CLEANER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COLLAR, AIR CLEANER SETTING
$3.65¢1 825
#002
ELEMENT, AIR CLEANER
$10.15¢5 075
#003
SEAL, AIR CLEANER COVER
$1.56¢781
#004
SEAL, AIR CLEANER HOUSING
$1.66¢831
#005
DUCT, AIR CLEANER
$2.82¢1 412
#006
TUBE, BREATHER
$6.72¢3 363
#007
TUBE, AIR CLEANER DRAIN
$3.33¢1 663
#008
COVER SUB-Assembly., AIR CLEANER
$9.13¢4 563
#009
TUBE, AIR CLEANER CONNECTING
$10.82¢5 413
#010
CASE SUB-Assembly., AIR CLEANER
$11.03¢5 513
#011
TUBE, DRAIN
$1.82¢913
#012
SENSOR ASSY., AIR TEMPERATURE
$51.75¢25 875
#013
FENDER, Rear. (INNER)
$2.27¢1 138
#014
NUT, SPRING (5MM)
$3.65¢1 825
#014
NUT, SPRING (5MM)
$3.65¢1 825
#015
BAND, AIR CLEANER CONNECTING TUBE (42)
$1.82¢913
#016
SCREW, TAPPING (5X16)
$1.16¢581
#017
SCREW, TAPPING (5X20)
$0.86¢431
#018
SCREW, TAPPING (5X20)
$2.21¢1 106
#019
CLIP, TUBE (B12.5)
$1.47¢737
#020
CLAMP, TUBE (D12)
$3.01¢1 506
#021
CLIP, TUBE (C12)
$0.60¢300
#022
BOLT, FLANGE (6X30)
$2.41¢1 206
