REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

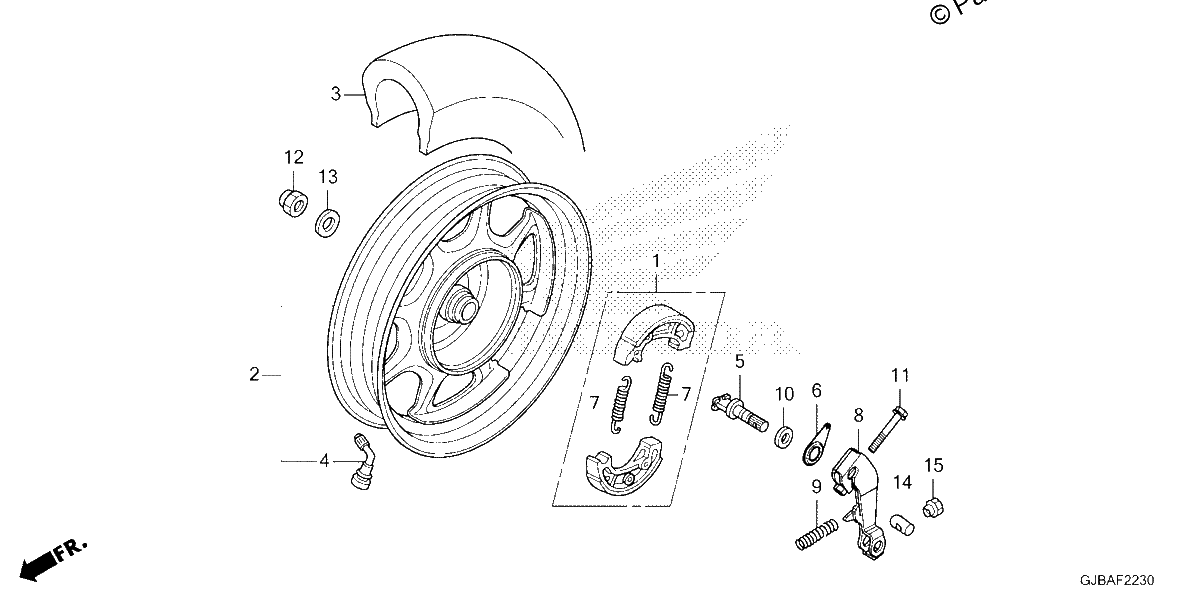

Diagrama de REAR WHEEL

Repuestos

#001
06430-GFH-750
SHOE SET, BRAKE
$30.34¢15 168
1
#002
42650-GJA-J01ZA
WHEEL SUB-Assembly., Rear. NH1 (BLACK)
$148.58¢74 290
1
#003
42711-GJA-J01
TIRE (80/100-10 46J) (CST)
$74.43¢37 214
1
#004
42753-K12-911
VALVE, RIM (CST)
$3.16¢1 581
1
#005
43141-GJA-J00
CAM, Rear BRAKE
$7.69¢3 847
1
#006
43145-GGZ-J00
INDICATOR, Rear BRAKE
$0.64¢322
1
#007
43151-110-000
SPRING, BRAKE SHOE
$3.36¢1 679
1
#007
43151-GFC-900
SPRING, BRAKE SHOE
$3.36¢1 679
1
#008
43410-GGZ-J00
ARM, Rear BRAKE
$3.19¢1 593
1
#009
43472-GGZ-J00
SPRING, Rear BRAKE ARM
$0.36¢178
1
#010
45134-250-000
DUST SEAL, BRAKE CAM
$3.36¢1 679
1
#011
90102-GGZ-J00
BOLT, FLANGE (6X40)
$0.71¢357
1
#012
90305-197-013
NUT, U (14MM)
$6.84¢3 421
1
#013
90501-GAH-000
WASHER (26X14X2.8)
$7.41¢3 703
1
#014
95015-31001
JOINT A, BRAKE ARM
$1.91¢954
1
#015
95015-41000
NUT A, BRAKE ROD ADJUSTING
$1.66¢828
1
