FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

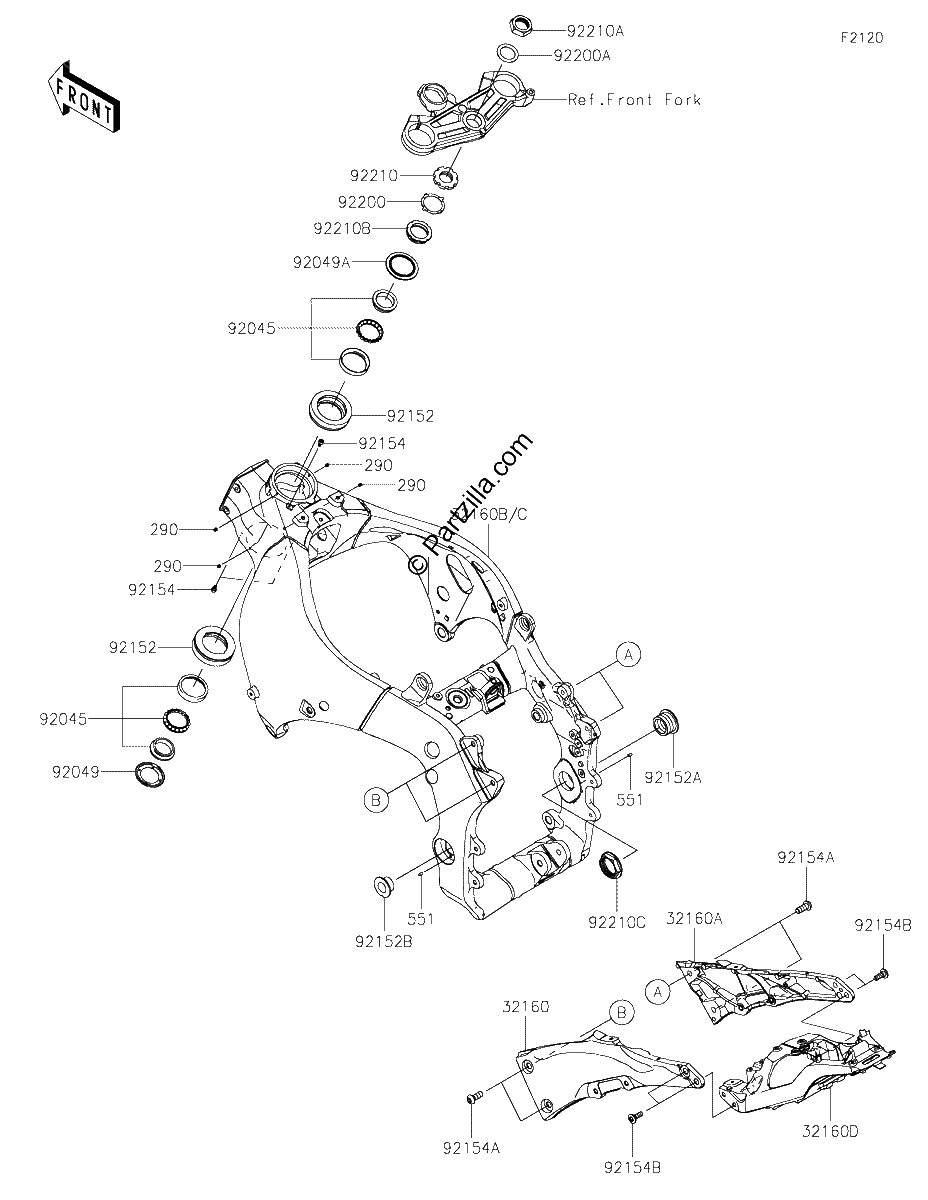

Diagrama de FRAME

Repuestos

#290
290Q0506
SCREW SET SOCKET,5X6
$3.54¢1 771
1
#551
551R0408
PIN DOWEL
$4.91¢2 455
1
#32160
32160-0885-18R
FRAME COMP,Rear,Left Hand,F S BLACK
$286.12¢143 060
1
#32160D
32160-1895
FRAME-COMP,RR
$233.97¢116 984
1
#32160B
32160-1872-18R
FRAME COMP,MAIN,F S BLACK
$2656.30¢1 328 152
1
#32160B
32160-1872
FRAME-COMP,MAIN
$2656.30¢1 328 152
1
#32160A
32160-0886-18R
FRAME COMP,Rear,Right Hand,F S BLACK
$286.12¢143 060
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$47.85¢23 926
1
#92049A
92049-0742
SEAL-OIL,43X55.5X8.6
$18.07¢9 033
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$15.72¢7 860
1
#92152B
92152-2812
COLLAR,PIVOT,LH
$48.85¢24 426
1
#92152A
92152-2811
COLLAR,PIVOT,RH
$78.86¢39 428
1
#92152
92152-2165
COLLAR,55X77X18.5
$132.92¢66 459
1
#92154B
92154-1901
BOLT,SOCKET,8X23
$3.29¢1 644
1
#92154A
92154-1900
BOLT,SOCKET,10X25
$4.53¢2 266
1
#92154
92154-1642
BOLT,SOCKET,5X10
$1.43¢713
1
#92200A
92200-0595
WASHER,28.5X40X1.6
$3.96¢1 978
1
#92200
92200-0036
WASHER
$4.57¢2 283
1
#92210B
92210-0823
NUT,35MM
$24.59¢12 293
1
#92210A
92210-0209
NUT,28MM
$18.73¢9 367
1
#92210
92210-0095
NUT,35MM
$16.50¢8 251
1
#92210C
92210-1441
NUT,38MM
$55.63¢27 813
1
