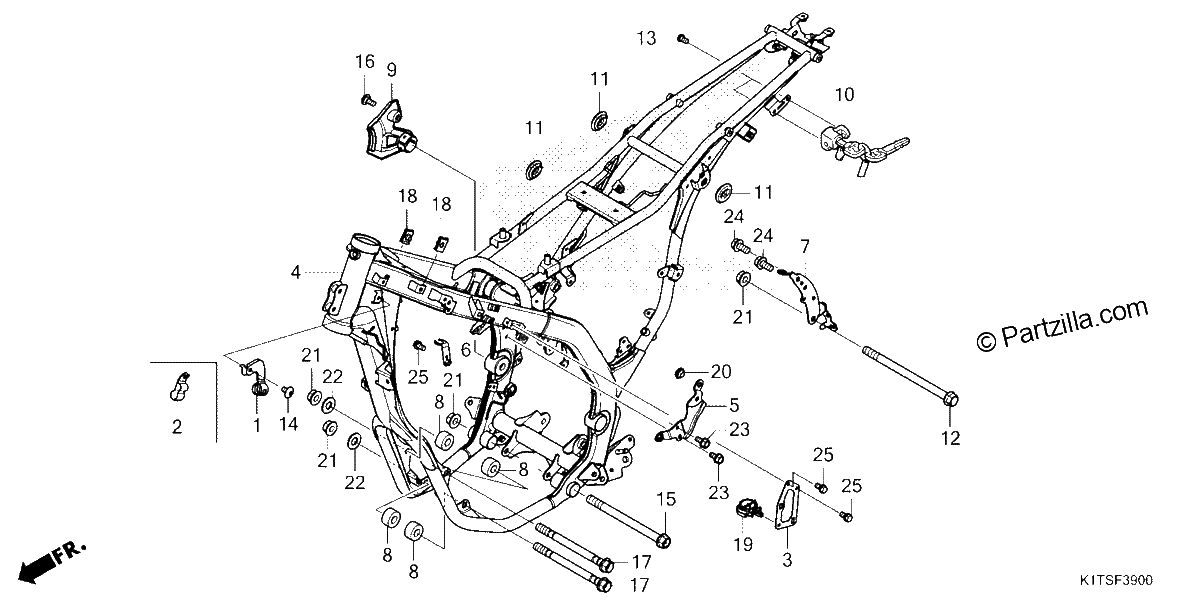

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, HARNESS
$4.20¢2 100
#002
CLAMP, L HARNESS
$8.07¢4 037
#003
STAY, TURN SIGNAL SWITCH CONNECTOR
$3.98¢1 988
#004
FRAME NH303M (MAT AXIS GRAY METALLIC)
$534.39¢267 194
#005
STAY, FR. MUFFLER
$13.81¢6 906
#006
STAY, STOP SWITCH
$1.79¢894
#007
PLATE, R. ENGINE HANGER
$36.70¢18 350
#008
COLLAR, ENGINE HANGER
$2.41¢1 206
#009
GUARD, HEEL
$5.04¢2 519
#010
HOLDER ASSY., HELMET
$51.76¢25 881
#011
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
#012
BOLT, FLANGE (10X150)
$4.24¢2 119
#013
BOLT, ONE-WAY (6X10)
$3.11¢1 556
#014
SCREW, PAN (6X10)
$1.63¢813
#015
BOLT, FLANGE (10X130)
$11.15¢5 575
#016
SCREW, PAN (6X14)
$1.64¢819
#017
BOLT, FLANGE (10X120)
$3.46¢1 731
#018
NUT, CLIP (6MM)
$1.64¢819
#019
CLIP
$2.24¢1 119
#020
RUBBER, STOPPER
$17.11¢8 556
#021
NUT, FLANGE (10MM)
$1.90¢950
#022
WASHER, PLAIN (10MM)
$2.41¢1 206
#023
BOLT, FLANGE (6X12)
$2.09¢1 044
#024
BOLT, FLANGE (8X16)
$2.31¢1 156
#025
BOLT, FLANGE (6X10)
$2.09¢1 044
