CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

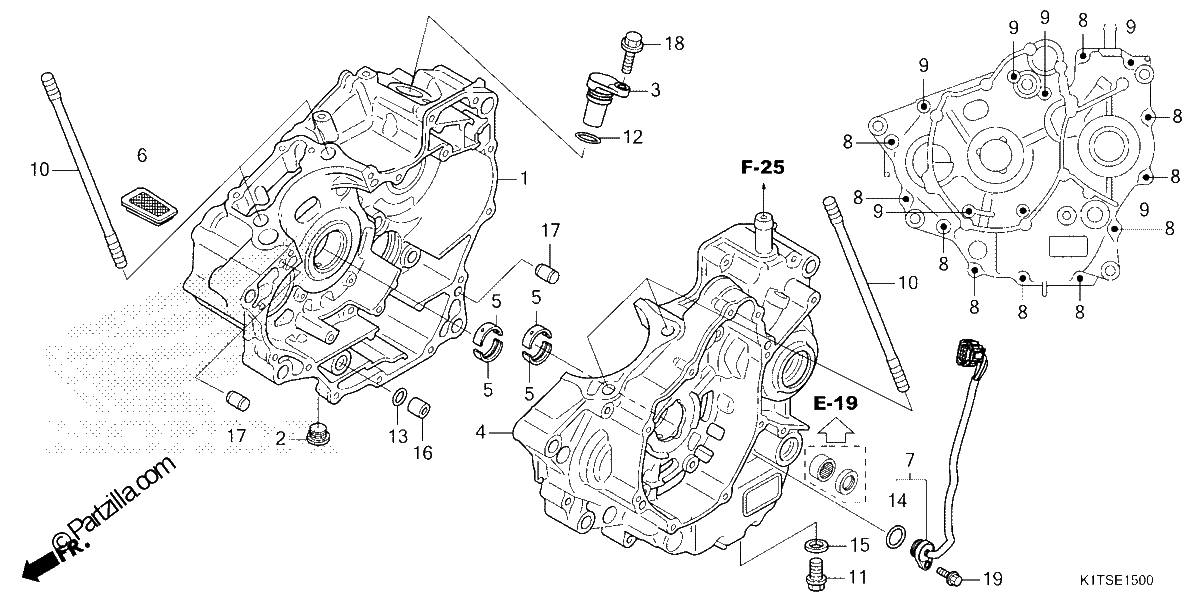

Diagrama de CRANKCASE

Repuestos

#001
11100-K1T-EB0
CRANKCASE, R.
$119.31¢59 656
1
#002
11107-KYJ-900
BOLT, SEALING (16MM)
$3.74¢1 869
1
#003
11109-K0A-DB0
CAP, CRANKCASE
$2.75¢1 374
1
#004
11200-K1T-EB0
CRANKCASE, L.
$175.98¢87 992
1
#005
13312-K33-D01
BEARING A, CRANKSHAFT (BLUE)
$12.58¢6 290
1
#005
13313-K33-D01
BEARING B, CRANKSHAFT (BLACK)
$12.58¢6 290
1
#005
13314-K33-D01
BEARING C, CRANKSHAFT (BROWN)
$12.58¢6 290
1
#005
13315-K33-305
BEARING D, CRANKSHAFT (OVER SIZE) (RED)
$14.80¢7 400
1
#005
13316-K33-305
BEARING E, CRANKSHAFT (OVER SIZE) (GREEN)
$14.80¢7 400
1
#005
13317-K33-305
BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW)
$14.80¢7 400
1
#005
13318-K33-305
BEARING G, CRANKSHAFT (OVER SIZE) (PINK)
$14.95¢7 475
1
#006
15421-KYJ-900
SCREEN, OIL FILTER
$3.36¢1 679
1
#007
35759-K1T-EB1
CONTACT ASSY., CHANGE SWITCH
$13.16¢6 578
1
#008
90014-KYJ-900
BOLT, FLANGE (6X40)
$0.74¢368
1
#009
90016-KYJ-900
BOLT, FLANGE (6X70) (NSHF)
$1.02¢512
1
#010
90032-K33-D00
BOLT, STUD (10X178)
$4.15¢2 076
1
#011
90061-K0A-DB0
BOLT, DRAIN PLUG (12MM)
$0.89¢443
1
#012
91301-K0A-DB0
O-RING (17.8X2.4)
$0.60¢299
1
#013
91301-KYJ-710
O-RING (11.8X1.9)
$0.15¢75
1
#013
91301-KYJ-901
O-RING (11.8X1.9)
$0.53¢265
1
#014
91305-K0N-D00
O-RING (19.4X2.3)
$0.38¢190
1
#015
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.45¢724
1
#016
94301-12160
PIN A, DOWEL (12X16)
$2.69¢1 346
1
#017
94302-08140
PIN B, DOWEL (8X14)
$2.53¢1 265
1
#018
95701-06020-00
BOLT, FLANGE (6X20)
$2.09¢1 047
1
#019
95702-06020-08
BOLT, FLANGE (6X20)
$1.18¢592
1
