LEFT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

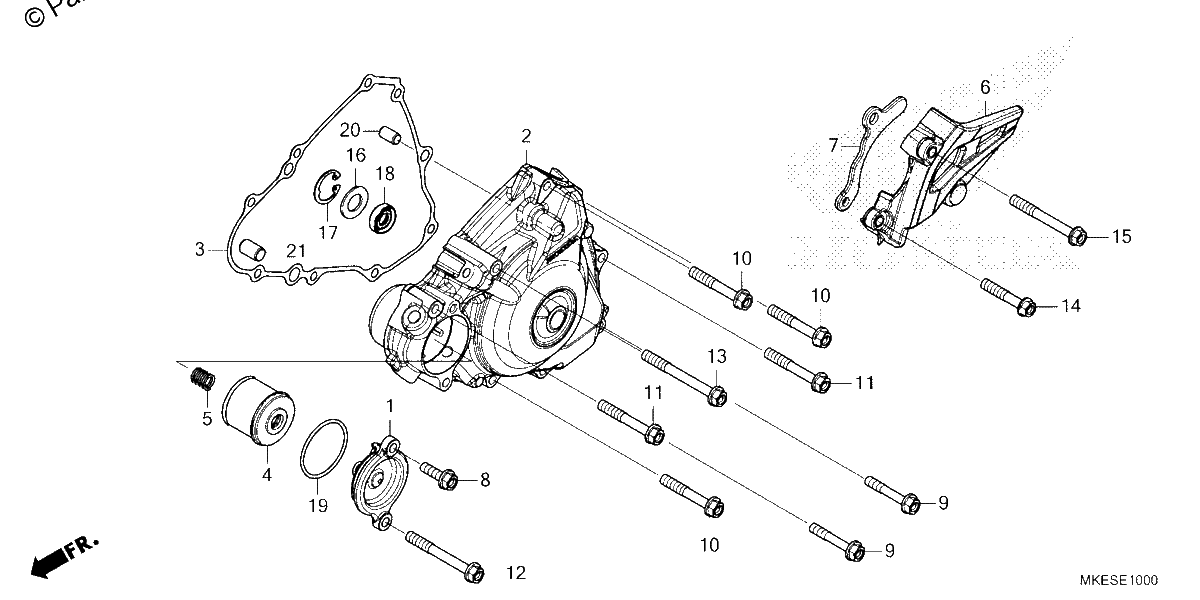

Diagrama de LEFT CRANKCASE COVER

Repuestos

#001
11333-MKE-A00
COVER, OIL FILTER
$48.27¢24 138
1
#002
11340-MKE-AF0
COVER, L. CRANKCASE
$291.70¢145 850
1
#003
11395-MKE-A01
GASKET, L. COVER
$22.00¢11 000
1
#004
15412-MEN-671
FILTER, ENGINE OIL
$9.11¢4 556
1
#005
15414-MEB-670
SPRING, OIL FILTER
$3.38¢1 688
1
#006
23810-MKE-AF0
COVER, DRIVE SPROCKET
$26.64¢13 319
1
#007
23812-MKE-AF0
GUIDE, DRIVE CHAIN
$14.63¢7 313
1
#008
90020-GHB-650
BOLT, FLANGE (6X18)
$2.99¢1 494
1
#009
90020-GHB-680
BOLT, FLANGE (6X25)
$2.91¢1 456
1
#010
90020-GHB-720
BOLT, FLANGE (6X35)
$3.20¢1 600
1
#011
90020-GHB-740
BOLT, FLANGE (6X40)
$3.43¢1 713
1
#012
90020-GHB-760
BOLT, FLANGE (6X50)
$3.65¢1 825
1
#013
90020-GHB-770
BOLT, FLANGE (6X55)
$3.84¢1 919
1
#014
90021-GHB-680
BOLT, FLANGE (6X25)
$2.91¢1 456
1
#015
90021-GHB-760
BOLT, FLANGE (6X50)
$3.94¢1 969
1
#016
90401-MEY-670
WASHER (13X24X1.6)
$2.54¢1 269
1
#017
90602-MEB-670
CIRCLIP, SPECIAL INNER (24MM)
$3.71¢1 856
1
#018
91204-MEN-A31
OIL SEAL (10X21X5)
$4.68¢2 338
1
#019
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$6.50¢3 250
1
#020
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#021
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
