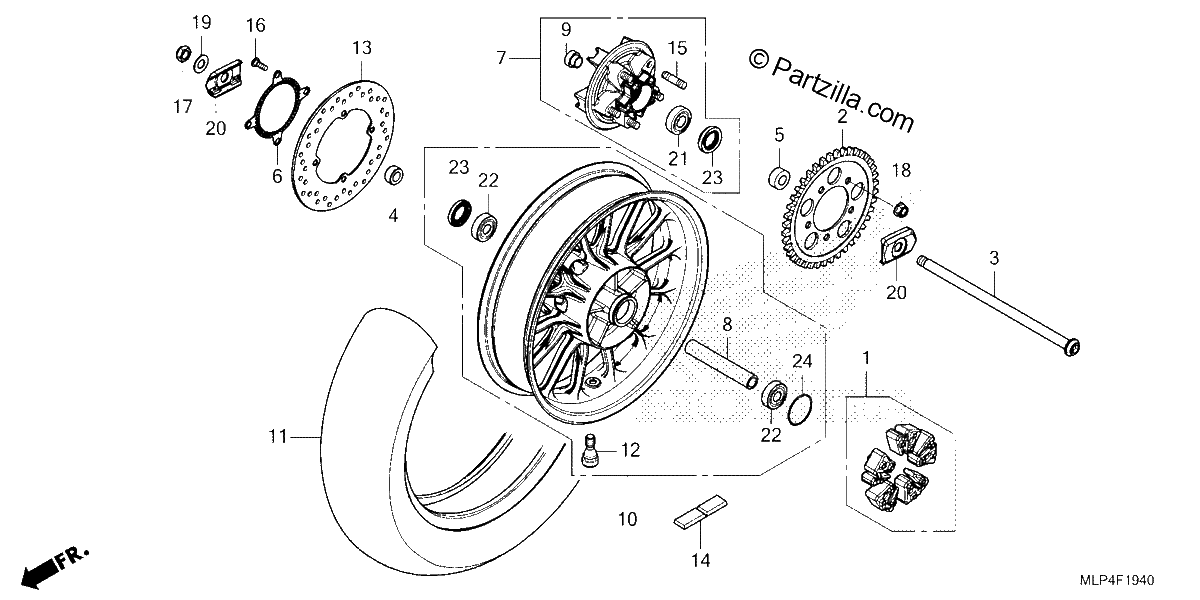

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$67.19¢33 594
#002
SPROCKET, FINAL DRIVEN (41T)
$53.11¢26 556
#003
AXLE, Rear WHEEL
$21.31¢10 656
#004
COLLAR, Rear BRAKE SIDE
$17.01¢8 506
#005
COLLAR, L. RR. WHEEL SIDE
$14.18¢7 088
#006
RING, Rear PULSER
$20.99¢10 494
#007
FLANGE SUB-Assembly., Rear FINAL DRIVEN
$240.41¢120 206
#008
COLLAR, Rear AXLE DISTANCE
$14.78¢7 388
#009
COLLAR B, RR. AXLE DISTANCE
$6.51¢3 256
#010
WHEEL SUB-ASSY., RR.
$353.18¢176 588
#011
TIRE, Rear. (DUNLOP) (150/70 R17 M/C 69H)
$114.47¢57 238
#012
VALVE, RIM (IRC)
$10.15¢5 075
#013
DISK, Rear BRAKE
$98.79¢49 394
#014
WEIGHT, BALANCE (10G)
No Disponible
#014
WEIGHT, BALANCE (15G)
$5.31¢2 656
#014
WEIGHT, BALANCE (20G)
$5.22¢2 613
#015
BOLT, STUD (12X25)
$4.86¢2 431
#016
BOLT, BRAKE DISK (8X24)
$2.46¢1 231
#017
NUT, U (16MM)
$3.86¢1 931
#018
NUT, U (12MM) (FUJI SEIMITSU)
$3.30¢1 650
#019
WASHER, PLAIN (16.4X32X2)
$1.93¢963
#020
PLATE, SWINGARM SIDE
$31.51¢15 756
#021
BEARING, RADIAL BALL (6204UU)
$19.06¢9 531
#022
BEARING, RADIAL BALL (6303UU) (NSK)
$44.49¢22 244
#023
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#023
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#024
O-RING (55X2)
$3.65¢1 825
