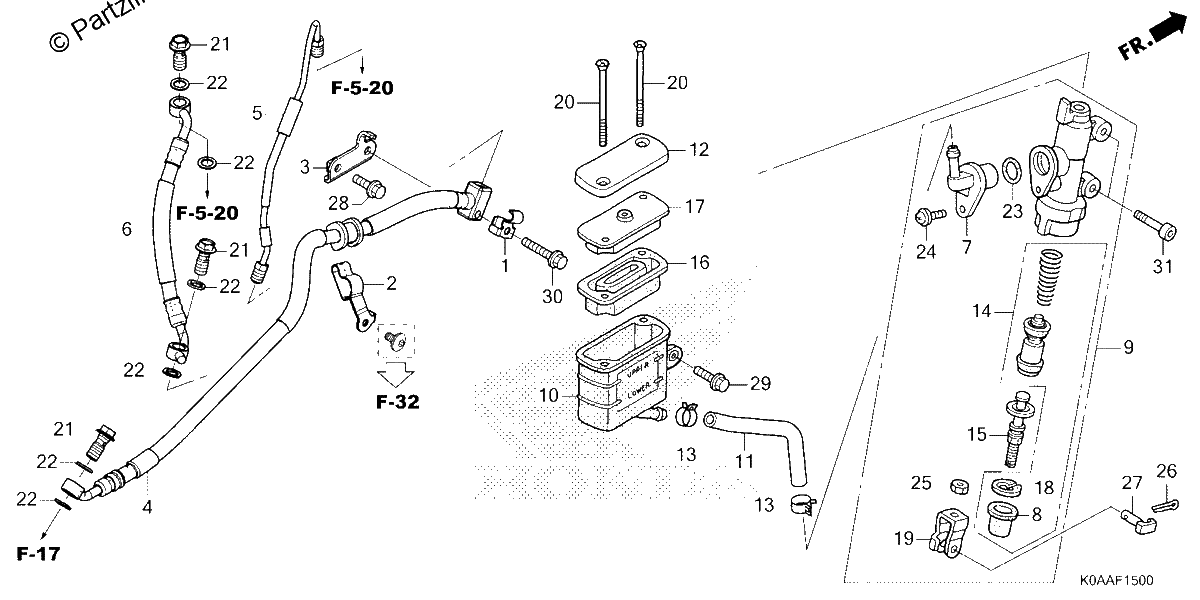

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP B, SENSOR WIRE
$2.43¢1 213
#002
CLAMP A, RR. BRAKE HOSE
$4.24¢2 122
#003
STAY, RR. BRAKE HOSE
$6.13¢3 065
#004
HOSE A, RR. BRAKE
$41.53¢20 763
#005
PIPE, RR. BRAKE
$16.63¢8 315
#006
HOSE B, RR. BRAKE
$19.79¢9 896
#007
CONNECTOR
$15.00¢7 498
#008
BOOT
$10.80¢5 399
#009
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$120.43¢60 214
#010
CUP, OIL
$26.54¢13 271
#011
HOSE, RR. MASTER CYLINDER
$14.87¢7 435
#012
CAP, MASTER CYLINDER
$7.11¢3 553
#013
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#014
PISTON SET, MASTER CYLINDER (NISSIN)
$48.82¢24 409
#015
ROD, PUSH
$23.49¢11 747
#016
DIAPHRAGM
$8.13¢4 065
#017
PLATE, DIAPHRAGM
$6.39¢3 197
#018
CIRCLIP
$2.30¢1 150
#019
JOINT, BRAKE ROD
$8.74¢4 370
#020
SCREW, FLAT (4X50)
$2.60¢1 299
#021
BOLT, OIL (10X22)
$8.18¢4 088
#022
WASHER, OIL BOLT
$4.46¢2 231
#023
O-RING (14.8X2.4)
$3.04¢1 518
#024
SCREW-WASHER (4X12)
$1.59¢793
#024
SCREW-WASHER (4X12)
$1.59¢793
#025
NUT, HEX. (8MM)
$1.47¢736
#026
PIN, SPLIT (2.0)
$0.62¢311
#027
PIN D, JOINT
$4.74¢2 369
#028
BOLT, FLANGE (6X12)
$2.75¢1 374
#029
BOLT, FLANGE (6X14)
$1.17¢586
#030
BOLT, FLANGE (6X25)
$1.59¢793
#031
BOLT, SOCKET (6X20)
$13.71¢6 854
