MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

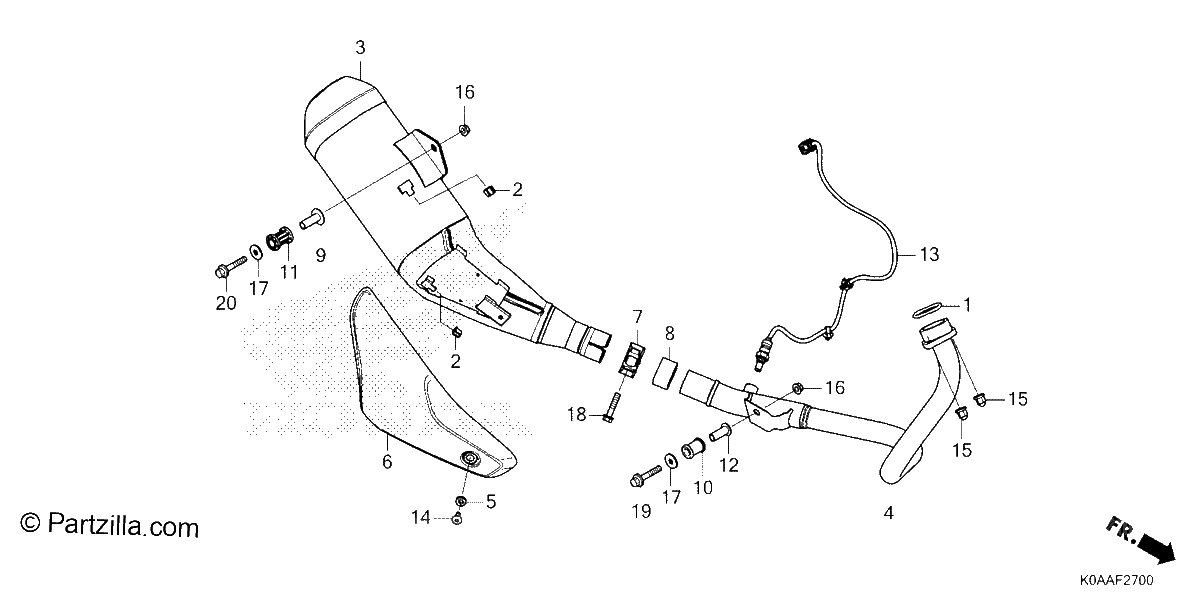

Diagrama de MUFFLER

Repuestos

#001
18291-MEB-670
GASKET, EX. PIPE
$5.49¢2 743
1
#002
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#003
18310-K0A-AB0
MUFFLER
$1487.42¢743 711
1
#004
18320-K0A-DB0
PIPE, EX.
$53.19¢26 594
1
#005
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#006
18355-K0A-DB0
COVER, MUFFLER
$41.78¢20 890
1
#007
18373-K0A-DB0
BAND, MUFFLER
$37.86¢18 929
1
#008
18392-KYJ-901
GASKET, MUFFLER
$7.59¢3 795
1
#009
18420-MGZ-J00
COLLAR, MUFFLER MOUNTING
$5.59¢2 794
1
#010
18421-K75-A50
RUBBER, MUFFLER MOUNTING
$7.24¢3 622
1
#011
18421-MGZ-J00
RUBBER, MUFFLER MOUNTING
$2.21¢1 104
1
#012
18422-KAF-700
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#012
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#013
36532-K0A-DB1
SENSOR, OXYGEN
$120.75¢60 375
1
#014
90113-KYJ-710
SCREW, PAN (6X12)
$1.00¢500
1
#015
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#016
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#017
94103-08000
WASHER, PLAIN (8MM)
$0.77¢385
1
#018
95701-08038-02
BOLT, FLANGE (8X38)
$4.74¢2 369
1
#019
95701-08050-00
BOLT, FLANGE (8X50)
$2.69¢1 346
1
#020
95801-08050-00
BOLT, FLANGE (8X50)
$3.36¢1 679
1
