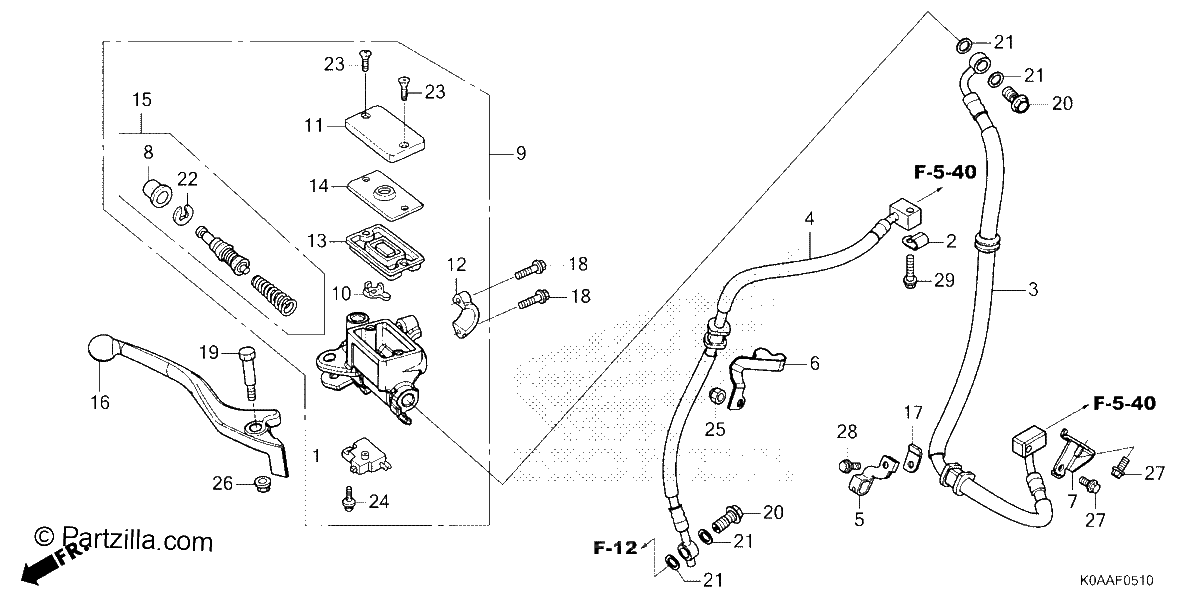

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
CLAMP, SENSOR WIRE
$1.54¢769
#003
HOSE A, FR. BRAKE
$49.20¢24 600
#004
HOSE B, FR. BRAKE
$39.94¢19 969
#005
CLAMP, FR. BRAKE HOSE
$5.64¢2 819
#006
CLAMP, FR. BRAKE HOSE (LOWER)
$6.50¢3 250
#007
STAY, FR. BRAKE HOSE
$7.91¢3 956
#008
BOOT
$14.24¢7 119
#009
MASTER CYLINDER SUB-ASSY., FR.BRAKE (COO) (NISSIN)
$127.96¢63 981
#009
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$127.96¢63 981
#010
PROTECTOR
$5.20¢2 600
#011
CAP, MASTER CYLINDER
$31.97¢15 987
#012
HOLDER, MASTER CYLINDER
$15.74¢7 869
#013
DIAPHRAGM
$10.88¢5 438
#014
PLATE, DIAPHRAGM
$2.92¢1 463
#015
MASTER CYLINDER SET
$46.40¢23 200
#016
LEVER, R. HANDLEBAR
$19.27¢9 638
#016
LEVER, Right HANDLEBAR (COO)
$19.27¢9 638
#017
STAY, HEADLIGHT
$3.28¢1 638
#018
BOLT, FLANGE (6X22)
$2.99¢1 494
#019
BOLT, HANDLE LEVER PIVOT
$1.25¢625
#020
BOLT, OIL (10X22)
$8.89¢4 444
#021
WASHER, OIL BOLT
$4.85¢2 425
#022
CIRCLIP
$3.10¢1 550
#023
SCREW, FLAT (4X12)
$1.16¢581
#023
SCREW, FLAT (4X12)
$1.16¢581
#024
SCREW-WASHER (4X12)
$0.33¢163
#024
SCREW-WASHER (4X12)
$1.72¢862
#024
SCREW-WASHER (4X12)
$1.72¢862
#025
NUT, CAP (6MM)
$1.99¢994
#026
NUT, FLANGE (6MM)
$0.80¢400
#027
BOLT, FLANGE (6X12)
$2.99¢1 494
#028
BOLT, FLANGE (6X14)
$1.54¢769
#029
BOLT, FLANGE (6X25)
$1.72¢862
