CLUTCH CRF1100D D4

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

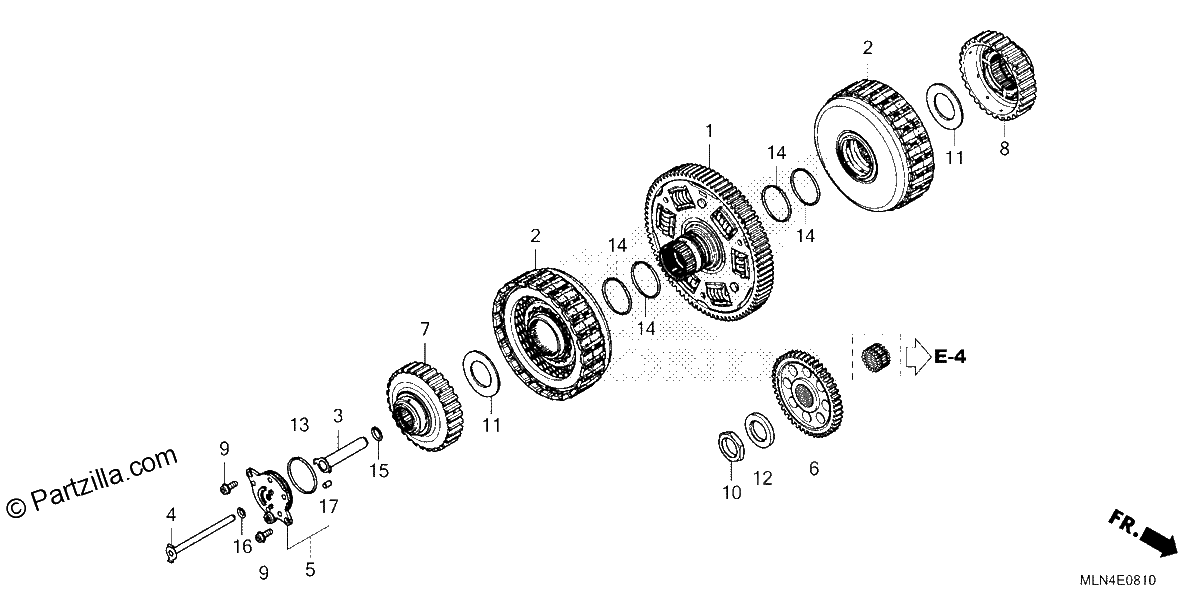

Diagrama de CLUTCH CRF1100D D4

Repuestos

#001
22100-MLN-E62
GEAR, PRIMARY DRIVEN (82T)
$767.67¢383 835
1
#002
22500-MLN-E61
CLUTCH Assembly.
$446.37¢223 186
1
#003
22711-MJP-G80
PIPE A, FEED
$21.15¢10 574
1
#004
22712-MJP-G80
PIPE B, FEED
$23.23¢11 615
1
#005
22720-MJP-G80
GUIDE, FEED PIPE
$89.83¢44 913
1
#006
23103-MKS-E50
GEAR, PRIMARY DRIVE (44T)
$125.86¢62 928
1
#007
23405-MJP-G80
GUIDE, FIRST CLUTCH GEAR (30T)
$126.76¢63 382
1
#008
23406-HL4-AJ0
GUIDE, SECOND CLUTCH GEAR (30T)
$111.91¢55 953
1
#009
90089-KAS-900
BOLT, FLANGE SOCKET (5X14)
$1.64¢822
1
#010
90201-HL4-000
NUT, LOCK (22MM)
$6.11¢3 053
1
#011
90403-HL4-000
WASHER (29.5X50X2)
$5.55¢2 777
1
#012
90404-HL4-000
WASHER (22X37X5)
$8.65¢4 324
1
#013
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
1
#014
91302-RGC-003
O-RING (35X2.2)
$3.36¢1 679
1
#015
91308-PY4-003
O-RING (10.7X1.9)
$1.44¢719
1
#016
91315-PC9-004
O-RING (6X1.5) (N0K)
$2.09¢1 047
1
#017
94302-05080
PIN B, DOWEL (5X8)
$2.66¢1 328
1
#017
94303-05080
PIN, DOWEL (5X8)
$2.66¢1 328
1
