FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

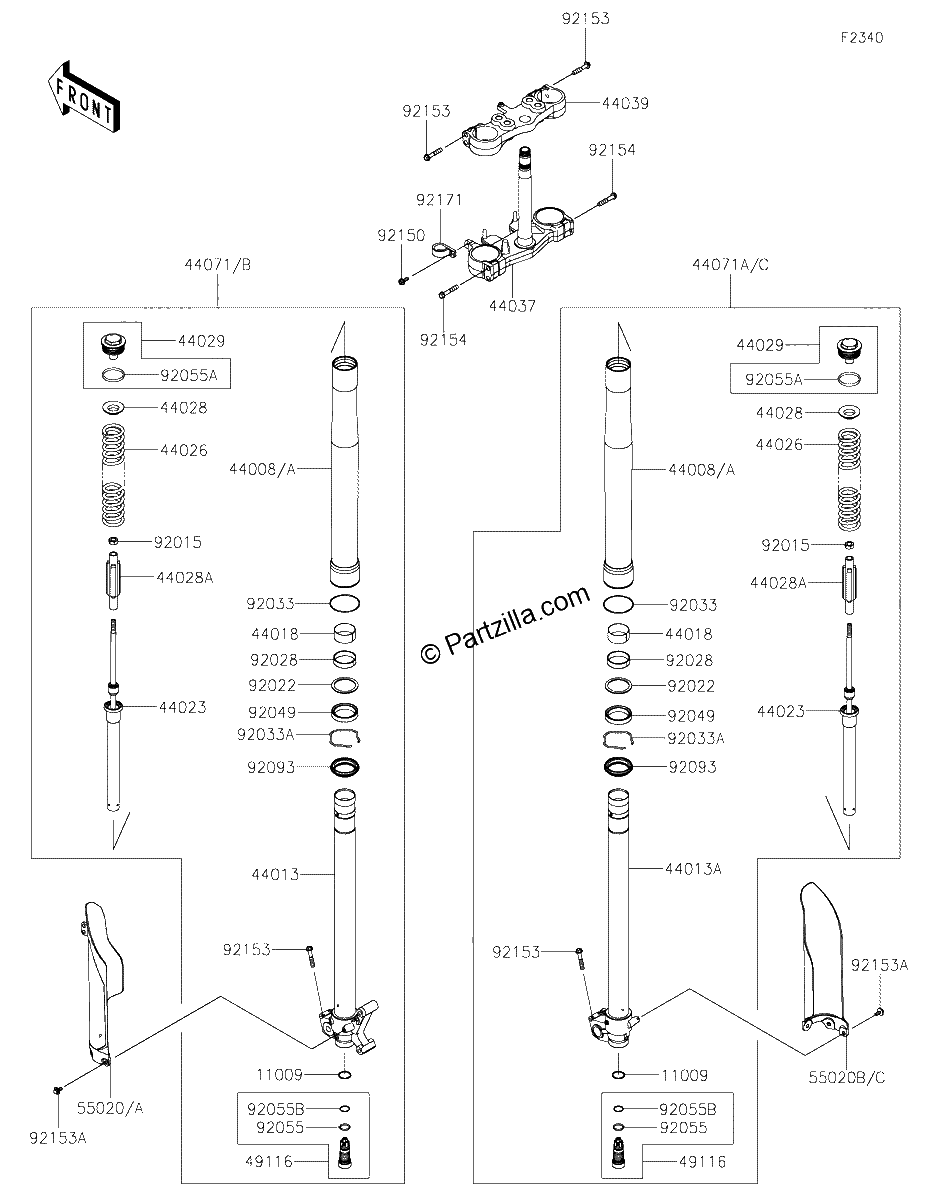

Diagrama de FRONT FORK

Repuestos

#11009
11009-1592
GASKET,FORK CYLINDER BOLT
$5.55¢2 777
1
#44008
44008-0032-KX
PIPE FORK OUTER,SILVER
$541.70¢270 848
1
#44008
44008-0119-828
PIPE-FORK OUTER,K.GOLD
$516.80¢258 399
1
#44008A
44008-0119-828
PIPE-FORK OUTER,K.GOLD
$516.80¢258 399
1
#44013
44013-0090-458
PIPE FORK INNER,Left Hand,P SILVER
$402.22¢201 112
1
#44013A
44013-0092-458
PIPE FORK INNER,Right Hand,P SILVER
$402.22¢201 112
1
#44018
44018-1056
PISTON FORK,INNER PIPE
$29.80¢14 898
1
#44023
44023-0156
CYLINDER-SET-FORK
$447.42¢223 710
1
#44026
44026-0239
SPRING-FRONT FORK
$109.59¢54 797
1
#44028
44028-1081
GUIDE-FORK SPRING
$12.49¢6 244
1
#44028A
44028-1084
GUIDE-FORK SPRING
$13.20¢6 601
1
#44029
44029-0010-KX
SEAT FORK SPRING,SILVER
$137.45¢68 724
1
#44037
44037-0190
HOLDER-FORK UNDER
$702.73¢351 365
1
#44039
44039-0198
HOLDER-FORK UPPER
$322.84¢161 420
1
#44071
44071-1402
DAMPER Assembly,Left Hand
$1126.67¢563 333
1
#44071
44071-1629
DAMPER-ASSY,LH
$1126.67¢563 333
1
#44071A
44071-1630
DAMPER Assembly,Right Hand
$1126.67¢563 333
1
#44071A
44071-1403
DAMPER-ASSY,RH
$1126.67¢563 333
1
#44071B
44071-1629
DAMPER-ASSY,LH
$1126.67¢563 333
1
#44071C
44071-1630
DAMPER Assembly,Right Hand
$1126.67¢563 333
1
#49116
49116-1145
VALVE Assembly,FORK
$208.90¢104 449
1
#55020B
55020-2232-290
GUARD,FORK,Right Hand,L GREEN
$61.61¢30 803
1
#55020C
55020-2232-6Z
GUARD,FORK,Right Hand,BLACK
$61.61¢30 803
1
#55020B
55020-2232-6Z
GUARD,FORK,Right Hand,BLACK
$61.61¢30 803
1
#55020
55020-2231-6Z
GUARD,FORK,Left Hand,BLACK
$61.61¢30 803
1
#55020
55020-2231-290
GUARD,FORK,Left Hand,L GREEN
$58.62¢29 308
1
#55020A
55020-2231-6Z
GUARD,FORK,Left Hand,BLACK
$61.61¢30 803
1
#92015
92015-1839
NUT
$19.75¢9 873
1
#92022
92022-1299
WASHER
$7.84¢3 922
1
#92028
92028-1581
BUSHING
$21.10¢10 551
1
#92033A
92033-1077
RING SNAP
$4.53¢2 266
1
#92033
92033-0080
RING SNAP
$5.36¢2 680
1
#92049
92049-1373
SEAL-OIL
$30.35¢15 174
1
#92055A
92055-1333
RING-O,FORK,AIR TUBE
$5.43¢2 714
1
#92055B
92055-1502
RING O,FORK VALVE
$7.92¢3 962
1
#92055
92055-1156
RING O
$1.30¢650
1
#92093
92093-1342
SEAL,FORK OUTER TUBE
$16.92¢8 458
1
#92150
92150-1802
BOLT,5X16
$4.76¢2 380
1
#92153A
92153-0936
BOLT,FLANGED,6X14
$2.51¢1 254
1
#92153
92153-0020
BOLT,8X40
$5.08¢2 541
1
#92154
92154-4062
BOLT,8X40
$13.05¢6 526
1
#92171
92171-0820
CLAMP
$8.20¢4 100
1
