CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

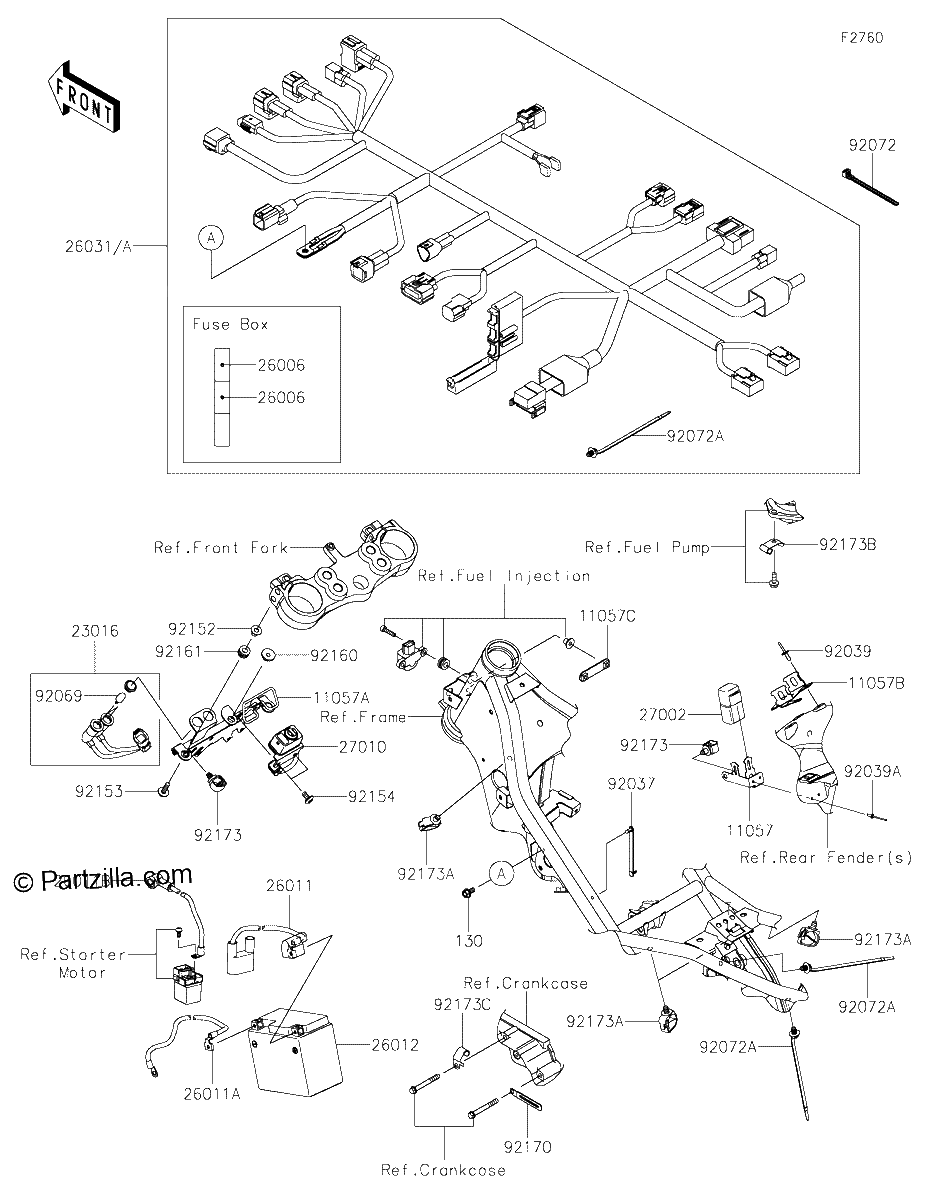

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BB0612
BOLT FLANGED,6X12
$2.19¢1 094
1
#11057
11057-2300
BRACKET,RELAY
$5.24¢2 619
1
#11057A
11057-2301
BRACKET,FR CONNECTOR
$50.24¢25 119
1
#11057C
11057-2303
BRACKET,VEHICLE DOWN
$4.09¢2 044
1
#11057B
11057-2302
BRACKET,ECU
$6.41¢3 206
1
#23016
23016-0638
LAMP-ASSY,INDICATOR
$183.84¢91 919
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26011
26011-1875
WIRE LEAD,BATTERY(+)
$148.45¢74 225
1
#26011B
26011-1877
WIRE-LEAD,STARTER
$140.01¢70 006
1
#26011A
26011-1876
WIRE-LEAD,BATTERY(-)
$147.19¢73 594
1
#26012
26012-0908
BATTERY,FTZ6V,12V 5AH
No Disponible
1
#26031
26031-2581
HARNESS,MAIN
$1043.97¢521 987
1
#26031
26031-2583
HARNESS,MAIN
$1043.97¢521 987
1
#27002
27002-1086
RELAY Assembly
$42.02¢21 013
1
#27010
27010-0929
SWITCH,IGNITION
$108.54¢54 269
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92039A
92039-0752
RIVET,3.2X9.5
$1.05¢525
1
#92039
92039-0039
RIVET
$4.11¢2 056
1
#92069
92069-1007
BULB,12V 3.4W,T10
$4.96¢2 481
1
#92072A
92072-1414
BAND
$3.70¢1 850
1
#92072
92072-1293
BAND,L=140
$6.85¢3 425
1
#92152
92152-2697
COLLAR,6.3X8.3X9.8
$4.30¢2 150
1
#92153
92153-0950
BOLT,FLANGED,6X22
$3.89¢1 944
1
#92154
92154-0951
BOLT,SOCKET,6X12
$1.63¢813
1
#92160
92160-1613
DAMPER
$3.70¢1 850
1
#92161
92161-0685
DAMPER,8X16X8.6
$6.46¢3 231
1
#92170
92170-1514
CLAMP
$4.29¢2 144
1
#92173B
92173-2202
CLAMP
$3.08¢1 538
1
#92173A
92173-0861
CLAMP
$2.75¢1 375
1
#92173
92173-0736
CLAMP,12MM DIA.
$5.01¢2 506
1
#92173C
92173-2289
CLAMP
$3.08¢1 538
1
