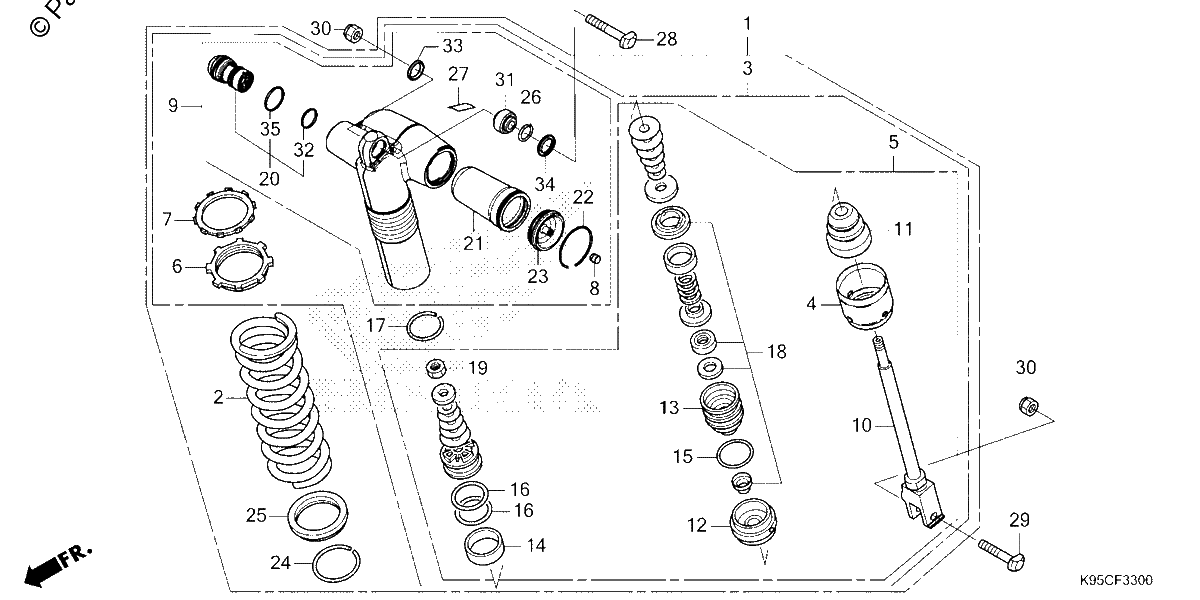

REAR SHOCK ABSORBER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CUSHION Assembly., Rear.
$1222.39¢611 196
#002
SPRING, RR. SHOCK ABSORBER (48N/MM)
$276.06¢138 029
#002
SPRING, RR. SHOCK ABSORBER (52N/MM)
$262.31¢131 158
#002
SPRING, RR. SHOCK ABSORBER (50N/MM)
$262.31¢131 158
#003
DAMPER, Rear.
$933.82¢466 911
#004
STOPPER, SPRING SEAT
$28.52¢14 260
#005
ROD, PISTON
$533.98¢266 990
#006
ADJUSTER, SPRING
$35.50¢17 750
#007
NUT, ADJUSTER
$17.22¢8 608
#008
CAP, AIR VALVE
$5.63¢2 818
#009
CASE, DAMPER
$782.68¢391 339
#010
ROD
$481.15¢240 574
#011
RUBBER, STOPPER
$22.44¢11 218
#012
PLATE, END
$28.60¢14 300
#013
CASE, ROD GUIDE
$52.99¢26 496
#014
RING, PISTON
$18.64¢9 321
#015
O-RING (3.5X43.7)
$4.42¢2 208
#016
O-RING (42.5X2.0)
$3.85¢1 926
#017
RING, STOPPER
$2.81¢1 403
#018
OIL SEAL SET
$20.04¢10 022
#019
NUT, HEX.
$4.07¢2 035
#020
ADJUSTER, COMPRESSION DAMPING FORCE
$203.55¢101 775
#021
BLADDER
$21.04¢10 522
#022
RING, STOPPER
$3.43¢1 713
#023
CAP, CHAMBER
$32.75¢16 376
#024
RING, STOPPER
$6.88¢3 439
#025
SEAT, SPRING
$28.84¢14 421
#026
RING, STOPPER
$4.38¢2 191
#027
LABEL, RR. DAMPER WARNING
$7.97¢3 985
#028
BOLT, CUSHION (UPPER) (10X53)
$3.36¢1 679
#029
BOLT, CUSHION (LOWER) (10X43.5)
$9.68¢4 842
#030
NUT, U (10MM)
$4.17¢2 087
#031
BEARING, SPHERICAL (10)
$37.41¢18 705
#032
O-RING (26.2X1.9)
$3.42¢1 708
#033
DUST SEAL, RR. CUSHION PIVOT
$5.44¢2 720
#034
DUST SEAL (16X26X3)
$6.19¢3 093
#035
O-RING (31.2X1.9)
$3.75¢1 874
