REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

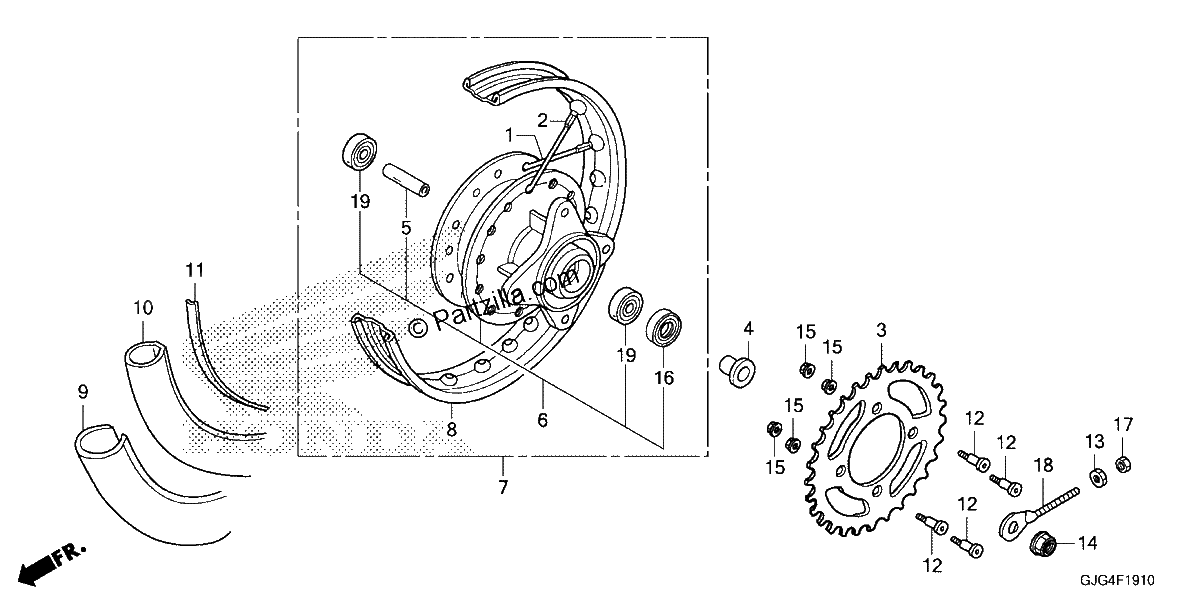

Diagrama de REAR WHEEL

Repuestos

#001
06420-GEL-A80
SPOKE SET A
$2.77¢1 386
1
#002
06421-GEL-A80
SPOKE SET B
$2.77¢1 386
1
#003
41201-GEL-A80
SPROCKET, FINAL DRIVEN (37T)
$51.13¢25 565
1
#004
42312-GEL-A80
COLLAR, L. RR. WHEEL SIDE
$9.79¢4 893
1
#005
42620-GEL-A80
COLLAR, RR. AXLE DISTANCE
$10.37¢5 187
1
#006
42635-GEL-A80
HUB SUB-ASSY., RR.
$225.23¢112 614
1
#007
42650-GEL-405
WHEEL SUB-ASSY., RR. (COO)
$304.26¢152 128
1
#007
42650-GEL-A80
WHEEL SUB-ASSY., RR.
$304.26¢152 128
1
#008
42701-GEL-A80
RIM, WHEEL
$66.67¢33 333
1
#009
42711-GEL-A82
TIRE (2.50-10 4PR) (CHENG SHIN)
$64.23¢32 114
1
#010
42712-GEL-A81
TUBE, TIRE (CHENG SHIN)
$30.44¢15 220
1
#011
42713-GEL-A81
FLAP, TIRE (CHENG SHIN)
$5.95¢2 973
1
#012
90128-GCF-670
BOLT, SPROCKET FIXING
$5.49¢2 743
1
#013
90302-KRS-830
NUT, SPECIAL (6MM)
$2.45¢1 225
1
#014
90306-KYA-601
NUT, FLANGE (12MM) (PT)
$3.36¢1 679
1
#015
90309-428-731
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$3.74¢1 869
1
#015
90309-KF0-003
NUT, FLANGE (8MM)
$3.74¢1 869
1
#016
91251-045-005
OIL SEAL (18X32X8)
$5.63¢2 818
1
#017
94001-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#017
94001-06200-0S
NUT, HEX. (6MM)
$1.54¢771
1
#018
40543-GEL-A80
ADJUSTER, CHAIN
$4.83¢2 415
1
#018
95014-10010
ADJUSTER S, R. CHAIN
$4.83¢2 415
1
#019
96150-62010-10
BEARING, RADIAL BALL (6201UU)
$13.37¢6 687
1
