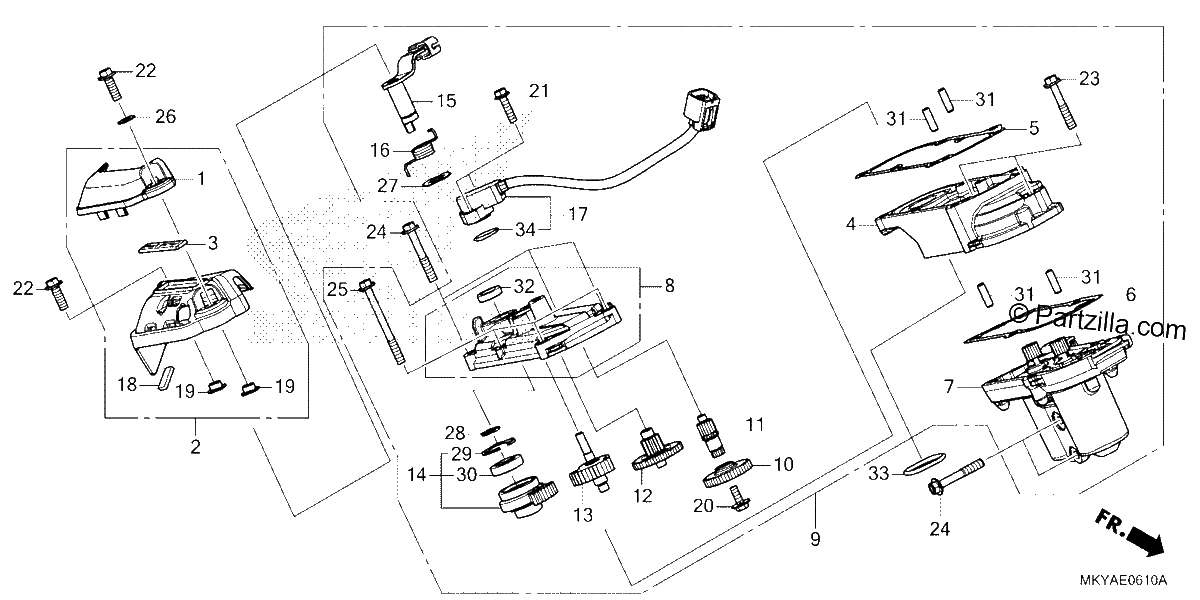

CLUTCH ACTUATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
PAD, CLUTCH ARM COVER
$7.89¢3 944
#002
COVER Assembly., CLUTCH ARM
$52.88¢26 438
#003
PLATE, EMBLEM
$28.91¢14 456
#004
CASE, CLUTCH ACTUATOR
$80.25¢40 125
#005
GASKET, CLUTCH ACTUATOR COVER
$1.70¢850
#006
GASKET, CLUTCH ACTUATOR CASE
$1.70¢850
#007
CASE Assembly., CLUTCH ACTUATOR MOTOR
$541.66¢270 831
#008
COVER, CLUTCH ACTUATOR
$106.23¢53 113
#009
ACTUATOR Assembly., CLUTCH
$735.82¢367 912
#010
GEAR A, CLUTCH ACTUATOR (51T)
$38.85¢19 425
#011
SHAFT A, CLUTCH ACTUATOR (17T)
$51.34¢25 669
#012
GEAR B, CLUTCH ACTUATOR (62T/11T)
$53.14¢26 569
#013
GEAR C, CLUTCH ACTUATOR (12T/9T)
$70.70¢35 350
#014
GEAR Assembly D, CLUTCH ACTUATOR (8T)
$72.17¢36 088
#015
LEVER, CLUTCH
$34.17¢17 088
#016
SPRING, CLUTCH LEVER
$1.95¢975
#017
SENSOR Assembly., ANGLE (110DEGREE)
$130.82¢65 412
#018
RUBBER, HANDLE COVER
$1.85¢925
#019
COLLAR, FR. FENDER SETTING
$0.31¢156
#020
BOLT-WASHER, SPECIAL (5X14)
$1.23¢613
#021
BOLT, FLANGE (5X20)
$1.15¢575
#022
BOLT, FLANGE (6X18) (S-NSHF)
$2.97¢1 487
#023
BOLT, FLANGE (6X35) (S-NSHF)
$1.41¢706
#024
BOLT, FLANGE (6X40) (S-NSHF)
$3.01¢1 506
#025
BOLT, FLANGE (6X60) (S-NSHF)
$1.38¢688
#026
WASHER, PLAIN (6MM)
$3.49¢1 744
#027
WASHER
$3.08¢1 538
#028
CIRCLIP (OUTER) (12MM)
$1.25¢625
#029
CIRCLIP (INNER) (24MM)
$2.24¢1 119
#030
BEARING, RADIAL BALL (6901ZZ)
$5.39¢2 694
#031
ROLLER (5X17.8)
$1.25¢625
#032
OIL SEAL (12X18X5)
$1.15¢575
#033
O-RING (28X2.6)
$1.80¢900
#034
O-RING, ANGLE SENSOR
$3.50¢1 750
