MIDDLE COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

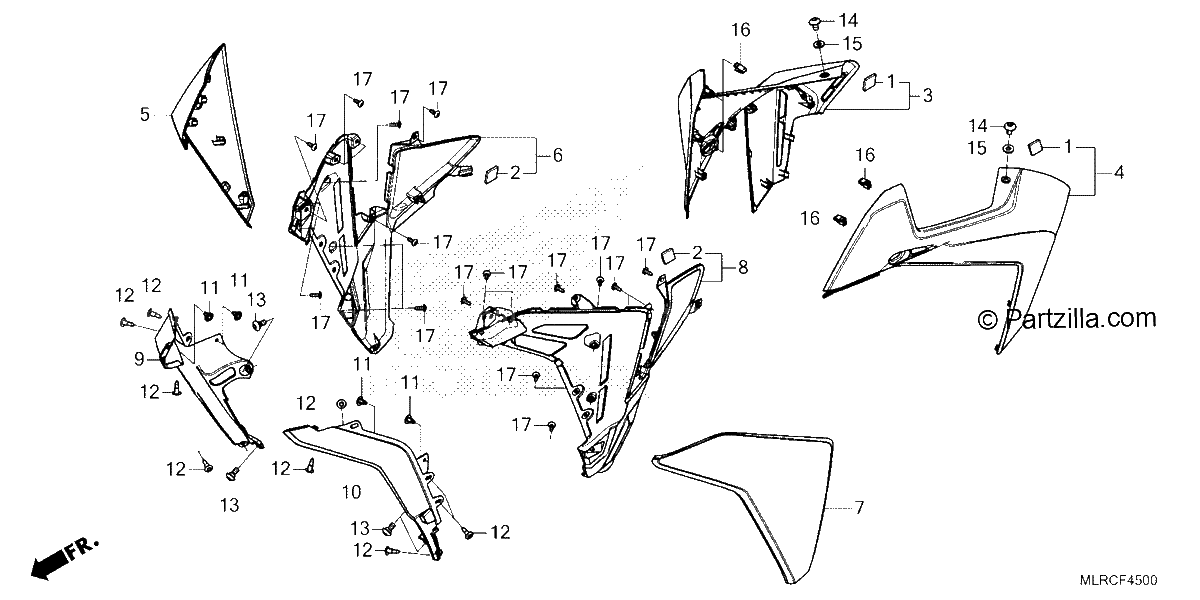

Diagrama de MIDDLE COWL

Repuestos

#001
17542-MJE-D00
FASTENER D, DUAL LOCK (20X20)
$2.56¢1 281
1
#002
64165-MJF-A30
FASTENER B, DUAL LOCK (20X20)
$4.59¢2 294
1
#003
64220-MLR-D90ZA
COWL Assembly., Right MIDDLE (TYPE2) (WL)
$132.09¢66 044
1
#003
64220-MLR-D90ZB
COWL Assembly., Right MIDDLE (TYPE1) (WL)
$132.09¢66 044
1
#004
64240-MLR-D90ZA
COWL Assembly., L MIDDLE (TYPE2) (WL)
$137.46¢68 731
1
#004
64240-MLR-D90ZB
COWL Assembly., L MIDDLE (TYPE1) (WL)
$137.46¢68 731
1
#005
64320-MLR-D90ZA
COWL SET, Right Front SIDE (TYPE2) (WL)
$62.31¢31 156
1
#005
64320-MLR-D90ZB
COWL SET, Right Front SIDE (TYPE1) (WL)
$62.31¢31 156
1
#006
64330-MLR-D80
COVER Assembly., Right TANK SIDE
$17.85¢8 925
1
#007
64340-MLR-D90ZB
COWL SET, L Front SIDE (TYPE1) (WL)
$62.31¢31 156
1
#007
64340-MLR-D90ZA
COWL SET, L Front SIDE (TYPE2) (WL)
$62.31¢31 156
1
#008
64360-MLR-D80
COVER Assembly., L TANK SIDE
$17.81¢8 906
1
#009
64421-MLR-D80
COVER, Right. (INNER)
$38.61¢19 306
1
#010
64441-MLR-D80
COVER, Left (INNER)
$20.38¢10 188
1
#011
90116-K0A-E11
RIVET, PUSH (6MM)
$1.66¢831
1
#012
90116-K2P-V61
CLIP, BUMPER SEAL
$2.07¢1 037
1
#013
90127-MKN-D50
SCREW, SPECIAL (6X14)
$1.72¢862
1
#014
90132-KPP-T00
SCREW, PAN (6X10)
$1.11¢556
1
#015
90583-KVB-900
WASHER, PLAIN (6MM)
$1.16¢581
1
#016
90666-K73-VA1
CLIP, SNAP FITTING (PO)
$2.66¢1 331
1
#017
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
