RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

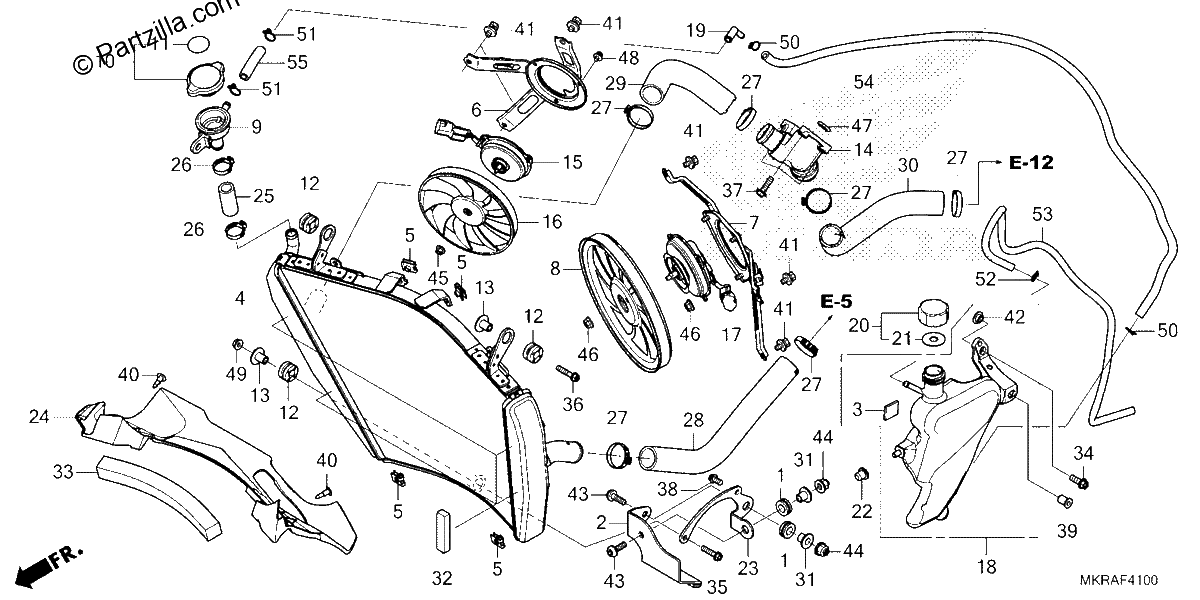

Diagrama de RADIATOR

Repuestos

#001
15612-MKR-DH0
RUBBER, HEAT GUARD MOUNTING
$5.80¢2 900
1
#002
15653-MKR-D80
GUARD, OIL COOLER PIPE HEAT
$44.26¢22 131
1
#003
17525-GBC-300
RUBBER, FUEL TANK
$2.52¢1 263
1
#004
19010-MKR-D11
RADIATOR
$1290.67¢645 338
1
#005
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#006
19015-MKR-D11
SHROUD, R.
$47.60¢23 800
1
#007
19016-MKR-D11
SHROUD, L.
$66.06¢33 031
1
#008
19020-MFA-D01
FAN, COOLING
$52.41¢26 206
1
#009
19035-KVZ-631
FILLER, NECK
$35.83¢17 913
1
#010
19037-GEE-710
CAP, RADIATOR
$35.16¢17 581
1
#011
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#012
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#013
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$6.23¢3 113
1
#014
19070-MKR-D10
JOINT, WATER BYPASS
$79.29¢39 644
1
#015
19080-MKR-D61
MOTOR Assembly., FAN
$240.43¢120 213
1
#016
19090-MKR-D11
FAN, COOLING
$47.25¢23 625
1
#017
19090-MKR-D61
MOTOR Assembly., FAN
$326.79¢163 394
1
#018
19101-MKR-DH0
TANK, RADIATOR RESERVE
$39.96¢19 981
1
#019
19103-ML7-000
JOINT, TUBE
$7.55¢3 775
1
#020
19105-MG8-000
CAP ASSY., RESERVE TANK
$14.71¢7 356
1
#021
19107-MG8-000
GASKET, RESERVE TANK
$5.94¢2 969
1
#022
19113-MB1-870
RUBBER, RADIATOR MOUNTING
$4.20¢2 100
1
#023
19113-MKR-DH0
STAY, RADIATOR (LOWER)
$10.39¢5 194
1
#024
19120-MKR-D10
COVER, RADIATOR (UPPER)
$31.09¢15 544
1
#025
19504-MKR-D10
HOSE, FILLER NECK
$7.15¢3 575
1
#026
19511-MKF-D41
CLAMP, HOSE (D19)
$12.31¢6 156
1
#027
19514-MKF-D41
CLAMP, HOSE (D29.8)
$11.99¢5 994
1
#028
19551-MKR-D10
HOSE, THERMOSTAT
$31.83¢15 913
1
#029
19561-MKR-D10
HOSE, RADIATOR
$30.09¢15 044
1
#030
19571-MKR-D10
HOSE, WATER PUMP
$41.83¢20 913
1
#031
33614-MEC-650
COLLAR C, RR. TURN SIGNAL
$3.30¢1 650
1
#032
64213-MEJ-J00
MAT, Front CENTER COWL
$1.59¢794
1
#033
83155-HP6-A00
SEAL, FUEL TANK
$8.79¢4 394
1
#034
90020-GHB-640
BOLT, FLANGE (6X16)
$2.91¢1 456
1
#035
90020-GHB-680
BOLT, FLANGE (6X25)
$2.91¢1 456
1
#036
90020-GHB-690
BOLT, FLANGE (6X28)
$2.99¢1 494
1
#037
90027-GHB-670
BOLT, FLANGE (6X22)
$2.89¢1 444
1
#038
90030-GHB-640
BOLT, FLANGE (6X16)
$2.99¢1 494
1
#039
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#040
90116-SP0-003
CLIP, BUMPER SEAL
$5.72¢2 863
1
#041
90120-GHB-601
BOLT-WASHER (6X12)
$2.48¢1 238
1
#042
90127-KF0-770
COLLAR (6X4)
$4.15¢2 075
1
#043
90132-MFJ-D00
BOLT, SPECIAL (6X18) (SUS)
$2.97¢1 487
1
#044
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#045
90315-MFL-003
NUT, FLANGE (3MM)
$2.99¢1 494
1
#046
90315-MK3-003
NUT, SERRATE (5MM)
$2.99¢1 494
1
#047
91303-MKR-D11
O-RING (19X2)
$2.60¢1 300
1
#048
93893-04008-07
SCREW-WASHER (4X8)
$0.94¢469
1
#049
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#050
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#051
95002-02120
CLIP, TUBE (B12)
$2.39¢1 194
1
#052
95002-50000
CLIP, TUBE (C9)
$1.54¢769
1
#053
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X300)
$24.39¢12 194
1
#054
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
1
#055
95005-75001-20M
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X500)
$26.24¢13 119
1
