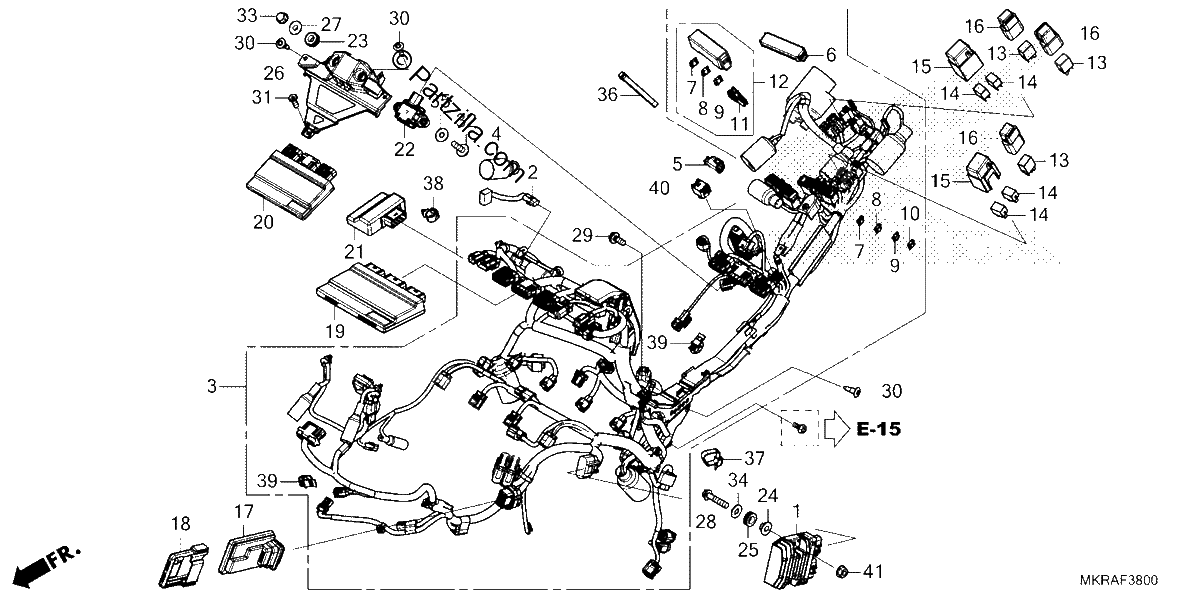

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$202.96¢101 482
#002
CONDENSER
$14.66¢7 331
#003
WIRE HARNESS
$1775.78¢887 892
#004
COVER, WIRE HARNESS CONNECTOR
No Disponible
#005
CAP, DUMMY (2P) (RED)
$3.81¢1 903
#006
COVER, FUSE BOX
$6.20¢3 099
#007
FUSE, BLADE (7.5A)
$3.46¢1 731
#008
FUSE, BLADE (10A)
$3.46¢1 731
#009
FUSE, BLADE (15A)
$4.42¢2 208
#010
FUSE, BLADE (30A)
$2.86¢1 432
#011
PULLER, MINI FUSE
$4.15¢2 076
#012
COVER, FUSE BOX
$26.53¢13 265
#013
RELAY, POWER (MICRO ISO 4P)
$11.58¢5 790
#014
RELAY, POWER (MICRO ISO 4P)
$15.42¢7 711
#015
COVER, RELAY (2P)
$4.28¢2 139
#016
SUSPENSION, POWER RELAY
$7.28¢3 640
#017
CONTROL UNIT, SUSPENSION
$971.45¢485 725
#018
CUSION, SUSPENSION CONTROL UNIT
$10.50¢5 250
#019
PGM-FI UNIT
$1572.44¢786 220
#020
PGM-TBW UNIT
$792.20¢396 100
#021
CONTROL UNIT, BODY
$368.71¢184 356
#022
SENSOR ASSY. (3GYRO & 3G)
$545.81¢272 907
#023
RUBBER, SENSOR MOUNTING
$4.89¢2 444
#024
COLLAR, HORN SETTING
$1.47¢736
#025
RUBBER, SIDE COVER
$2.30¢1 150
#026
COVER, ELECTRONIC CONTROL UNIT
$19.49¢9 746
#027
COLLAR, LOCK SETTING
$6.59¢3 295
#028
BOLT, FLANGE (6X28)
$2.75¢1 374
#029
BOLT, FLANGE (6X14)
$2.64¢1 322
#030
CLIP, BUMPER SEAL
$5.27¢2 633
#031
BOLT, SPECIAL (5X14)
$3.01¢1 507
#032
SCREW, PAN (6X22)
$0.98¢489
#033
NUT, CAP (6MM)
$2.54¢1 271
#034
WASHER, RR. COVER GROMMET (FOR FR.)
$2.04¢1 018
#035
WASHER (6.1MM)
$2.94¢1 472
#036
BAND, WIRE HARNESS
$29.19¢14 593
#037
BAND, WIRE (95MM)
$3.47¢1 737
#038
CLIP, WIRE HARNESS (25MM)
$11.21¢5 606
#039
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
#040
CONNECTOR, DUMMY (6P 025M)
$10.09¢5 043
#041
NUT, FLANGE (6MM)
$0.74¢368
