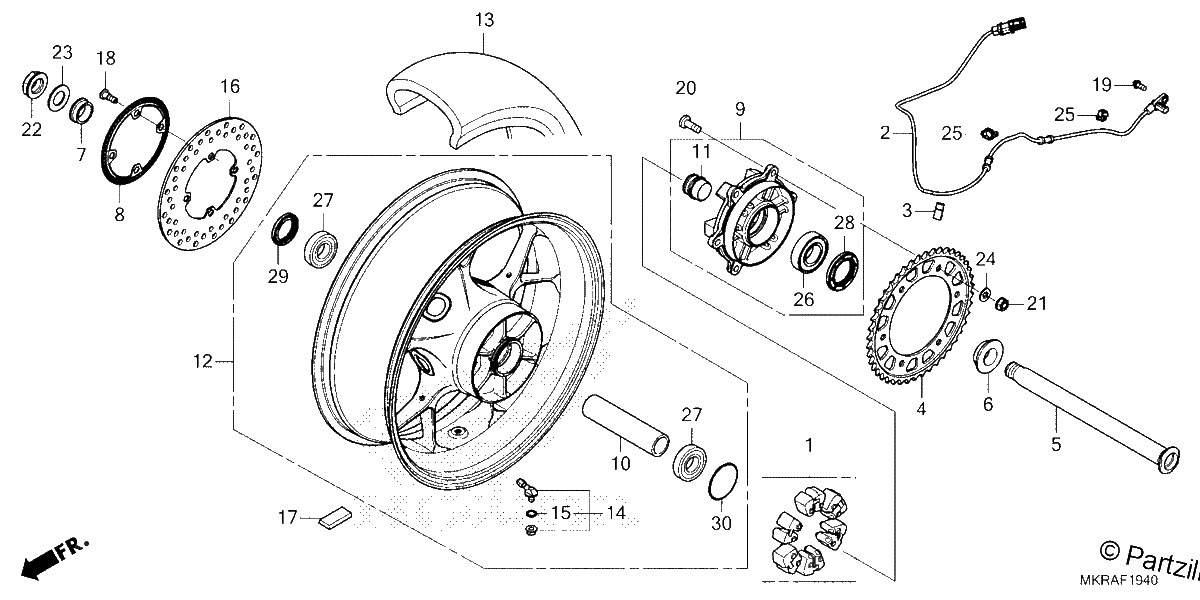

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$64.04¢32 019
#002
SENSOR, Rear WHEEL SPEED
$84.69¢42 344
#003
CLAMP, ABS WIRE (D12)
$3.50¢1 750
#004
SPROCKET, FINAL DRIVEN (44T)
$83.26¢41 631
#005
AXLE, Rear WHEEL
$96.58¢48 288
#006
COLLAR, Rear WHEEL SIDE
$41.19¢20 594
#007
COLLAR, Rear BRAKE SIDE
$28.34¢14 169
#008
RING, Rear PULSER
$51.15¢25 575
#009
FLANGE SUB-ASSY., RR. DRIVEN
$270.60¢135 300
#010
COLLAR, Rear AXLE DISTANCE
$55.90¢27 950
#011
COLLAR B, RR. WHEEL DISTANCE
$31.74¢15 869
#012
WHEEL SUB-Assembly., Rear. (TYPE2)
$1391.99¢695 994
#013
TIRE, RR. (200/55ZR17 M/C 78W)(BS)
$347.55¢173 775
#013
TIRE, Rear. (200/55ZR17 M/C 78W)(PIRELLI)
$483.81¢241 906
#014
VALVE ASSY., CLAMP IN
$19.25¢9 625
#015
O-RING
$1.96¢981
#016
DISK, Rear BRAKE
$331.41¢165 706
#017
WEIGHT, BALANCE (15G)
$5.31¢2 656
#017
WEIGHT, BALANCE (10G)
No Disponible
#017
WEIGHT, BALANCE (20G)
$5.22¢2 613
#018
BOLT, DISK (8X25)
$3.98¢1 988
#019
BOLT, FLANGE (6X14)
$2.97¢1 487
#020
BOLT (10X28.5)
$4.96¢2 481
#021
NUT U, FLANGE (10MM)
$2.91¢1 456
#022
NUT, U FLANGE (24MM)
$27.41¢13 706
#023
WASHER (24.1X43X2.5)
$7.31¢3 656
#024
WASHER (10MM)
$3.61¢1 806
#025
CLIP, CABLE (12MM)
$2.88¢1 438
#026
BEARING, ANGULAR BALL (31X63X16) (FUJIKOSHI)
$72.69¢36 344
#027
BEARING, RADIAL BALL (60/28)
$21.72¢10 862
#028
DUST SEAL (40X63X7) (NOK)
$20.39¢10 194
#029
DUST SEAL (36X52X7) (NOK)
$12.69¢6 344
#030
O-RING (57X2) (ARAI)
$6.34¢3 169
