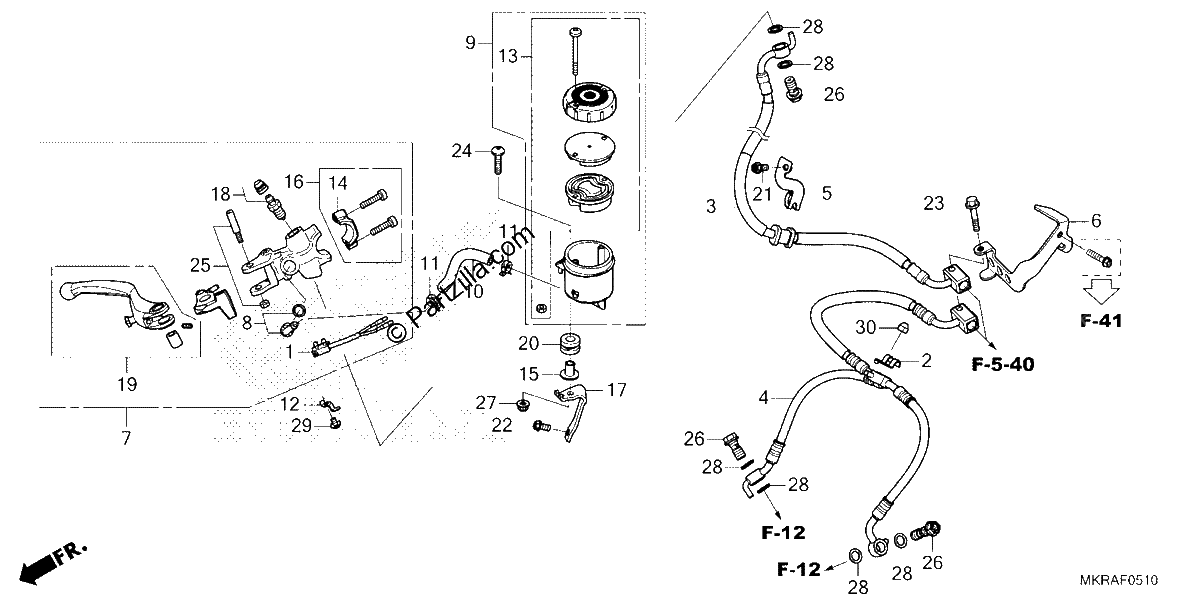

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH ASSY., FR. STOP
$34.55¢17 275
#002
CLAMP, SENSOR WIRE
$4.96¢2 481
#003
HOSE A, Front BRAKE
$63.05¢31 525
#004
HOSE D, Front BRAKE
$109.77¢54 887
#005
CLAMP A, Front BRAKE HOSE
$9.20¢4 600
#006
STAY A, FR. BRAKE HOSE
$24.55¢12 275
#007
MASTER CYLINDER Assembly., Front. (BREMBO)
$732.59¢366 294
#008
CONNECTOR ASSY.
$57.70¢28 850
#009
CUP Assembly., Front BRAKE MASTER CYLINDER OIL
$80.35¢40 175
#010
HOSE, Front BRAKE MASTER CYLINDER
$14.46¢7 231
#011
CLAMP, MASTER CYLINDER HOSE
$4.71¢2 356
#012
HOLDER, FR. STOP SWITCH
$2.97¢1 487
#013
CAP ASSY., OIL CUP
$77.60¢38 800
#014
HOLDER, FR. MASTER CYLINDER
$39.51¢19 756
#015
COLLAR (6.3X13)
$5.45¢2 725
#016
CLAMP SET, FR. BRAKE
$43.01¢21 506
#017
STAY, Front MASTER CYLINDER
$12.25¢6 125
#018
SCREW ASSY., BLEEDER
$9.49¢4 744
#019
LEVER SET, FR. BRAKE
$172.07¢86 038
#020
RUBBER, TAILLIGHT MOUNTING
$6.23¢3 113
#021
BOLT, FLANGE (6X12)
$2.88¢1 438
#022
BOLT, FLANGE (6X14)
$2.88¢1 438
#023
BOLT, FLANGE (6X28)
$2.88¢1 438
#024
SCREW, PAN (6X28)
$3.91¢1 956
#025
BOLT SET, HANDLE LEVER
$13.11¢6 556
#026
BOLT, OIL (10X20)
$7.18¢3 588
#027
NUT, U (6MM)
$8.39¢4 194
#028
WASHER, OIL BOLT
$4.85¢2 425
#029
SCREW-WASHER (4X6)
$1.47¢737
#030
NUT, CAP (6MM)
$1.99¢994
