SWINGARM

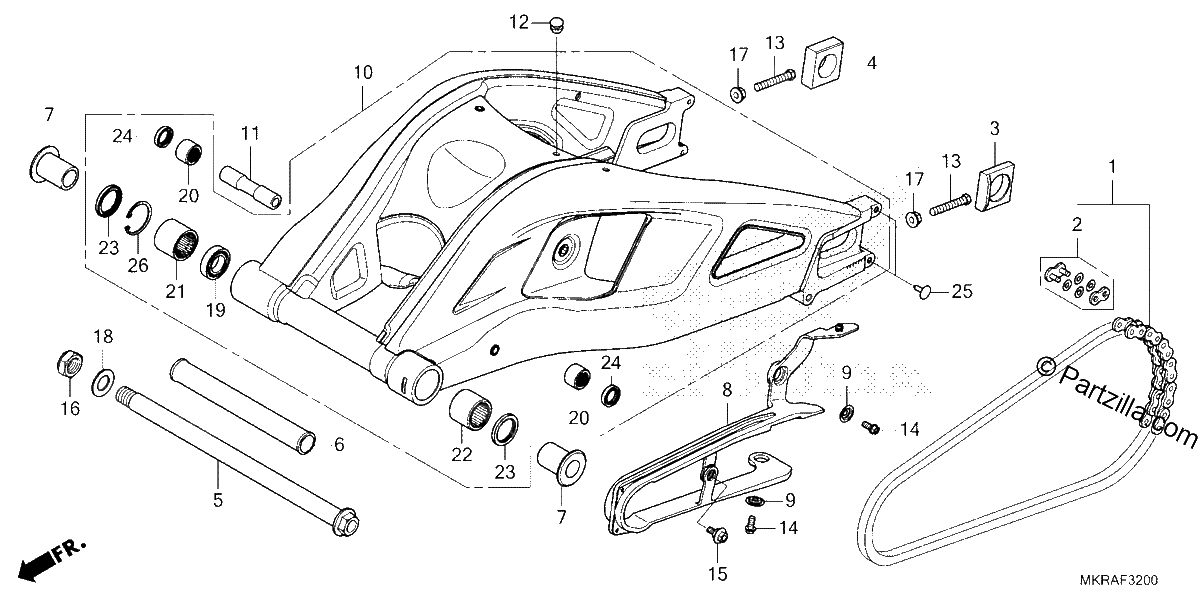

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CHAIN, DRIVE (DID525HV3KAI-120ZH) (DAIDO)
$263.73¢131 865
#001
CHAIN, DRIVE (RK JAPAN) (RK525ROZ9-120LJFZ9)
$207.34¢103 673
#002
MASTER LINK (RK JAPAN)
$13.97¢6 986
#002
MASTER LINK (DAIDO)
$13.74¢6 871
#003
COLLAR, L. RR. AXLE
$40.96¢20 481
#004
COLLAR, R. RR. AXLE
$33.53¢16 767
#005
BOLT, SWINGARM PIVOT
$75.13¢37 565
#006
COLLAR, CENTER PIVOT DISTANCE
$32.82¢16 411
#007
COLLAR, PIVOT DISTANCE
$36.45¢18 228
#008
SLIDER, CHAIN
$68.26¢34 132
#009
WASHER, CHAIN SLIDER
$2.62¢1 311
#010
SWINGARM SUB-Assembly., Rear.
$2360.86¢1 180 429
#011
COLLAR, CUSHION CONNECTING ROD
$12.29¢6 147
#012
PLUG, HANDLE COVER (LOWER)
$2.20¢1 098
#013
BOLT, HEX. (8X50)
$3.42¢1 708
#014
BOLT, FLANGE (6X14)
$2.74¢1 368
#015
BOLT, CHAIN SLIDER
$3.42¢1 708
#016
NUT, U (18MM)
$7.60¢3 801
#017
NUT, HEX. (8MM)
$3.79¢1 897
#018
WASHER (18X32X2)
$4.99¢2 496
#019
BEARING, RADIAL BALL (20X37X9)
$11.86¢5 928
#020
BEARING, NEEDLE (17X24X17) (FAG)
$15.66¢7 831
#021
BEARING, NEEDLE
$18.38¢9 189
#022
BEARING, NEEDLE
$27.44¢13 719
#023
DUST SEAL (28X37X4)
$7.08¢3 542
#024
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
#025
CLIP, BRUSH
$4.31¢2 156
#026
CIRCLIP, INNER (37MM)
$2.59¢1 294
