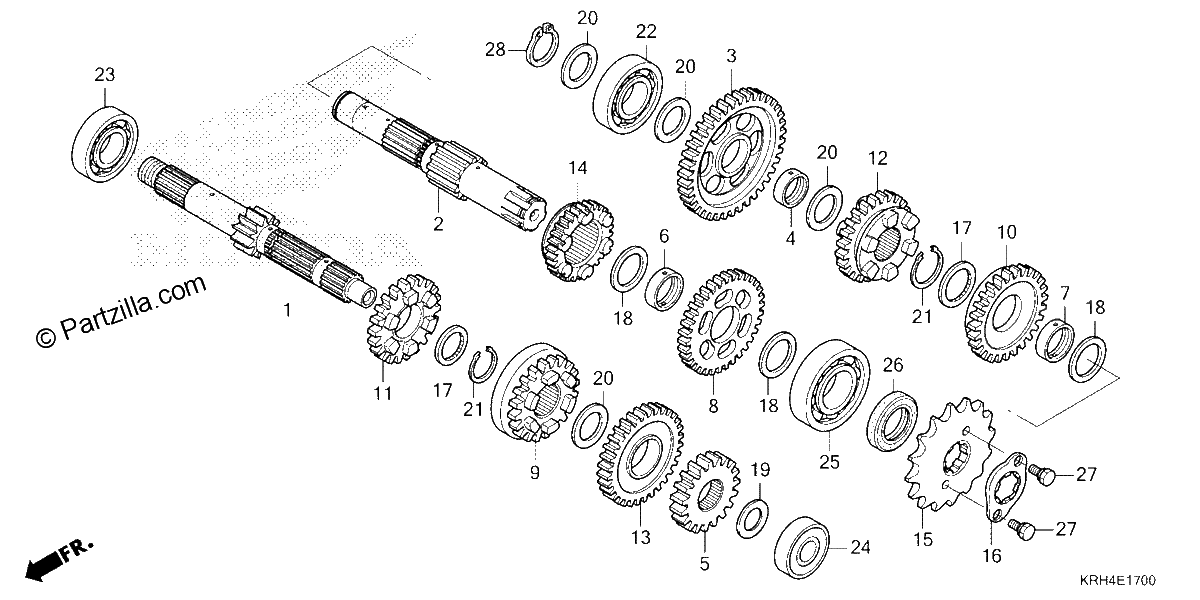

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (14T)
$98.84¢49 421
#002
COUNTERSHAFT
$101.23¢50 617
#003
GEAR, COUNTERSHAFT LOW (39T)
$77.76¢38 882
#004
BUSH (17X20.5X8.0)
$6.57¢3 283
#005
GEAR, MAINSHAFT SECOND (16T)
$45.41¢22 707
#006
BUSH (20MM)
$9.88¢4 939
#007
BUSH (20MM)
$13.18¢6 590
#008
GEAR, COUNTERSHAFT SECOND (30T)
$79.64¢39 819
#009
GEAR, MAINSHAFT THIRD (22T)
$80.74¢40 371
#010
GEAR, COUNTERSHAFT THIRD (31T)
$81.86¢40 929
#011
GEAR, MAINSHAFT FOURTH (25T)
$78.29¢39 146
#012
GEAR, COUNTERSHAFT FOURTH (28T)
$84.19¢42 096
#013
GEAR, MAINSHAFT FIFTH (32T)
$77.96¢38 979
#014
GEAR, COUNTERSHAFT FIFTH (30T)
$84.10¢42 050
#015
SPROCKET, DRIVE (17T)
$20.88¢10 442
#016
PLATE A2, FIXING
$5.11¢2 553
#017
WASHER, SPLINE (20MM)
$3.66¢1 829
#018
WASHER B, THRUST (20MM)
$3.45¢1 725
#019
WASHER, THRUST (12MM)
$2.68¢1 340
#020
WASHER, THRUST (17MM)
$0.53¢265
#021
CIRCLIP (20MM)
$4.16¢2 081
#022
BEARING, RADIAL BALL (17X42X12)
$21.15¢10 574
#023
BEARING, RADIAL BALL (6203) (C3)
$18.66¢9 332
#024
BEARING, RADIAL BALL (6201U)
$17.38¢8 688
#025
BEARING, RADIAL BALL (6204)
$23.03¢11 517
#026
OIL SEAL (20X34X7) (ARAI)
$7.49¢3 743
#027
BOLT, HEX. (6X10)
$0.74¢368
#028
CIRCLIP (OUTER) (17MM)
$0.80¢402
