SPEEDOMETER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

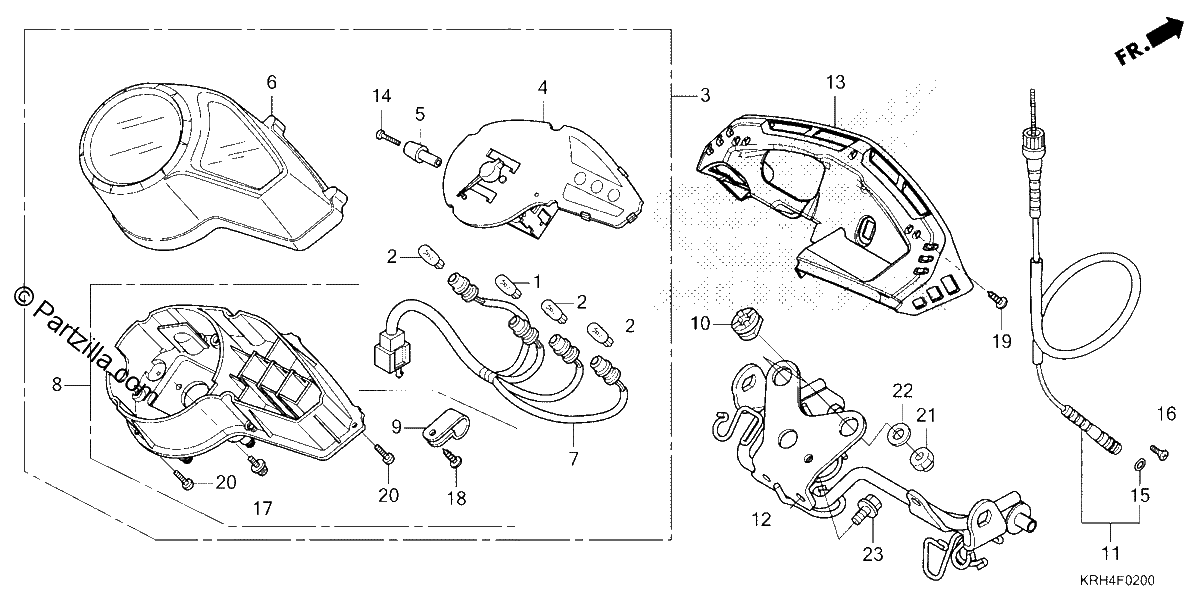

Diagrama de SPEEDOMETER

Repuestos

#001
34908-KVJ-911
BULB, WEDGE BASE (T10) (12V 3.4W)
$1.83¢914
1
#002
34910-GFM-901
BULB, WEDGE BASE (T10) (12V 1.7W)
$2.07¢1 035
1
#003
37200-KRH-J01
SPEEDOMETER ASSY. (MPH/KPH)
$325.96¢162 978
1
#004
37210-KRH-J01
SPEEDOMETER (MPH/KPH)
$175.24¢87 619
1
#005
37213-KRH-901
KNOB, TRIP
$10.00¢5 002
1
#006
37220-KRH-601
CASE ASSY. (UPPER)
$52.96¢26 479
1
#007
37224-KRH-J01
SOCKET
$77.31¢38 657
1
#008
37230-KRH-601
CASE ASSY. (LOWER)
$55.05¢27 525
1
#009
37233-KRH-901
CLAMP
$2.32¢1 162
1
#010
37243-MG2-000
RUBBER, SPEEDOMETER MOUNTING
$4.70¢2 352
1
#011
44830-K79-E01
CABLE ASSY., SPEEDOMETER
$18.77¢9 384
1
#012
61311-KRH-J00
STAY, FR. (UPPER)
$35.50¢17 750
1
#013
61318-KRH-J00
BASE, METER
$11.50¢5 750
1
#014
90158-KCJ-710
SCREW, PAN (2X6)
No Disponible
1
#015
91256-KK3-840
O-RING (10X1.5)
$2.15¢1 075
1
#016
93700-05018-0A
SCREW, OVAL (5X18)
$0.55¢276
1
#016
93700-05018-1A
SCREW, OVAL (5X18)
$0.55¢276
1
#017
93893-04010-08
SCREW-WASHER (4X10)
$1.59¢793
1
#018
93913-24220
SCREW, TAPPING (4X12)
$1.07¢535
1
#019
93913-24320
SCREW, TAPPING (4X14)
$1.03¢518
1
#020
93913-24420
SCREW, TAPPING (4X16) (PO)
$1.07¢535
1
#021
94021-06000-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#021
94021-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#021
94021-06020-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#021
94022-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#022
94103-06000
WASHER, PLAIN (6MM)
$1.17¢586
1
#023
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
