CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

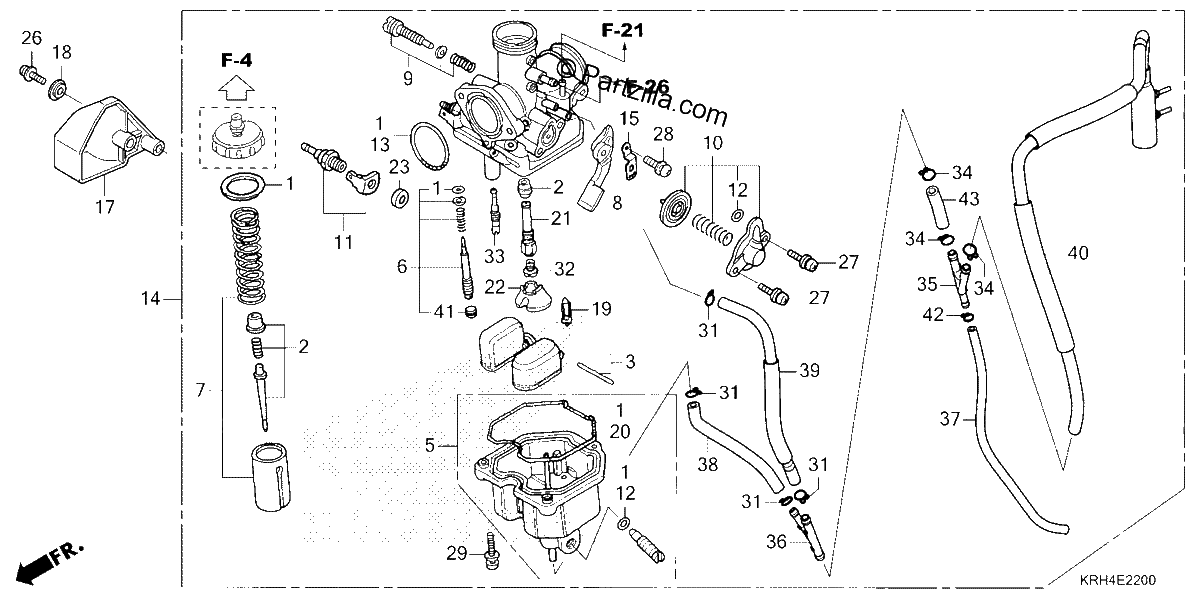

Diagrama de CARBURETOR

Repuestos

#001
16010-KCH-780
GASKET SET
$38.03¢19 013
1
#002
16012-KRH-J01
NEEDLE SET, JET
$35.33¢17 663
1
#003
16013-KEH-900
FLOAT SET
$65.58¢32 788
1
#005
16015-KRG-003
CHAMBER SET, FLOAT
$124.04¢62 019
1
#006
16016-KRH-J01
SCREW SET A
$21.86¢10 931
1
#007
16022-KRH-J01
VALVE SET, THROTTLE
$44.75¢22 375
1
#008
16025-KRF-B41
LEVER SET, CHOKE
$41.45¢20 725
1
#009
16028-KEB-G01
SCREW SET B
$13.95¢6 975
1
#009
16028-KEH-900
SCREW SET B
$13.95¢6 975
1
#010
16048-KRH-A01
VALVE SET, AIR CUT
$96.25¢48 125
1
#011
16070-KRH-681
HEATER Assembly.
$40.04¢20 019
1
#012
16075-GHB-640
O-RING (1.3X4.3)
$3.65¢1 825
1
#013
16075-GHB-B70
O-RING (2.4X29)
$9.47¢4 738
1
#014
16100-KRH-J01
CARBURETOR Assembly. (PDN2S A)
$602.79¢301 394
1
#015
16119-KRF-B41
PLATE, SETTING
$11.41¢5 706
1
#017
16151-KRH-950
COVER, CARBURETOR HEATER
$9.45¢4 725
1
#018
16152-KRH-900
COLLAR, CARBURETOR HEATER COVER
$13.59¢6 794
1
#019
16155-KFR-701
VALVE, FLOAT
$31.63¢15 813
1
#020
16163-KCS-920
GASKET, FLOAT CHAMBER
$13.83¢6 913
1
#021
16165-KRH-651
HOLDER, NEEDLE JET
$26.66¢13 331
1
#022
16168-382-014
HOLDER, JET
$10.46¢5 231
1
#023
16172-KCP-J01
COLLAR, SETTING
$2.24¢1 119
1
#026
90001-KGA-E00
SCREW-WASHER (4X12)
$2.19¢1 094
1
#027
93892-04010-00
SCREW-WASHER (4X10)
$1.19¢594
1
#027
93892-04010-10
SCREW-WASHER (4X10)
$1.19¢594
1
#028
93892-04010-18
SCREW-WASHER (4X10)
$1.47¢737
1
#028
93892-04010-08
SCREW-WASHER (4X10)
$1.47¢737
1
#029
93892-04016-08
SCREW-WASHER (4X16)
$0.94¢469
1
#031
95002-02089
CLIP, TUBE (B1 8)
$1.34¢669
1
#032
99101-GHB-1050
JET, MAIN (#105)
$7.76¢3 881
1
#032
99101-GHB-1020
JET, MAIN (#102)
$7.76¢3 881
1
#033
99103-KRH-0350
JET (#35X#35)
$9.24¢4 619
1
#034
16163-GHB-600
CLIP, TUBE
$2.66¢1 331
1
#035
16180-KYY-901
JOINT (THREE-WAY)
$6.72¢3 363
1
#036
16180-ML6-671
JOINT
$18.54¢9 269
1
#037
16196-KRH-J01
TUBE
$3.52¢1 763
1
#038
16197-KRH-J01
TUBE
$6.72¢3 363
1
#039
16198-KRH-J01
TUBE, AIR VENT
$6.89¢3 444
1
#040
16199-KRH-J01
TUBE, AIR VENT (NA USE ALT: 16100-KRH-J01)
No Disponible
1
#041
16312-KYK-911
CAP, ADJUSTING SCREW
$3.49¢1 744
1
#042
95002-02659
CLIP, TUBE (B6.5)
$1.41¢706
1
#043
95005-50001-50M
BULK HOSE, VACUUM (5X1000) (5X200)
$10.72¢5 363
1
