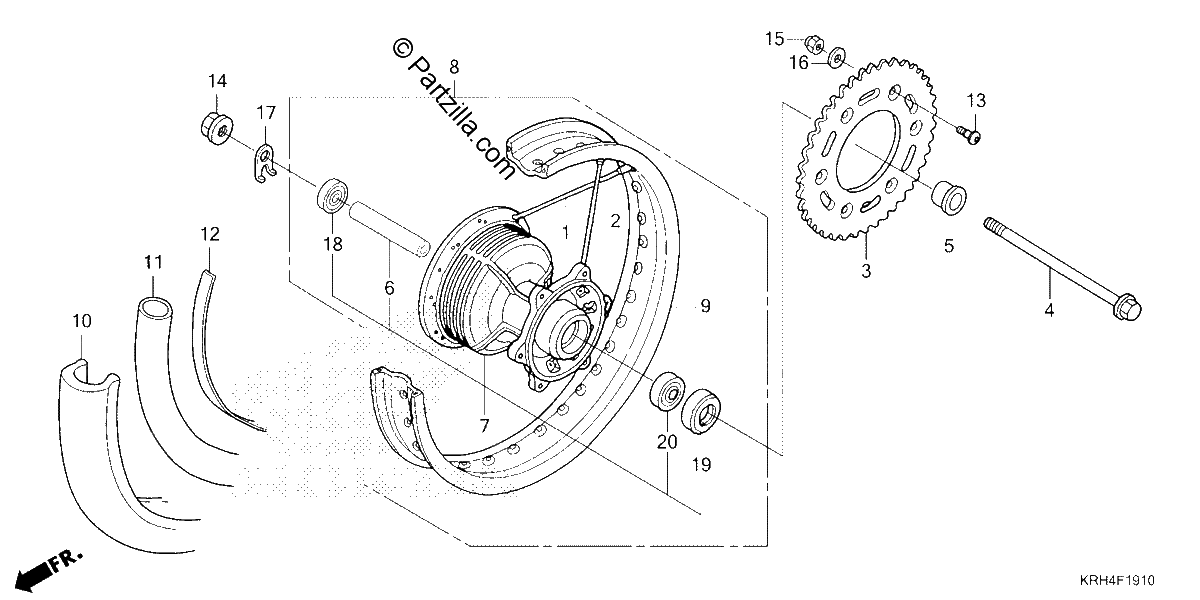

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPOKE SET A, Rear. (A10X166) (Right SIDE)
$4.46¢2 231
#002
SPOKE SET B, Rear. (A10X184) (L SIDE)
$2.73¢1 363
#003
SPROCKET, FINAL DRIVEN (49T)
$56.54¢28 269
#004
AXLE, RR. WHEEL
$29.88¢14 938
#005
COLLAR, Rear WHEEL
$15.71¢7 856
#006
COLLAR, Rear AXLE DISTANCE
$14.00¢7 000
#007
HUB SUB-Assembly., Rear. NH105 (MAT BLACK)
$391.85¢195 925
#008
WHEEL SUB-Assembly., Rear. NH105 (MAT BLACK)
$524.81¢262 406
#009
RIM, Rear WHEEL (2.15X17)
$106.11¢53 056
#010
TIRE, Rear. (110/90-17 M/C 60P) (CST)
$124.40¢62 200
#011
TUBE, TIRE (CHENG SHIN)
$32.00¢16 000
#012
FLAP, TIRE (CHENG SHIN)
$5.42¢2 713
#013
BOLT, SPROCKET FIXING
$1.82¢913
#014
NUT, FLANGE (16MM)
$7.40¢3 700
#015
NUT, FLANGE (8MM)
$4.06¢2 031
#015
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
#015
NUT, U (8MM)
$2.82¢1 412
#016
WASHER (8MM)
$1.38¢688
#017
WASHER, Rear AXLE
$9.74¢4 869
#018
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$10.90¢5 450
#018
BEARING, RADIAL BALL (6203UU)
$37.81¢18 906
#018
BEARING, RADIAL BALL (6203UU) (BH)
No Disponible
#019
OIL SEAL (25X47X6.5)
$7.21¢3 606
#020
BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)
$25.54¢12 769
#020
BEARING, RADIAL BALL (6303UU) (NSK)
$44.49¢22 244
#020
BEARING, RADIAL BALL (6303UU) (BH)
No Disponible
