CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

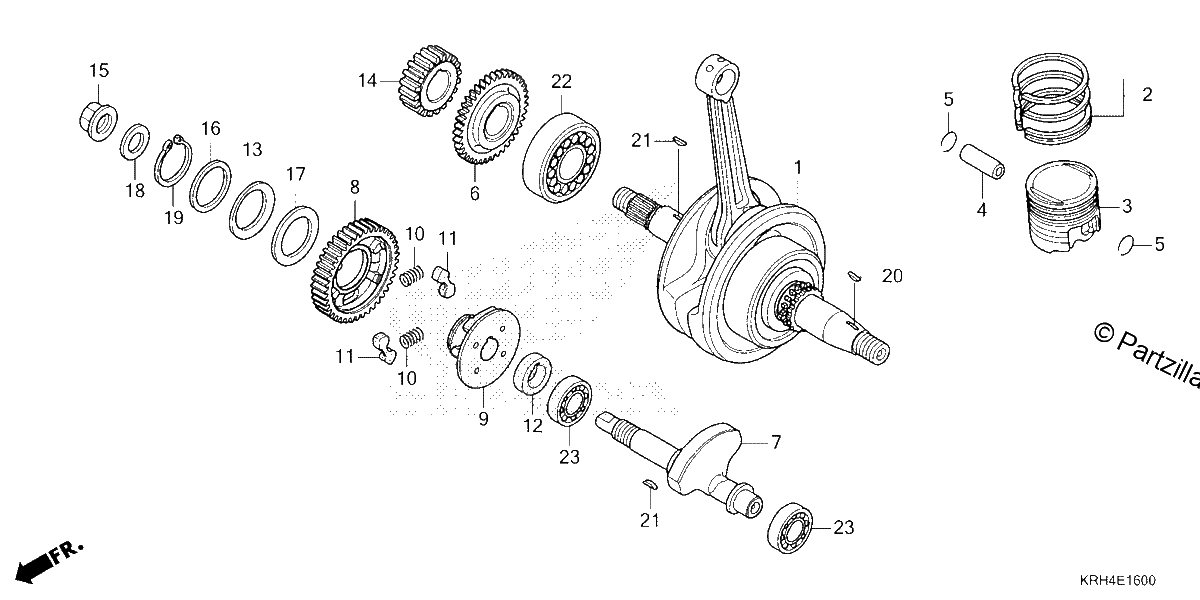

Diagrama de CRANKSHAFT PISTON

Repuestos

#001
13000-KTT-C00
CRANKSHAFT
$461.23¢230 613
1
#002
13011-KRM-305
RING SET, PISTON (STD) (RIKEN)
$62.69¢31 344
1
#003
13101-KRM-930
PISTON (STD)
$43.59¢21 794
1
#004
13111-KTT-900
PIN, PISTON
$12.11¢6 056
1
#005
13112-KRM-840
CLIP, PISTON PIN (14MM)
$0.94¢469
1
#006
13411-KTT-900
GEAR, BALANCER DRIVE (41T)
$93.14¢46 569
1
#007
13421-KRM-840
SHAFT, BALANCER
$132.63¢66 313
1
#008
13422-KTT-900
GEAR, BALANCER DRIVEN (41T)
$78.44¢39 219
1
#009
13426-KTT-900
BUSH, BALANCER DRIVEN GEAR
$34.40¢17 200
1
#010
13427-KTT-900
SPRING, DAMPER
$4.88¢2 438
1
#011
13428-KRM-840
RUBBER, DAMPER
$0.61¢306
1
#012
13429-KTT-900
COLLAR, BALANCER DRIVEN GEAR
$5.78¢2 888
1
#013
13538-KTT-900
SPRING, THRUST
$6.15¢3 075
1
#014
23121-KTT-900
GEAR, PRIMARY DRIVE (20T)
$62.91¢31 456
1
#015
90201-KRM-840
NUT, FLANGE (14MM)
$1.99¢994
1
#016
90402-KTT-900
WASHER (28.1X36X1.8)
$4.07¢2 037
1
#017
90403-KTT-900
WASHER (28.1X45X1.4)
$4.51¢2 256
1
#018
90501-KPT-A00
WASHER (14.1X29X2.8)
$3.94¢1 969
1
#019
90604-KTT-900
CIRCLIP (OUTER) (28)
$3.69¢1 844
1
#020
90741-KFB-000
KEY, WOODRUFF (4MM)
$3.65¢1 825
1
#021
90741-KGH-900
KEY, WOODRUFF (4MM)
$2.91¢1 456
1
#022
91001-KVC-D51
BEARING, ROLLER (30X58X17)
No Disponible
1
#023
91004-KTT-900
BEARING, RADIAL BALL SPL (6202)
$20.90¢10 450
1
