FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

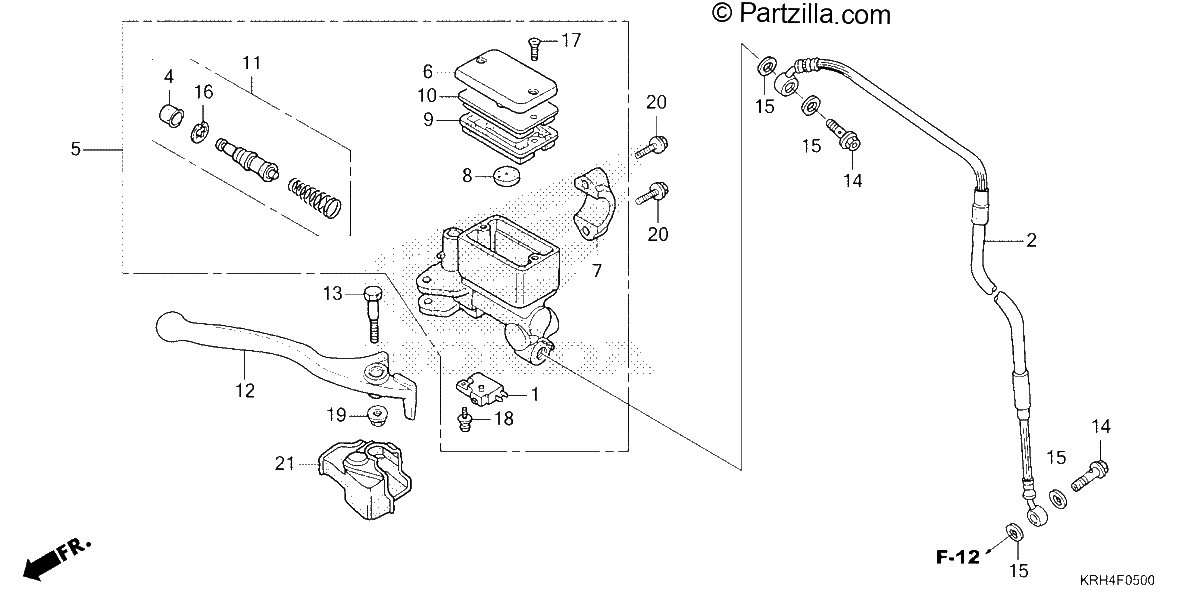

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#002
45125-K79-E01
HOSE, FR. BRAKE
$73.72¢36 863
1
#004
45504-410-003
BOOT
$14.24¢7 119
1
#005
45510-KRH-631
MASTER CYLINDER SUB-ASSY., FR.BRAKE
$240.03¢120 013
1
#006
45513-HA2-006
CAP, MASTER CYLINDER
$31.97¢15 987
1
#007
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#008
45518-MG3-016
SEPARATOR
$15.48¢7 738
1
#009
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#010
45521-HA2-006
PLATE, DIAPHRAGM
$12.60¢6 300
1
#011
45530-KRH-305
MASTER CYLINDER SET
$48.30¢24 150
1
#012
53175-KRH-901
LEVER, R. HANDLEBAR
$21.79¢10 894
1
#013
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
1
#014
90145-KRH-901
BOLT, OIL (10X22)
$7.88¢3 938
1
#015
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#016
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#017
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#017
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#018
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#018
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#019
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#020
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
#021
53176-KJ1-701
COVER, Right HANDLE LEVER
$10.26¢5 131
1
