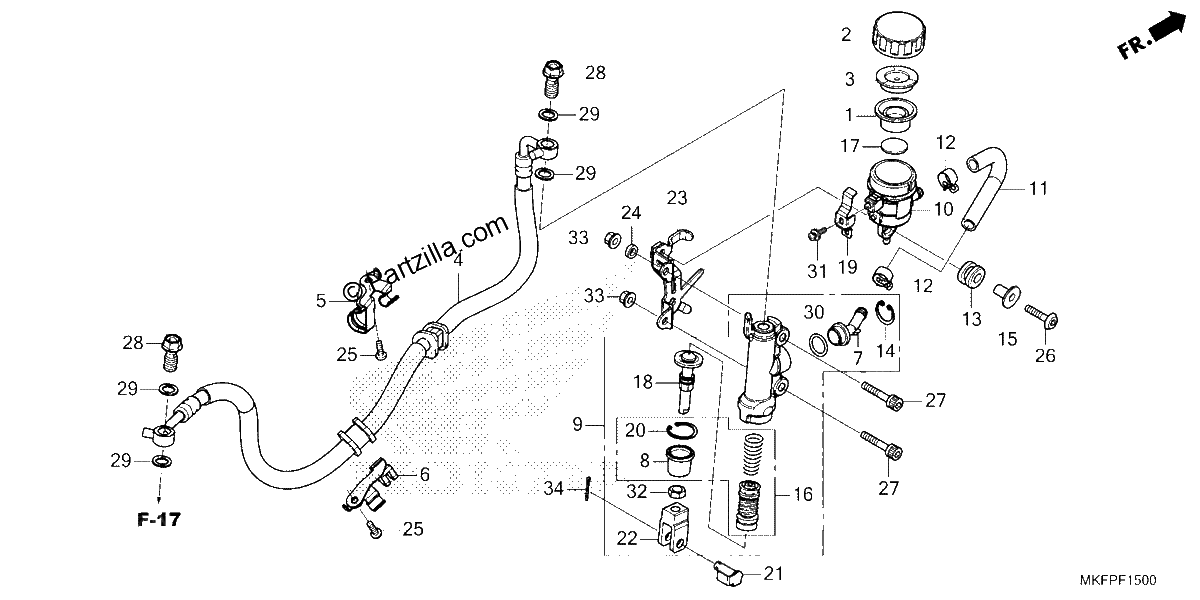

REAR BRAKE MASTER CYLINDER CBR1000RR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DIAPHRAGM
$16.21¢8 108
#002
CAP, OIL CUP
$47.13¢23 563
#003
PLATE, DIAPHRAGM
$12.54¢6 268
#004
HOSE, RR. BRAKE
$78.97¢39 485
#005
CLAMP A, RR. BRAKE HOSE
$9.02¢4 508
#006
CLAMP B, RR. BRAKE HOSE
$9.02¢4 508
#007
CONNECTOR, MASTER CYLINDER
$4.96¢2 478
#008
BOOT
$10.80¢5 399
#009
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$227.91¢113 953
#010
CUP, OIL
$24.92¢12 460
#011
HOSE, RR. MASTER CYLINDER
$13.12¢6 561
#012
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#013
RUBBER, OIL CUP MOUNTING
$4.99¢2 496
#014
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
#015
COLLAR (6.3X14)
$4.36¢2 179
#016
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
#017
FLOAT
$3.71¢1 857
#018
ROD, PUSH
$32.80¢16 399
#019
PLATE, STOP
$6.08¢3 042
#020
CIRCLIP
$2.30¢1 150
#021
PIN, BRAKE ROD
$15.71¢7 855
#022
JOINT, BRAKE ROD
$15.55¢7 774
#023
STAY, RR. MASTER CUP
$14.21¢7 107
#024
COLLAR (6.5X11X3)
$3.36¢1 679
#025
SCREW, PAN (5X15)
$3.21¢1 604
#026
BOLT, SPECIAL (6X25)
$2.64¢1 322
#027
BOLT, SOCKET (6X32)
$2.51¢1 254
#028
BOLT, OIL (10X22)
$8.18¢4 088
#029
WASHER, OIL BOLT
$4.46¢2 231
#030
O-RING (14.8X2.4)
$3.04¢1 518
#031
SCREW-WASHER (4X12)
$1.59¢793
#031
SCREW-WASHER (4X12)
$1.59¢793
#032
NUT, HEX. (8MM)
$1.47¢736
#033
NUT, FLANGE (6MM)
$0.74¢368
#034
PIN, SPLIT (2.0X15)
$1.23¢615
