DRIVEN FACE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

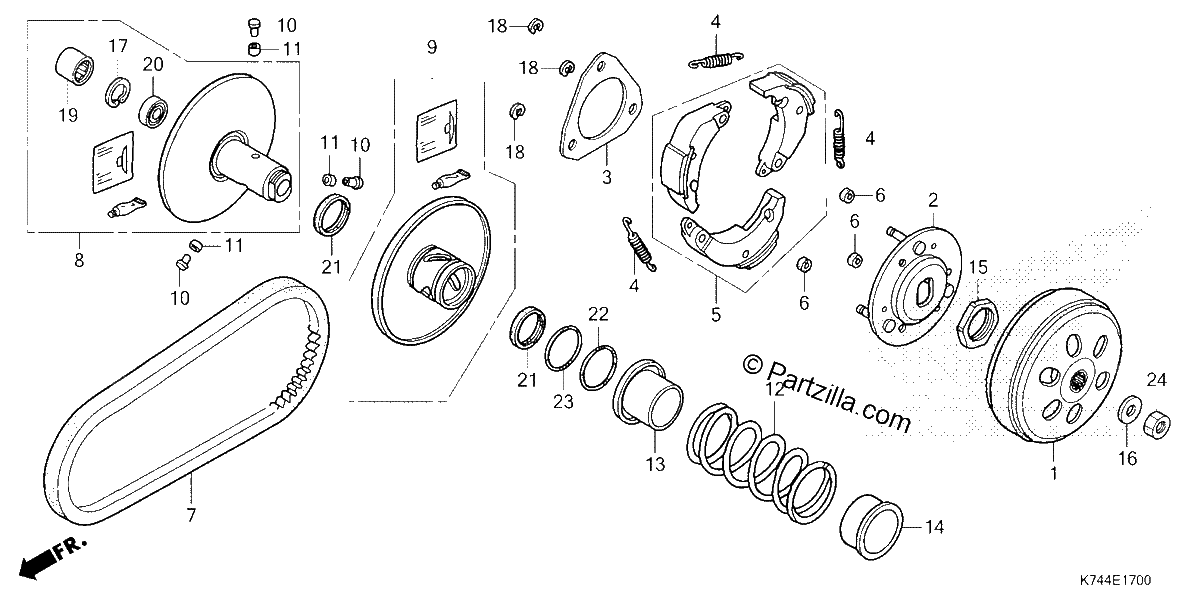

Diagrama de DRIVEN FACE

Repuestos

#001
22100-KWP-D01
CLUTCH OUTER (F.C.C.)
$27.83¢13 913
1
#002
22350-KWP-900
PLATE, DRIVE
$8.56¢4 281
1
#002
22350-KWP-D01
PLATE, DRIVE
$8.71¢4 356
1
#003
22361-KWP-D00
PLATE, CLUTCH SIDE
$1.41¢706
1
#004
22401-KGG-910
SPRING, CLUTCH
$7.52¢3 762
1
#005
22535-KWP-D00
WEIGHT SET, CLUTCH
$41.54¢20 769
1
#006
22804-148-000
RUBBER, CLUTCH DAMPER
$3.65¢1 825
1
#007
23100-KWP-D01
BELT, DRIVE (BANDO)
$17.04¢8 519
1
#008
23205-KWP-H00
FACE SET, DRIVEN (F.C.C.)
$30.85¢15 425
1
#009
23224-KWP-D01
FACE SET, MOVABLE DRIVEN (F.C.C.)
$22.44¢11 219
1
#010
23225-KSY-900
PIN, ROLLER GUIDE
$3.65¢1 825
1
#011
23226-GFM-900
ROLLER, GUIDE
$2.48¢1 238
1
#011
23226-KVB-900
ROLLER, GUIDE
$2.48¢1 238
1
#012
23233-KWP-D00
SPRING, DRIVEN FACE
$3.65¢1 825
1
#013
23237-KWP-D00
COLLAR, SEAL
$2.76¢1 381
1
#014
23238-KWP-900
COLLAR, SPRING
$1.70¢850
1
#015
90202-KPL-900
NUT, SPECIAL (28MM)
$0.84¢419
1
#016
90441-GY6-940
WASHER (12.2X29X2.5)
$3.61¢1 806
1
#017
90601-KWP-900
CIRCLIP (INNER) (28MM)
$0.41¢206
1
#018
90605-166-720
CIRCLIP (7MM)
$2.31¢1 156
1
#019
91109-GGC-G01
BEARING, NEEDLE (20X29X18) (F.C.C.)
$4.49¢2 244
1
#019
91109-KVY-902
BEARING, NEEDLE (20X29X18) (SCHAEFFLER)
$8.06¢4 031
1
#020
91004-GGC-G01
BEARING, RADIAL BALL (6902U) (F.C.C.)
$9.06¢4 531
1
#020
91009-KVY-961
BEARING, RADIAL BALL (6902U) (NSK)
$5.30¢2 650
1
#021
91211-K24-901
SEAL, DRIVEN FACE (34X39X3)
$1.74¢869
1
#022
91351-642-000
O-RING, PINION CAP
$5.11¢2 556
1
#023
91351-GR1-000
O-RING (38.5X2)
$3.65¢1 825
1
#024
94030-12200
NUT, HEX. (12MM)
$2.24¢1 119
1
