SIDE COVER REAR COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

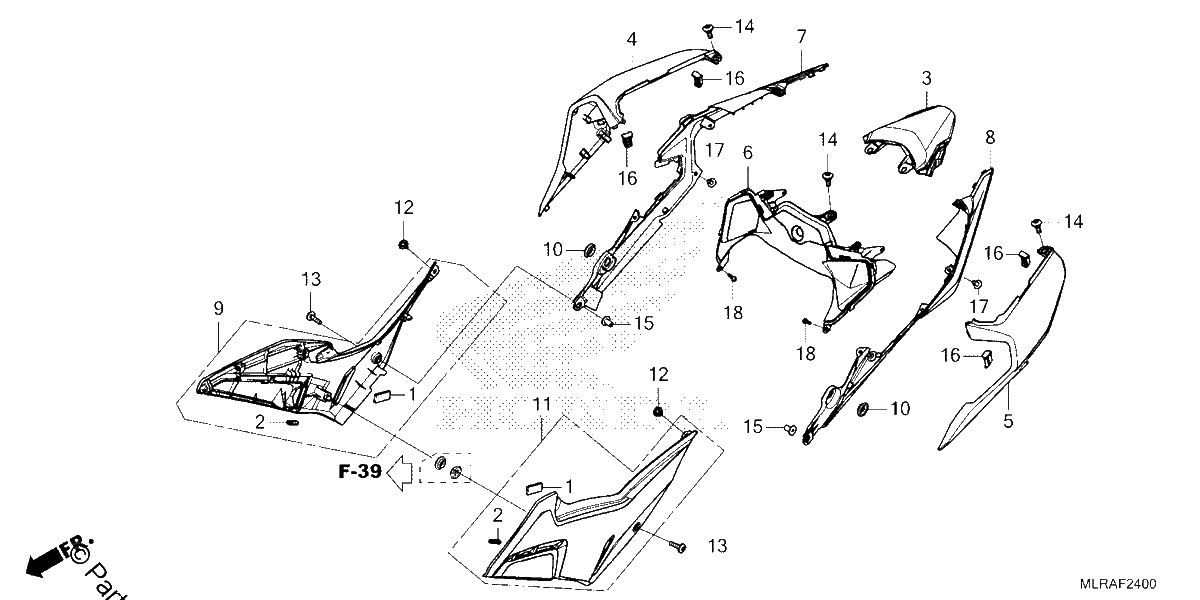

Diagrama de SIDE COVER REAR COWL

Repuestos

#001
50392-KVB-900
RUBBER, BATTERY (10X15X1)
$2.13¢1 063
1
#002
64122-MCZ-000
RUBBER, PROTECTOR
$2.31¢1 156
1
#003
77231-MLR-D00
COWL, Rear CENTER
$13.30¢6 650
1
#004
77240-MLR-A50ZA
COWL SET A, Right Rear. (TYPE2) (WL)
$75.39¢37 694
1
#004
77240-MLR-A50ZB
COWL SET A, Right Rear. (TYPE1) (WL)
$75.39¢37 694
1
#005
77250-MLR-A50ZA
COWL SET A, L Rear. (TYPE2) (WL)
$75.39¢37 694
1
#005
77250-MLR-A50ZB
COWL SET A, L Rear. (TYPE1) (WL)
$75.39¢37 694
1
#006
77261-MKP-J00
COWL, SEAT CENTER
$29.90¢14 950
1
#007
77271-MLR-D00
COWL B, Right Rear.
$16.66¢8 331
1
#008
77281-MLR-D00
COWL B, L Rear.
$16.66¢8 331
1
#009
83500-MLR-D00
COVER Assembly., Right SIDE
$17.21¢8 606
1
#010
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#011
83600-MLR-D00
COVER Assembly., L SIDE
$15.10¢7 550
1
#012
90116-K0A-E11
RIVET, PUSH (6MM)
$1.66¢831
1
#013
90117-MGZ-J80
SCREW, PAN (5X20)
$1.16¢581
1
#014
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#015
90156-GZ4-670
NUT, WELL (5MM)
$5.91¢2 956
1
#016
90651-K14-A31
CLIP, SLIDE
$1.74¢869
1
#017
90683-GR1-003
CLIP, BODY COVER
$3.65¢1 825
1
#018
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
