CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

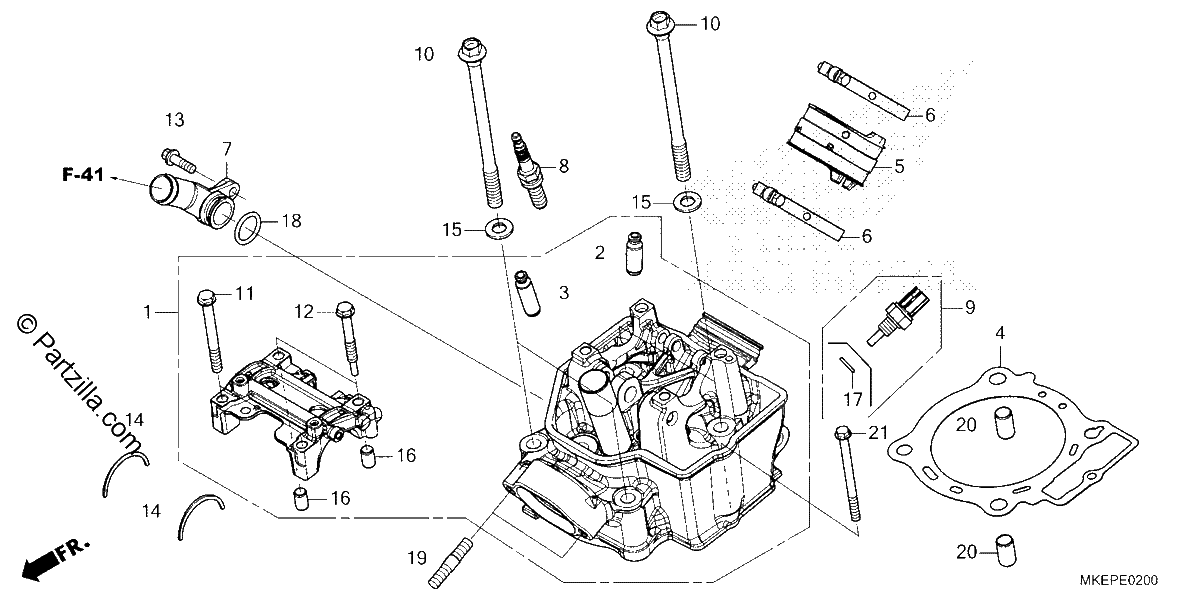

Diagrama de CYLINDER HEAD

Repuestos

#001
12010-MKE-AU0
CYLINDER HEAD ASSY.
$522.28¢261 142
1
#002
12204-MKE-P00
GUIDE, VALVE (OVER SIZE)
$19.19¢9 597
1
#003
12205-MEB-P00
GUIDE, EX. VALVE (O.S.)
$17.05¢8 527
1
#004
12251-MKE-AS1
GASKET, CYLINDER HEAD
$39.54¢19 769
1
#005
16211-MKE-AF0
INSULATOR, THROTTLE BODY
$18.76¢9 378
1
#006
16217-MKE-AF0
BAND, INSULATOR
$12.32¢6 158
1
#007
19501-MKE-A00
JOINT, WATER
$27.54¢13 771
1
#008
31909-MEN-A31
SPARK PLUG (SILMAR9A9S) (NGK)
$19.65¢9 827
1
#009
37870-KZR-601
SENSOR Assembly., WATER TEMPERATURE (PANASONIC)
$9.54¢4 773
1
#010
90001-MKE-A00
BOLT, FLANGE (10X143)
$10.22¢5 112
1
#011
90003-MKE-A00
BOLT, FLANGE (7X65)
$3.36¢1 679
1
#012
90005-MKE-A00
BOLT, SPECIAL (7X45)
$3.36¢1 679
1
#013
90020-GHB-660
BOLT, FLANGE (6X20)
$2.75¢1 374
1
#014
90446-KRN-670
WASHER, CAMSHAFT THRUST
$3.13¢1 564
1
#015
90453-MKE-A00
WASHER, PLAIN (10MM)
$3.36¢1 679
1
#016
90701-MR7-000
PIN, DOWEL (9X14)
$4.80¢2 398
1
#017
91307-PLC-004
O-RING (9.5X1.9) (PANASONIC)
$3.46¢1 731
1
#018
91312-KE7-003
O-RING (19X3) (NOK)
$3.09¢1 547
1
#019
92900-08022-0B
BOLT, STUD (8X22)
$2.53¢1 265
1
#020
94301-12200
PIN, DOWEL (12X20)
$2.71¢1 357
1
#021
96001-06080-00
BOLT, FLANGE (6X80)
$2.62¢1 311
1
