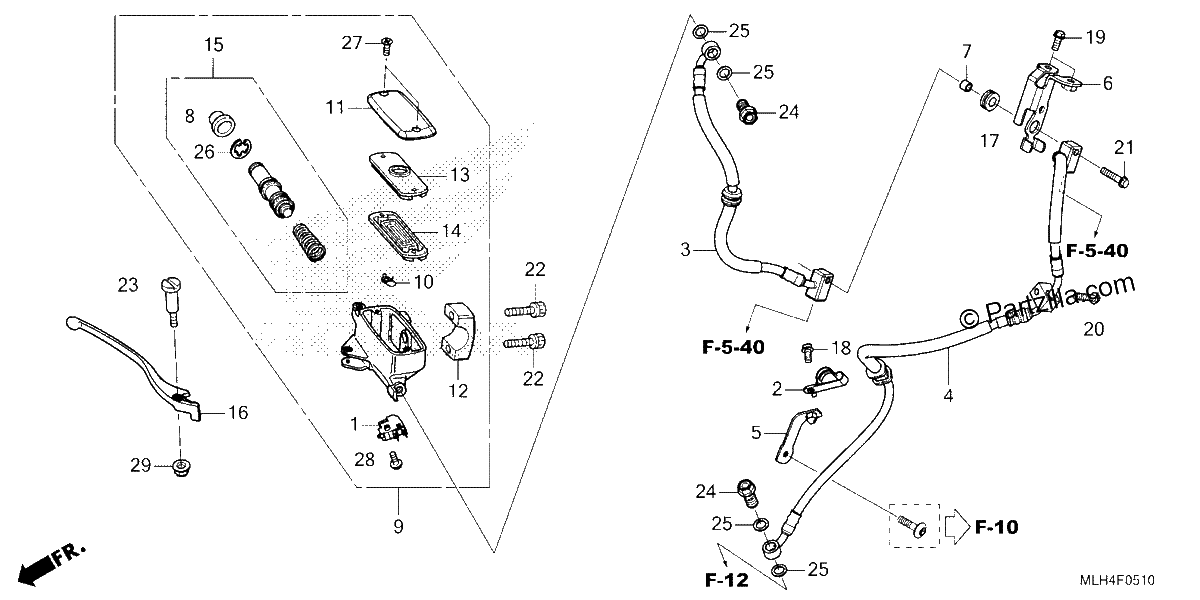

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
CLAMP, BRAKE HOSE
$3.63¢1 817
#003
HOSE A, FR. BRAKE
$49.04¢24 518
#004
HOSE D, Front BRAKE
$93.71¢46 857
#005
STAY, Front BRAKE HOSE
$4.51¢2 254
#006
STAY B, FR. BRAKE HOSE
$13.29¢6 647
#007
COLLAR, BRAKE HOSE STAY
$1.94¢972
#008
BOOT
$13.10¢6 549
#009
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$134.09¢67 045
#010
PROTECTOR
$4.78¢2 392
#011
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#012
HOLDER, MASTER CYLINDER (NISSIN)
$22.13¢11 063
#013
PLATE, DIAPHRAGM
$11.37¢5 687
#014
DIAPHRAGM
$16.26¢8 131
#015
MASTER CYLINDER SET, Front. (NISSIN)
$23.71¢11 857
#016
LEVER, Right HANDLE
$17.54¢8 769
#017
GROMMET, MAIN PIPE COVER
$1.15¢575
#018
BOLT, FLANGE (6X10)
$5.30¢2 651
#019
BOLT, FLANGE (6X12)
$2.75¢1 374
#020
BOLT, FLANGE (6X28)
$1.17¢586
#021
BOLT, FLANGE (6X32)
$1.12¢558
#022
BOLT, SOCKET (6X22)
$1.17¢586
#023
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#024
BOLT, OIL (10X22)
$8.18¢4 088
#025
WASHER, OIL BOLT
$4.46¢2 231
#026
CIRCLIP, INNER (18.8MM)
$0.80¢402
#027
SCREW, FLAT (4X12)
$1.07¢535
#027
SCREW, FLAT (4X12)
$1.07¢535
#028
SCREW-WASHER (4X12)
$1.59¢793
#028
SCREW-WASHER (4X12)
$1.59¢793
#029
NUT, FLANGE (6MM)
$0.74¢368
