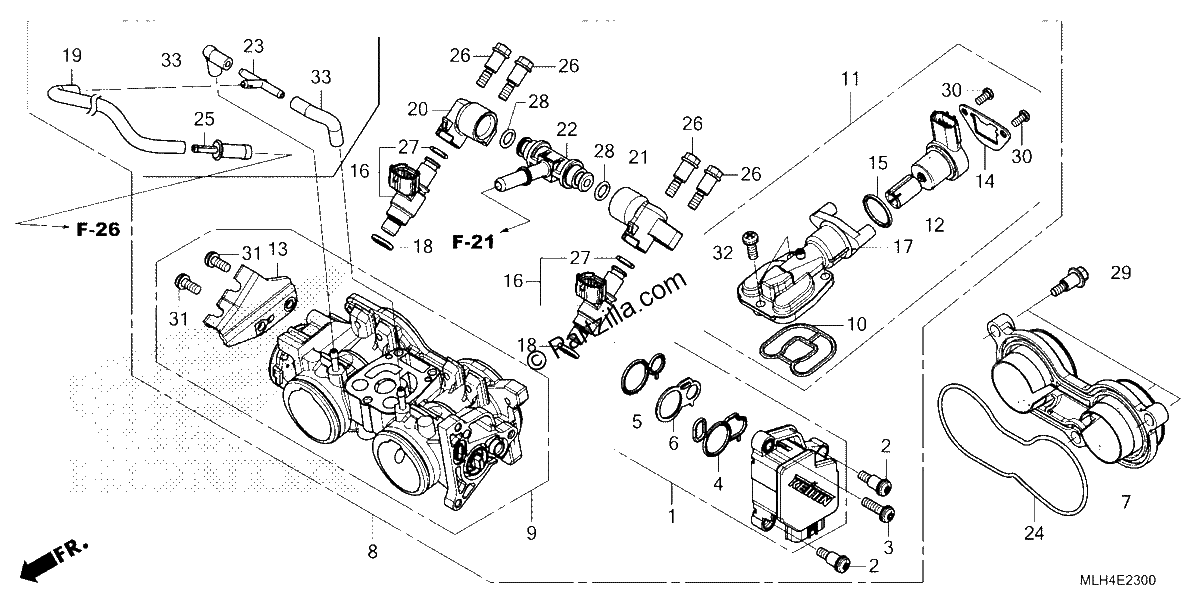

THROTTLE BODY
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SENSOR SET
$97.72¢48 858
#002
SCREW, TORX (5X8.7)
$3.37¢1 685
#003
SCREW, TORX (5X17)
$6.24¢3 122
#004
O-RING, SENSOR
$3.09¢1 547
#005
O-RING, SENSOR
$3.09¢1 547
#006
PLATE
$2.86¢1 432
#007
PLATE, FUNNEL SETTING
$12.33¢6 164
#008
BODY Assembly., THROTTLE (GQBUA A)
$914.84¢457 418
#009
BODY SET
$529.21¢264 604
#010
O-RING, AIR INJECTION CONTROL VALVE
$28.93¢14 467
#011
VALVE SET, IDLE AIR CONTROL
$271.32¢135 660
#012
MOTOR ASSY.
$86.04¢43 021
#013
STAY, WIRE
$46.09¢23 046
#014
PLATE, IDLE AIR CONTROL VALVE
$12.26¢6 129
#015
O-RING (17.8X1.9)
$3.60¢1 800
#016
INJECTOR ASSY., FUEL
$200.04¢100 021
#017
BODY, IDLE AIR CONTROL VALVE
$206.11¢103 057
#018
SEAL RING, INJECTOR
$2.83¢1 414
#019
TUBE, PURGE
$21.15¢10 574
#020
PIPE, FUEL (A)
$101.88¢50 939
#021
PIPE, FUEL (B)
$101.88¢50 939
#022
T-JOINT, FUEL
$23.63¢11 816
#023
JOINT A, VACUUM TUBE
$17.02¢8 510
#024
SEAL, THROTTLE BODY
$2.12¢1 058
#025
JOINT, TUBE
$4.48¢2 242
#026
BOLT, SHOULDER
$3.36¢1 679
#027
O-RING (7.8X1.9)
$3.75¢1 874
#028
O-RING (7.47X3.6)
$3.46¢1 731
#029
SCREW, PAN (5MM)
$4.55¢2 277
#030
SCREW, PAN (4X8)
$1.07¢535
#030
SCREW, PAN (4X8)
$1.07¢535
#031
SCREW-WASHER (5X12)
$1.36¢678
#031
SCREW-WASHER (5X12)
$1.36¢678
#032
SCREW-WASHER (5X14)
$1.30¢650
#032
SCREW-WASHER (5X14)
$1.30¢650
#033
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$10.42¢5 210
