WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

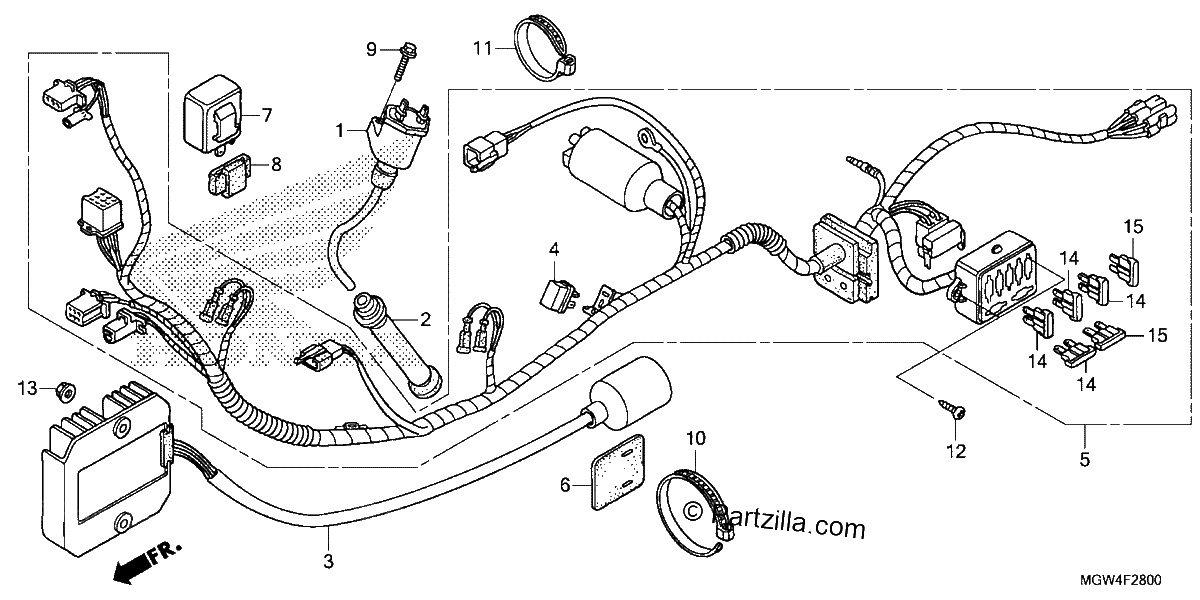

Diagrama de WIRE HARNESS

Repuestos

#001
30510-MN1-680
COIL, IGNITION
$90.59¢45 294
1
#002
30700-KF0-163
CAP Assembly., NOISE SUPPRESSOR
No Disponible
1
#002
30700-MK4-611
CAP ASSY., NOISE SUPPRESSOR
$21.97¢10 987
1
#002
30700-MK4-612
CAP Assembly.
$21.97¢10 987
1
#003
31600-MY6-671
RECTIFIER Assembly., REGULATE (SHINDENGEN)
$418.63¢209 313
1
#004
31700-124-008
RECTIFIER Assembly., SILICON (SHINDENGEN)
$34.49¢17 244
1
#005
32100-MY6-670
WIRE HARNESS
$583.75¢291 875
1
#006
32618-MN1-650
RUBBER, PROTECTOR
$7.25¢3 625
1
#007
38301-GN3-672
RELAY, TURN SIGNAL (MITSUBA)
$71.78¢35 888
1
#008
38306-GE7-000
SUSPENSION, TURN SIGNAL RELAY
$5.75¢2 875
1
#009
90197-MN5-000
BOLT, FLANGE (5X20)
$3.40¢1 700
1
#010
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
#011
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#012
93901-25220
SCREW, TAPPING (5X12)
$1.13¢563
1
#013
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#014
98200-31000
FUSE, BLADE (10A)
$1.68¢838
1
#015
98200-32000
FUSE, BLADE (20A)
$1.68¢838
1
