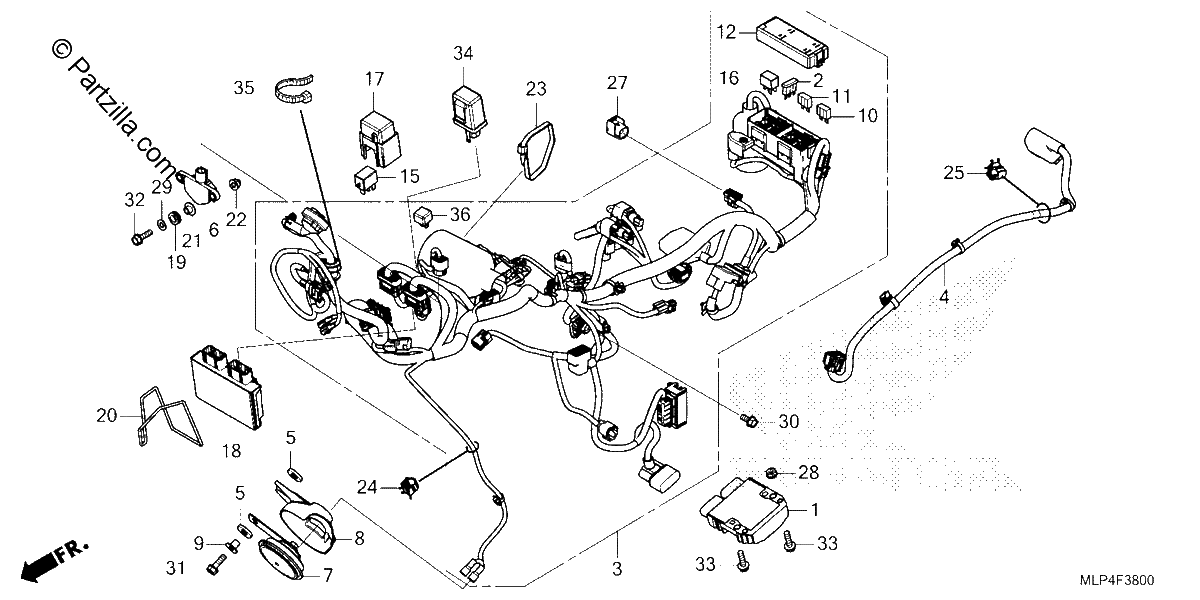

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$220.61¢110 306
#002
DIODE ASSY., THREE WAY (SUMITOMO)
$12.64¢6 319
#003
WIRE HARNESS
$1315.31¢657 656
#004
SUB-HARNESS, RR.
$28.64¢14 319
#005
RUBBER, TAILLIGHT BRACKET
$3.24¢1 619
#006
SENSOR ASSY., BANK ANGLE (M6)
$139.65¢69 825
#007
HORN (HIGH)
$30.64¢15 319
#008
HEAT GUARD, HORN
$5.39¢2 694
#009
COLLAR, HORN SETTING
$2.24¢1 119
#010
FUSE, BLADE (10A)
$3.76¢1 881
#011
FUSE, BLADE (30A)
$3.11¢1 556
#012
COVER (UPPER)
$27.54¢13 769
#015
RELAY Assembly., POWER (MICRO ISO 4P) (MITSUBA)
$12.48¢6 238
#016
RELAY, POWER (MICRO ISO 4P)
$5.64¢2 819
#017
COVER, RELAY (2P)
$4.65¢2 325
#018
PGM-FI UNIT
$519.80¢259 900
#019
RUBBER, SIDE COVER
$2.50¢1 250
#020
BAND, TOOL
$3.44¢1 719
#021
COLLAR, BANK ANGLE SENSOR
$2.95¢1 475
#022
NUT, CAP (6MM)
$3.65¢1 825
#023
BAND, WIRE HARNESS
$31.72¢15 862
#024
CLIP, CABLE (8MM)
$2.81¢1 406
#025
CLIP, CABLE (10MM)
$2.81¢1 406
#027
CAP, DUMMY (6P) (RED)
$28.94¢14 469
#028
NUT, FLANGE (6MM)
$1.86¢931
#029
WASHER, PLAIN (6MM)
$0.84¢419
#030
BOLT, FLANGE (6X14)
$2.09¢1 044
#031
BOLT, FLANGE (6X20)
$2.09¢1 044
#032
BOLT, FLANGE (6X20)
$0.47¢238
#033
BOLT, FLANGE (6X22)
$1.21¢606
#034
RELAY, TURN SIGNAL (LED)
$73.24¢36 619
#035
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
#036
RECTIFIER, SILICON
$30.66¢15 331
