SWINGARM

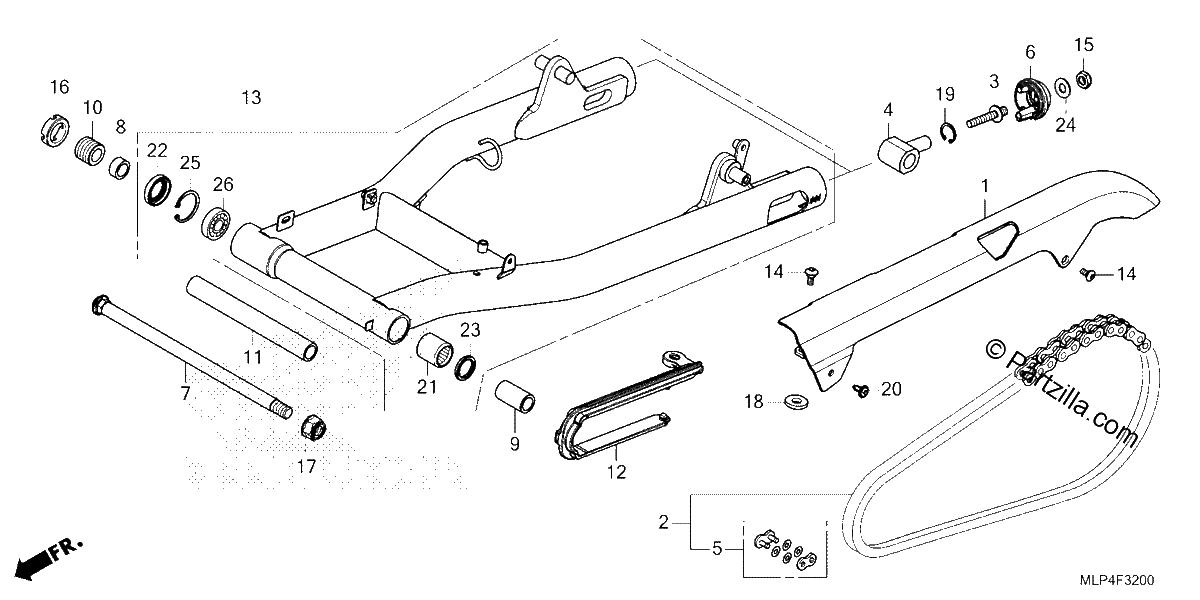

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CASE, DRIVE CHAIN
$12.95¢6 474
#002
CHAIN, DRIVE (DID 520VF2-120ZB) (DAIDO) (STANDARD LINK 110L)
$131.91¢65 953
#002
CHAIN, DRIVE (RK520MOZX-120LJFZ) (RK) (STANDARD LINK 110L)
$305.67¢152 835
#003
BOLT, CHAIN ADJUSTING
$2.00¢1 001
#004
ADJUSTER, CHAIN
$15.79¢7 895
#005
MASTER LINK (DAIDO)
$15.55¢7 774
#005
MASTER LINK (RK)
$26.32¢13 162
#006
CAP, SWINGARM END
$13.34¢6 670
#007
BOLT, SWINGARM PIVOT
$9.23¢4 617
#008
COLLAR B, SWINGARM PIVOT
$5.88¢2 938
#009
COLLAR, PIVOT
$14.92¢7 458
#010
BOLT, PIVOT ADJUSTING
$8.65¢4 324
#011
COLLAR, PIVOT DISTANCE
$12.35¢6 176
#012
SLIDER, CHAIN
$8.61¢4 307
#013
SWINGARM SUB-ASSY., RR.
$284.60¢142 301
#014
SCREW, SPECIAL (6X14)
$1.26¢633
#015
NUT, U (10MM)
$2.42¢1 208
#016
NUT, LOCK (26X1.5)
$10.33¢5 164
#017
NUT, U (14MM) (FUJI SEIMITSU)
$6.96¢3 479
#018
WASHER (10MM)
$6.37¢3 186
#019
CIRCLIP (INNER) (20)
$1.85¢926
#020
CLIP, BODY
$2.31¢1 156
#021
BEARING, NEEDLE (22X29X30) (NTN)
$46.30¢23 149
#021
BEARING, NEEDLE (THOMPSON)
$39.35¢19 676
#022
DUST SEAL (22X35X7) (ARAI)
$8.31¢4 157
#022
DUST SEAL (22X35X7) (NOK)
$8.31¢4 157
#023
DUST SEAL (22X29X4) (ARAI)
$6.60¢3 301
#024
WASHER, PLAIN (10MM)
$1.26¢633
#025
CIRCLIP, INNER (35MM)
$2.30¢1 150
#026
BEARING, RADIAL BALL (6202)
$15.59¢7 797
