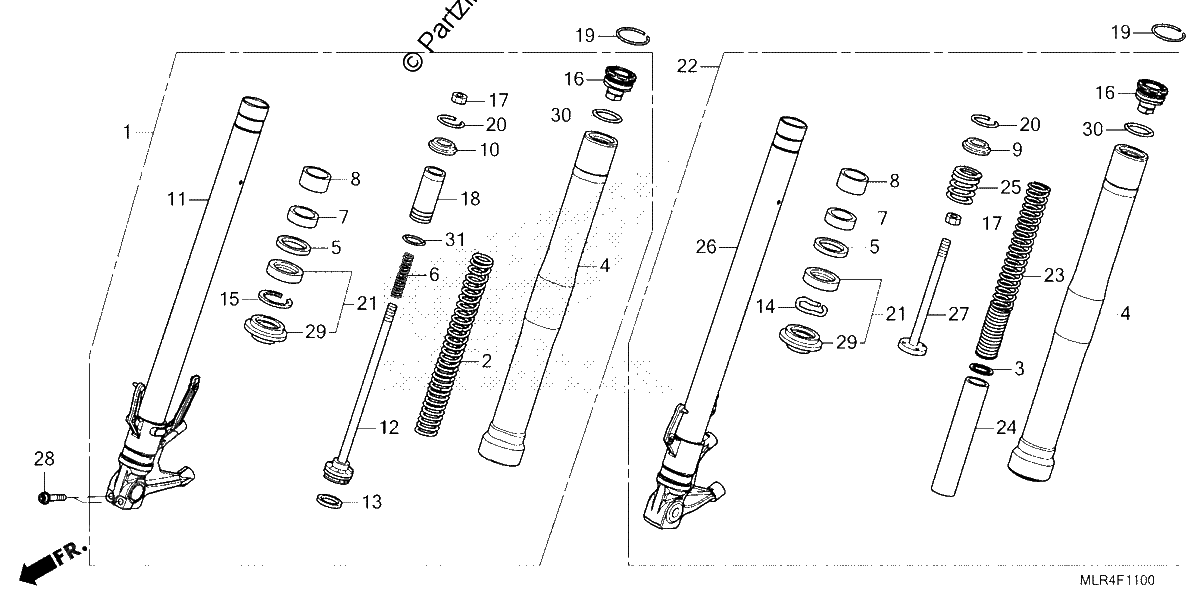

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK Assembly., Right Front.
$413.47¢206 736
#002
SPRING, R. FR. FORK
$25.07¢12 535
#003
JOINT, SPRING
$3.71¢1 857
#004
TUBE (OUTER)
$307.99¢153 997
#005
RING, BACK-UP (SHOWA)
$10.38¢5 192
#006
SPRING, Right REBOUND
$3.24¢1 621
#007
BUSH, GUIDE
$8.10¢4 048
#008
BUSH, SLIDER
$8.10¢4 048
#009
SEAT, STOPPER
$10.95¢5 474
#010
SEAT, R. STOPPER
$7.60¢3 801
#011
PIPE, R. SLIDE
$356.59¢178 296
#012
ROD, PISTON
$58.48¢29 239
#013
RING, PISTON
$1.64¢822
#014
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
#015
CIRCLIP (INNER)
$5.19¢2 593
#016
BOLT, Front FORK
$92.26¢46 132
#017
NUT, HEX.
$16.21¢8 108
#018
CASE, ROD GUIDE
$51.43¢25 714
#019
RING, STOPPER
$3.13¢1 564
#020
RING, STOPPER
$2.64¢1 322
#021
SEAL SET, FR. FORK
$26.84¢13 420
#022
FORK Assembly., L Front.
$382.93¢191 463
#023
SPRING, L. FR. FORK
$35.77¢17 883
#024
COLLAR B, SPRING
$20.49¢10 247
#025
SPRING, L. REBOUND
$5.36¢2 680
#026
PIPE, L. SLIDE
$367.21¢183 603
#027
ROD
$16.46¢8 228
#028
BOLT, FLANGE SOCKET (8X40)
$2.27¢1 133
#029
DUST SEAL
$11.40¢5 698
#030
O-RING (39.7X2.4)
$2.51¢1 254
#031
O-RING (33.2X2.4)
$4.20¢2 099
