EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

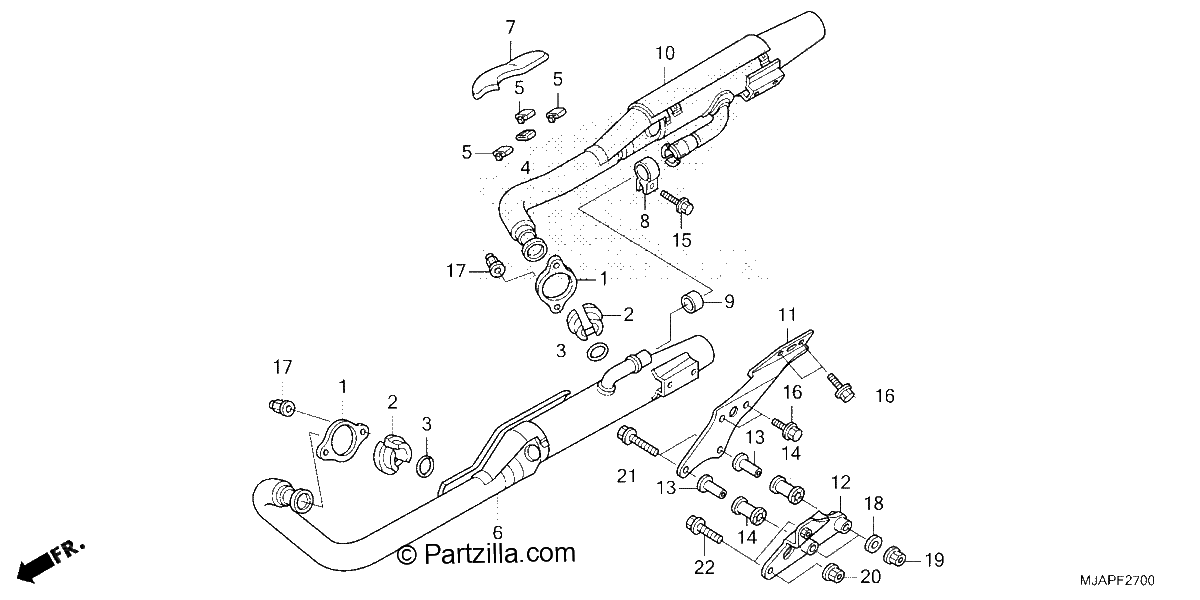

Diagrama de EXHAUST MUFFLER

Repuestos

#001
18231-MJA-AT1
JOINT, EX. PIPE
$17.46¢8 731
1
#002
18233-MJA-AT0
COLLAR, EX. PIPE JOINT
$15.74¢7 869
1
#003
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#004
18293-MFE-B00
RUBBER, PROTECTOR GASKET
$3.84¢1 919
1
#005
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#006
18300-MJA-AT1
MUFFLER, FR. EX.
$1815.42¢907 713
1
#007
18315-MJA-AT1
PROTECTOR, RR. EX.
$102.40¢51 200
1
#008
18374-ML4-003
BAND, L EX PIPE
$19.01¢9 506
1
#009
18391-ML8-000
GASKET, MUFFLER
$10.76¢5 381
1
#010
18400-MJA-AT1
MUFFLER, RR. EX.
$1815.42¢907 713
1
#011
18415-MFE-670
STAY, MUFFLER
$67.36¢33 681
1
#012
18455-MFE-670
BRACKET, MUFFLER
$133.55¢66 775
1
#013
50607-KK6-000
COLLAR, MOUNTING RUBBER
$10.67¢5 337
1
#014
50608-KK6-000
RUBBER, MUFFLER MOUNTING
$9.45¢4 725
1
#015
90125-MGR-670
BOLT, FLANGE (8X32)
$3.91¢1 956
1
#016
90166-S87-A00
BOLT, FLANGE (8X16)
$0.90¢450
1
#017
90304-ME1-670
NUT, CAP (8MM)
$7.21¢3 606
1
#018
90534-011-000
WASHER (8.3MM)
$1.90¢950
1
#019
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#020
90303-428-900
NUT, FLANGE (10MM)
$4.06¢2 031
1
#020
94050-10070
NUT, FLANGE (10MM)
$4.06¢2 031
1
#021
95701-08055-07
BOLT, FLANGE (8X55)
$2.38¢1 188
1
#022
95701-10050-07
BOLT, FLANGE (10X50)
$2.38¢1 188
1
