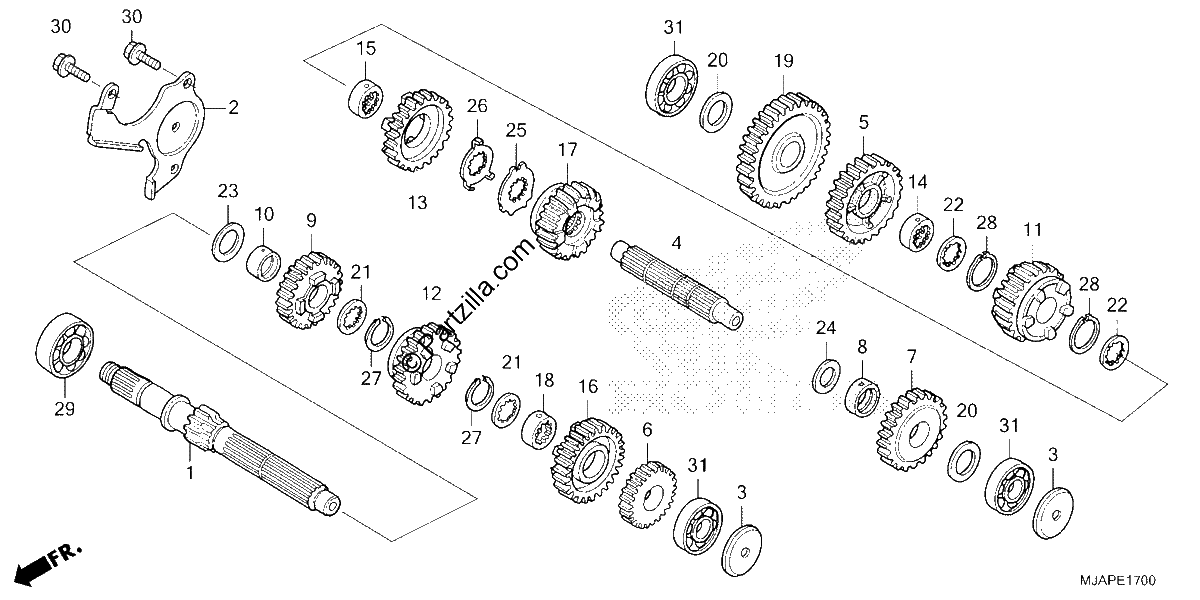

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (15T)
$179.69¢89 844
#002
PLATE, BEARING SETTING
$20.87¢10 436
#003
PLATE, OIL GUIDE
$5.77¢2 886
#004
COUNTERSHAFT
$173.89¢86 946
#005
GEAR, COUNTERSHAFT FIRST (36T)
$131.57¢65 786
#006
GEAR, MAINSHAFT SECOND (20T)
$63.46¢31 728
#007
GEAR, COUNTERSHAFT SECOND (31T)
$113.68¢56 839
#008
BUSH (20X24X10.35)
$10.32¢5 158
#009
GEAR, MAINSHAFT THIRD (23T)
$116.86¢58 432
#010
BUSH (25X28X13.5)
$23.03¢11 517
#011
GEAR, COUNTERSHAFT THIRD (27T)
$135.85¢67 925
#012
GEAR, MAINSHAFT FOURTH (25T)
$135.85¢67 925
#013
GEAR, COUNTERSHAFT FOURTH (24T)
$116.86¢58 432
#014
COLLAR, SPLINE (28X11.5)
$17.96¢8 981
#015
COLLAR, SPLINE (28X13.5)
$36.63¢18 314
#016
GEAR, MAINSHAFT FIFTH (27T)
$122.61¢61 307
#017
GEAR, COUNTERSHAFT FIFTH (23T)
$124.44¢62 221
#018
COLLAR, SPLINE
$36.35¢18 176
#019
GEAR, FINAL DRIVE (39T)
$102.67¢51 336
#020
WASHER A, THRUST (20MM)
$3.79¢1 897
#021
WASHER, SPLINE (25X31X1.5)
$4.25¢2 128
#022
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
#023
WASHER, THRUST (25MM)
$3.00¢1 501
#024
WASHER, THRUST (20X0.90)
$5.69¢2 846
#025
WASHER, SPLINE (28MM)
$6.58¢3 289
#026
WASHER, LOCK (28MM)
$6.58¢3 289
#027
CIRCLIP (25MM)
$4.17¢2 087
#028
CIRCLIP (28MM)
$4.17¢2 087
#029
BEARING, RADIAL BALL (63/22) (FUJIKOSHI)
$26.04¢13 018
#029
BEARING, RADIAL BALL (63/22)
$26.04¢13 018
#030
BOLT, FLANGE (6X16)
$1.92¢960
#031
BEARING, RADIAL BALL (6204)
$13.06¢6 532
