CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

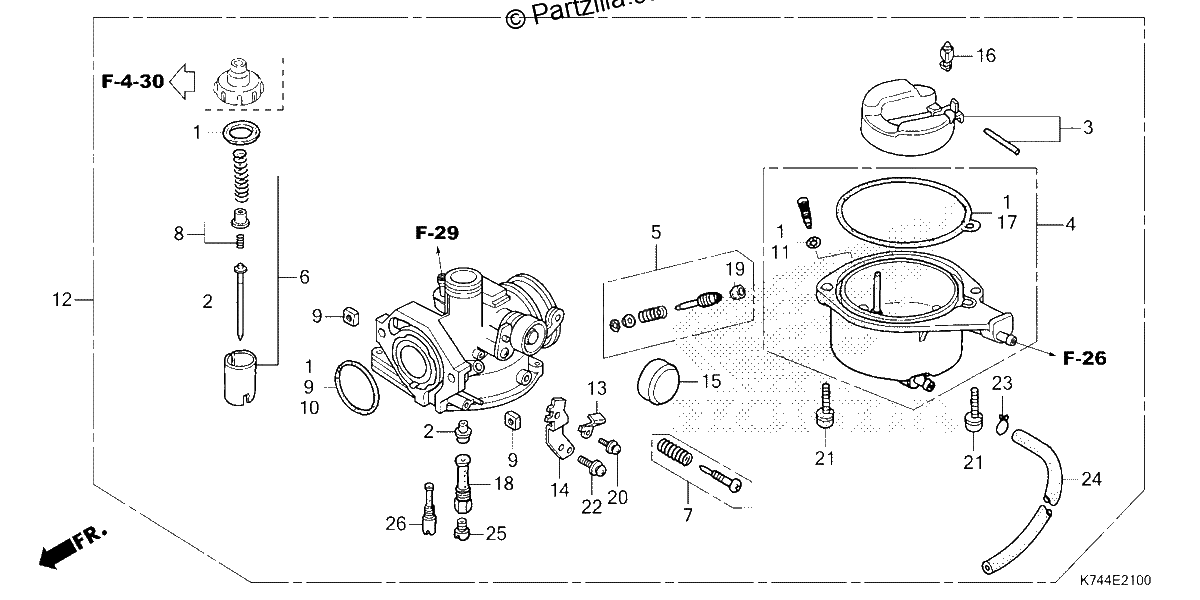

Diagrama de CARBURETOR

Repuestos

#001
16010-K24-901
GASKET SET
$2.31¢1 156
1
#002
16012-K74-F01
NEEDLE SET, JET
$5.20¢2 600
1
#003
16013-KRB-901
FLOAT SET
$3.63¢1 813
1
#004
16015-K24-901
CHAMBER SET, FLOAT
$7.75¢3 875
1
#005
16016-K74-F01
SCREW SET
$4.20¢2 100
1
#006
16022-K74-F01
VALVE SET, THROTTLE
$8.43¢4 213
1
#007
16028-KPL-901
SCREW SET
$2.95¢1 475
1
#008
16037-KRS-601
PLATE SET, VALVE
$17.88¢8 938
1
#009
16041-KPL-901
NUT SET, SQUARE
$3.28¢1 638
1
#010
16075-KPL-901
O-RING
$0.45¢225
1
#011
16076-KPL-901
O-RING
$0.22¢112
1
#012
16100-K74-A01
CARBURETOR ASSY. (PB5UB A)
$88.30¢44 150
1
#013
16119-KPL-901
PLATE, STAY
$0.51¢256
1
#014
16119-KWP-901
STAY, WIRE
$0.94¢469
1
#015
16148-KPL-901
CAP, CHOKE DUST
$0.31¢156
1
#016
16155-KPL-901
VALVE, FLOAT
$7.03¢3 513
1
#017
16163-KWS-901
GASKET, FLOAT CHAMBER
$2.31¢1 156
1
#018
16165-KVT-D01
HOLDER, NEEDLE JET
$0.84¢419
1
#019
16312-KYK-911
CAP, ADJUSTING SCREW
$3.49¢1 744
1
#020
93892-04010-08
SCREW-WASHER (4X10)
$1.47¢737
1
#020
93892-04010-18
SCREW-WASHER (4X10)
$1.47¢737
1
#021
93892-04018-08
SCREW-WASHER (4X18)
$1.25¢625
1
#022
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#022
93892-05012-18
SCREW-WASHER (5X12)
$1.47¢737
1
#023
95002-02659
CLIP, TUBE (B6.5)
$1.41¢706
1
#024
95005-35001-50M
BULK HOSE, VACUUM (3.5X1000) (3.5X50)
$16.04¢8 019
1
#025
99101-GCK-0850
JET, MAIN (#85)
$44.96¢22 481
1
#025
99101-HF7-0800
JET, MAIN (#80)
$10.19¢5 094
1
#026
99103-GFP-0350
JET, SLOW (#35)
$10.71¢5 356
1
