CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

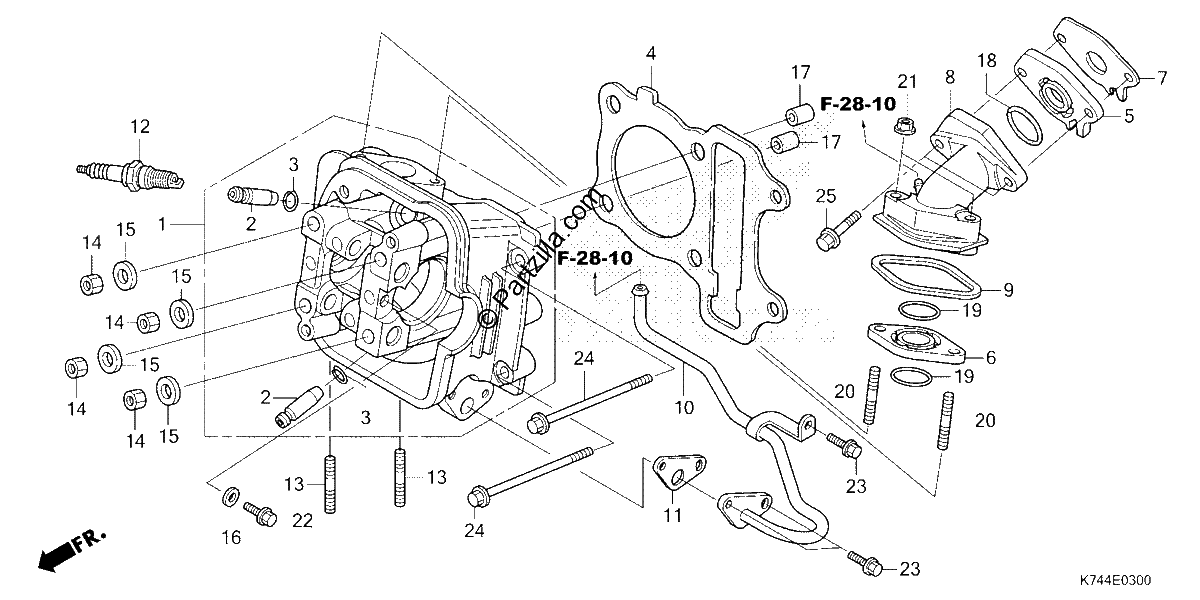

Diagrama de CYLINDER HEAD

Repuestos

#001
12200-KWP-H00
CYLINDER HEAD
$166.19¢83 094
1
#002
12204-KWP-P00
GUIDE, VALVE (OVER SIZE)
$1.80¢900
1
#003
12206-KPL-900
CLIP, VALVE GUIDE
$4.40¢2 200
1
#004
12251-KWP-D01
GASKET, CYLINDER HEAD (STD/0.25/0.50)
$2.15¢1 075
1
#005
16211-KWP-900
INSULATOR A, CARBURETOR
$0.93¢463
1
#006
16212-KWP-900
INSULATOR B, CARBURETOR
$0.96¢481
1
#007
16229-KRP-602
GASKET A, CARBURETOR INSULATOR
$0.25¢125
1
#008
17110-K74-N00
PIPE, INLET
$4.74¢2 369
1
#009
17113-KWP-900
RUBBER, IN. PIPE SEAL
$0.33¢163
1
#010
18640-KWP-D00
PIPE, AIR FEED
$2.92¢1 463
1
#011
18645-KVY-900
GASKET, AIR FEED PIPE
$1.89¢944
1
#012
31917-KWP-D01
SPARK PLUG (MR7C-9N) (NGK)
$6.52¢3 262
1
#012
31917-KWP-H02
SPARK PLUG (UR6DE0) (BOSCH)
$4.71¢2 356
1
#013
90004-KGF-910
BOLT, STUD (7X17)
$2.73¢1 363
1
#014
90201-GCC-000
NUT, HEX. (7MM)
$1.21¢606
1
#015
90401-GCC-000
WASHER (7.2X16X2.5)
$2.76¢1 381
1
#016
90402-KWP-900
WASHER (6MM)
$0.22¢112
1
#017
90701-KPL-900
PIN, DOWEL SPECIAL (8X14)
$0.19¢94
1
#018
91304-KWP-900
O-RING (25X2.4)
$0.45¢225
1
#019
91308-GFM-900
O-RING (25.5X1.9)
$6.45¢3 225
1
#020
92900-06035-0B
BOLT, STUD (6X35)
$2.50¢1 250
1
#021
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#022
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#023
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#024
95701-06100-00
BOLT, FLANGE (6X100)
$3.61¢1 806
1
#025
96001-06028-00
BOLT, FLANGE (6X28)
$2.79¢1 394
1
