CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

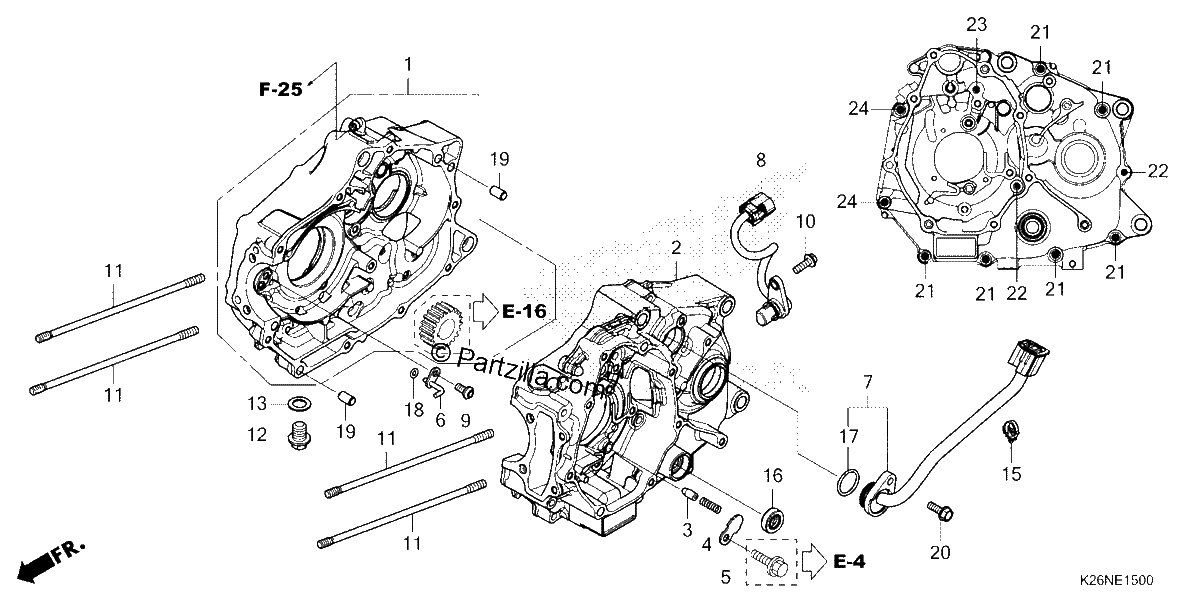

Diagrama de CRANKCASE

Repuestos

#001
11010-K26-G00
CRANKCASE SET, Right.
$203.29¢101 643
1
#002
11200-K26-G00
CRANKCASE, Left
$108.16¢54 079
1
#003
11215-KYZ-900
PLUG, BEARING PUSH
$3.10¢1 553
1
#004
11216-KYZ-900
SPRING, BEARING PUSH
$0.53¢265
1
#005
11218-K26-G00
PLATE, PUSH PLUG
$1.36¢678
1
#006
15201-K1M-T02
JET, PISTON
$5.75¢2 875
1
#007
35759-K26-G11
CONTACT Assembly., CHANGE SWITCH
$52.11¢26 053
1
#008
37700-KVS-F01
SENSOR Assembly., SPEED (NS)
$48.09¢24 047
1
#009
90003-K0J-N00
BOLT, SPECIAL (6X12)
$0.26¢132
1
#010
90004-GHB-640
BOLT, FLANGE (6X18) (NSHF)
$3.36¢1 679
1
#011
90031-KYY-900
BOLT, CYLINDER STUD
$5.12¢2 559
1
#012
90131-896-650
BOLT, DRAIN PLUG (12X15)
$4.50¢2 248
1
#012
90131-883-000
BOLT, DRAIN PLUG (12X15)
$4.50¢2 248
1
#013
90407-259-000
GASKET, DRAIN PETCOCK (12.5X20)
$3.36¢1 679
1
#015
90684-ZA0-601
CLIP, HARNESS
$3.36¢1 679
1
#016
91208-KWB-601
OIL SEAL (11.6X22X7)
$1.75¢874
1
#017
91301-HP2-671
O-RING (21X2.4)
$2.75¢1 374
1
#018
91305-K0J-N00
O-RING (3.8X1.4)
$0.26¢132
1
#019
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#020
95701-06018-00
BOLT, FLANGE (6X18)
$1.92¢960
1
#021
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
#022
96001-06050-00
BOLT, FLANGE (6X50)
$2.56¢1 282
1
#023
96001-06060-00
BOLT, FLANGE (6X60)
$2.56¢1 282
1
#024
96001-06070-00
BOLT, FLANGE (6X70)
$2.32¢1 162
1
