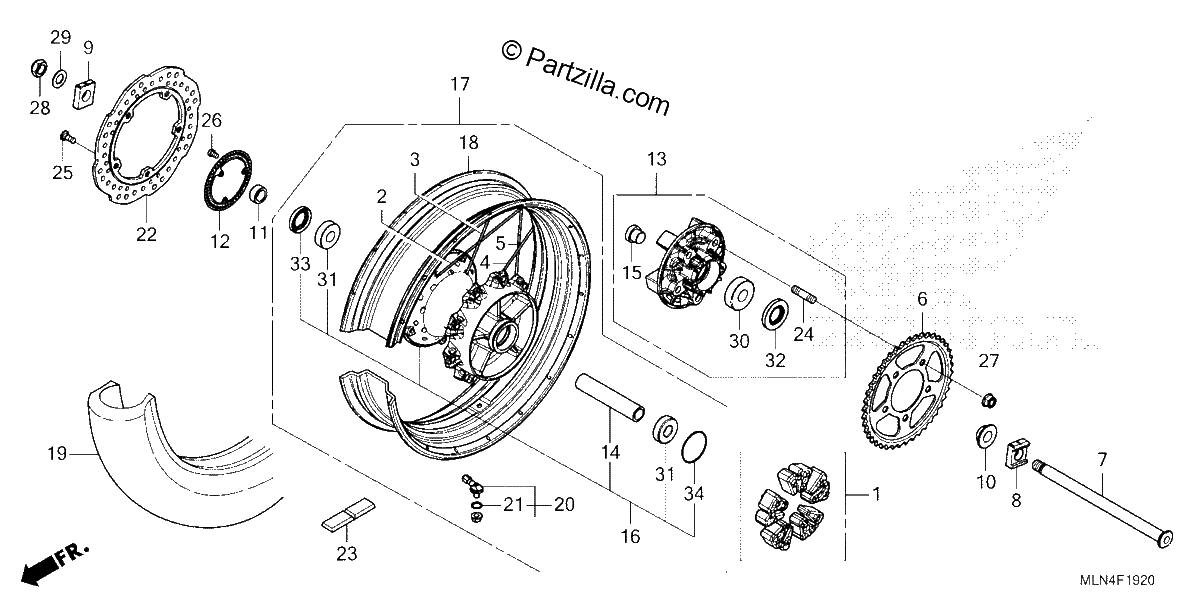

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$50.35¢25 175
#002
SPOKE SET A, RR. (R. OUTSIDE)
$7.67¢3 838
#003
SPOKE SET B, RR. (R. INSIDE)
$7.67¢3 838
#004
SPOKE SET C, RR. (L. OUTSIDE)
$7.67¢3 838
#005
SPOKE SET D, RR. (L. INSIDE)
$7.67¢3 838
#006
SPROCKET, FINAL DRIVEN (42T)
$89.01¢44 506
#007
AXLE, RR. WHEEL
$64.75¢32 375
#008
COLLAR, L. RR. AXLE
$39.08¢19 538
#009
COLLAR, R. RR. AXLE
$33.66¢16 831
#010
COLLAR, L. RR. WHEEL SIDE
$27.31¢13 656
#011
COLLAR, RR. BRAKE SIDE
$18.14¢9 069
#012
RING, RR. PULSER
$57.05¢28 525
#013
FLANGE SUB-Assembly., FINAL DRIVEN
$219.40¢109 700
#014
COLLAR, RR. AXLE DISTANCE
$42.24¢21 119
#015
COLLAR B, RR. WHEEL DISTANCE
$21.38¢10 688
#016
HUB SUB-ASSY., RR.
$833.88¢416 938
#017
WHEEL SUB-Assembly., Rear.
$1312.05¢656 025
#018
RIM, RR. WHEEL
$533.44¢266 719
#019
TIRE, RR. (150/70R18 M/C 70H) (MICHELIN)
$250.15¢125 075
#020
VALVE ASSY., CLAMP IN
$19.25¢9 625
#021
O-RING
$1.96¢981
#022
DISK, RR. BRAKE
$398.59¢199 294
#023
WEIGHT, BALANCE (10G)
$3.91¢1 956
#023
WEIGHT, BALANCE (15G)
$4.68¢2 338
#023
WEIGHT, BALANCE (20G)
$5.22¢2 613
#024
BOLT, STUD (12X25)
$4.86¢2 431
#025
BOLT, DISK (8X20)
$4.76¢2 381
#026
BOLT, TORX (5X8)
$3.65¢1 825
#027
NUT, FLANGE (12MM) (FUSE RASHI)
$4.68¢2 338
#028
NUT, U (18MM)
$8.26¢4 131
#029
WASHER (18X32X2)
$5.42¢2 713
#030
BEARING, RADIAL BALL (6322)
$46.48¢23 238
#031
BEARING, RADIAL BALL (6204UU)
$15.11¢7 556
#032
DUST SEAL (30X56X7.5)
$14.07¢7 038
#033
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#033
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#034
O-RING (55X2)
$3.65¢1 825
