GENERATOR COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

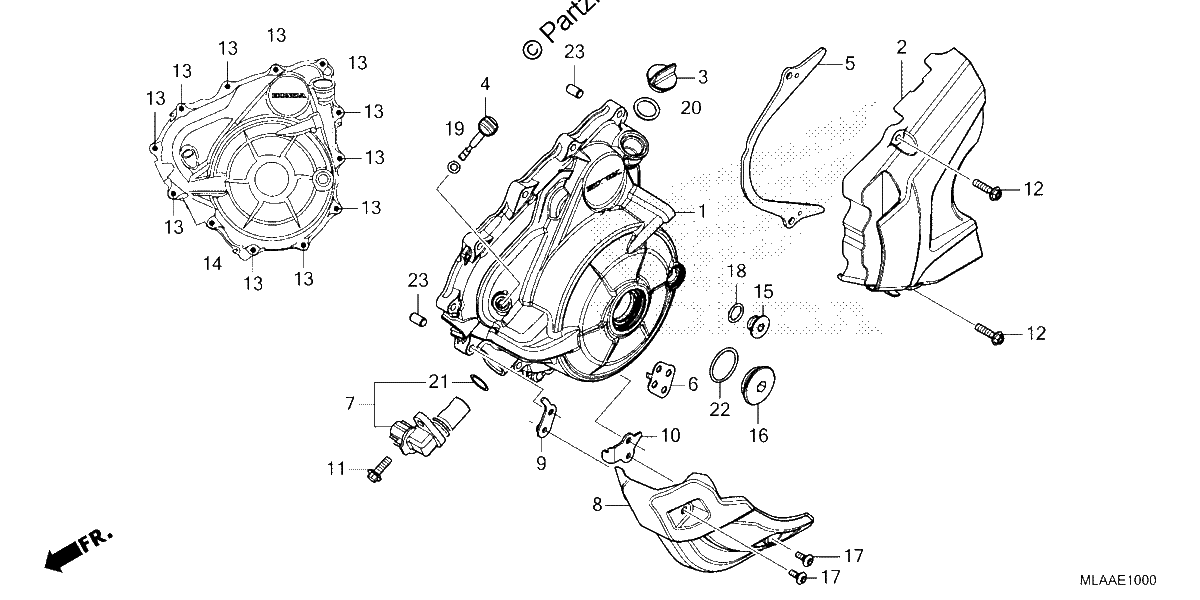

Diagrama de GENERATOR COVER

Repuestos

#001
11320-MLA-A00
COVER, ALTERNATOR
$346.19¢173 094
1
#002
11350-MLA-A00
COVER, L. RR.
$97.69¢48 844
1
#003
15611-KA4-710
CAP, OIL FILLER
$16.71¢8 356
1
#004
15650-MJP-G81
DIPSTICK, OIL
$20.71¢10 356
1
#005
23812-MLA-A00
GUIDE, DRIVE CHAIN
$15.55¢7 775
1
#006
32158-MJM-D00
STAY, HARNESS CLIP
$6.63¢3 313
1
#007
37500-MKT-D02
SENSOR Assembly., CRANK
$69.40¢34 700
1
#008
64401-MLA-A00
COVER, ALTERNATOR CORD
$16.56¢8 281
1
#009
64402-MLA-A00
STAY, Front ALTERNATOR COVER
$5.04¢2 519
1
#010
64403-MJP-G50
STAY, RR. ALTERNATOR COVER
$7.46¢3 731
1
#011
90026-GHB-650
BOLT, FLANGE (6X18)
$2.88¢1 438
1
#012
90026-GHB-680
BOLT, FLANGE (6X25)
$2.81¢1 406
1
#013
90026-GHB-690
BOLT, FLANGE (6X28)
$2.81¢1 406
1
#014
90026-GHB-740
BOLT, FLANGE (6X40)
$3.08¢1 538
1
#015
90084-MN8-010
CAP (14MM)
$14.88¢7 438
1
#016
90087-MJP-G50
CAP (30MM)
$21.64¢10 819
1
#017
90112-MLA-A00
SCREW, PAN (5X13)
$3.65¢1 825
1
#018
91303-377-000
O-RING (13.8X2.5)
$4.15¢2 075
1
#019
91303-MJ0-003
O-RING (6.3X2.3) (ARAI)
$4.91¢2 456
1
#020
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#021
91333-PNC-006
O-RING
$4.24¢2 119
1
#022
91356-425-005
O-RING (29.7X2.4) (NOK)
$3.65¢1 825
1
#023
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
